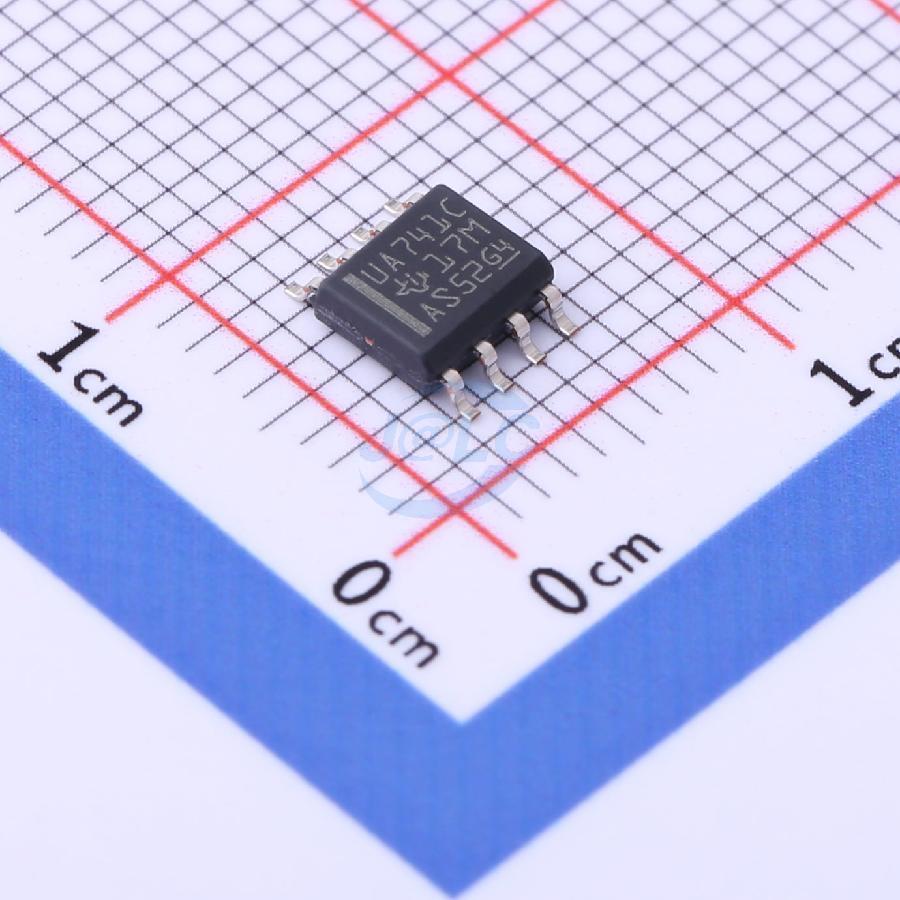

SMD LM741 - UA741 Sop-8 (General-Purpose Operational Amplifier)

LM741 Op-Amp IC Features and Specifications

• LM741 has only one op-amp inside
• Provided short circuit and overload protection.
• Low power consumption.
• Large common mode rejection ratio (CMRR) and differential voltage ranges.
• No external frequency compensation is required.
• Prevent latch-up when the common-mode range is exceeded.
• The minimum, normal, and maximum Power Consumption for this IC is ±10v, ±15v and ±18v respectively.
• The operating temperature should be 0 to 70˚C.
• Supply current 1.7 to 2.8mA.

LM741 Datasheet
