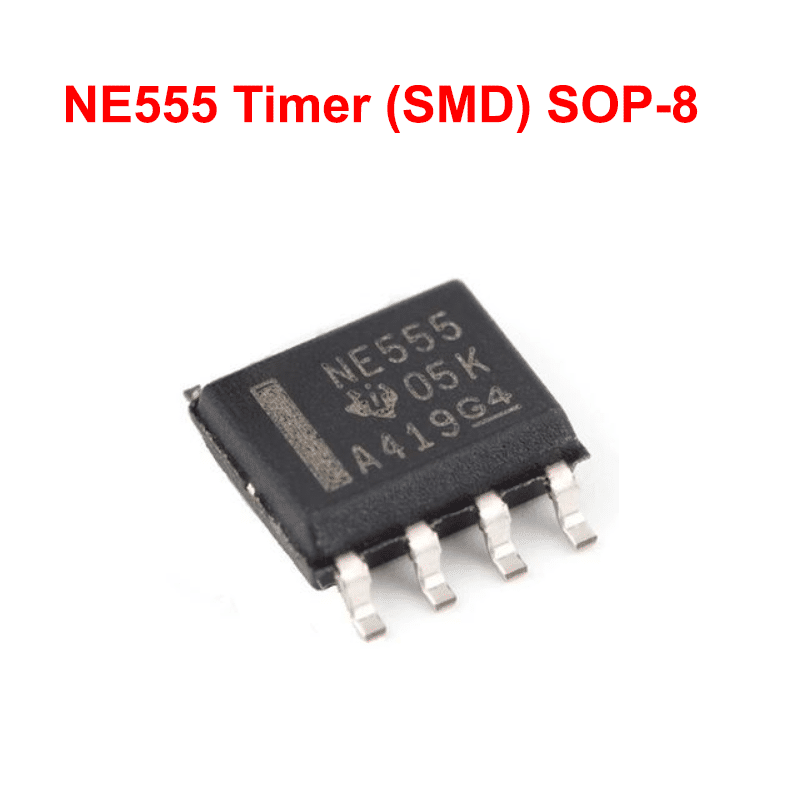

SMD NE555 Sop-8 (Timer IC)

The NE555 is one of the most popular and iconic integrated circuits ever produced. It is a highly stable controller capable of generating precise time delays or oscillations in a variety of applications. In the SOIC-8 surface-mount package, it offers the same functionality as its through-hole counterpart in a compact form factor suitable for modern PCB assembly. The timing is determined by an external resistor-capacitor (RC) network, making it incredibly flexible. It can operate in three main modes: monostable (one-shot pulse generator), a stable (free-running oscillator), and bistable (flip-flop). Known for its robustness, simplicity, and low cost, it is a fundamental building block in electronics for hobbyists and professionals alike.

Features :

• Versatile Operating Modes (Monostable, A stable, Bistable).
• Adjustable Duty Cycle.
• High Output Current Sourcing/Sinking Capability.
• Stable Timing Across Temperature Variations.
• TTL-Compatible Output.
• Can Operate in Wide Supply Voltage Range.

Datasheet NE555
