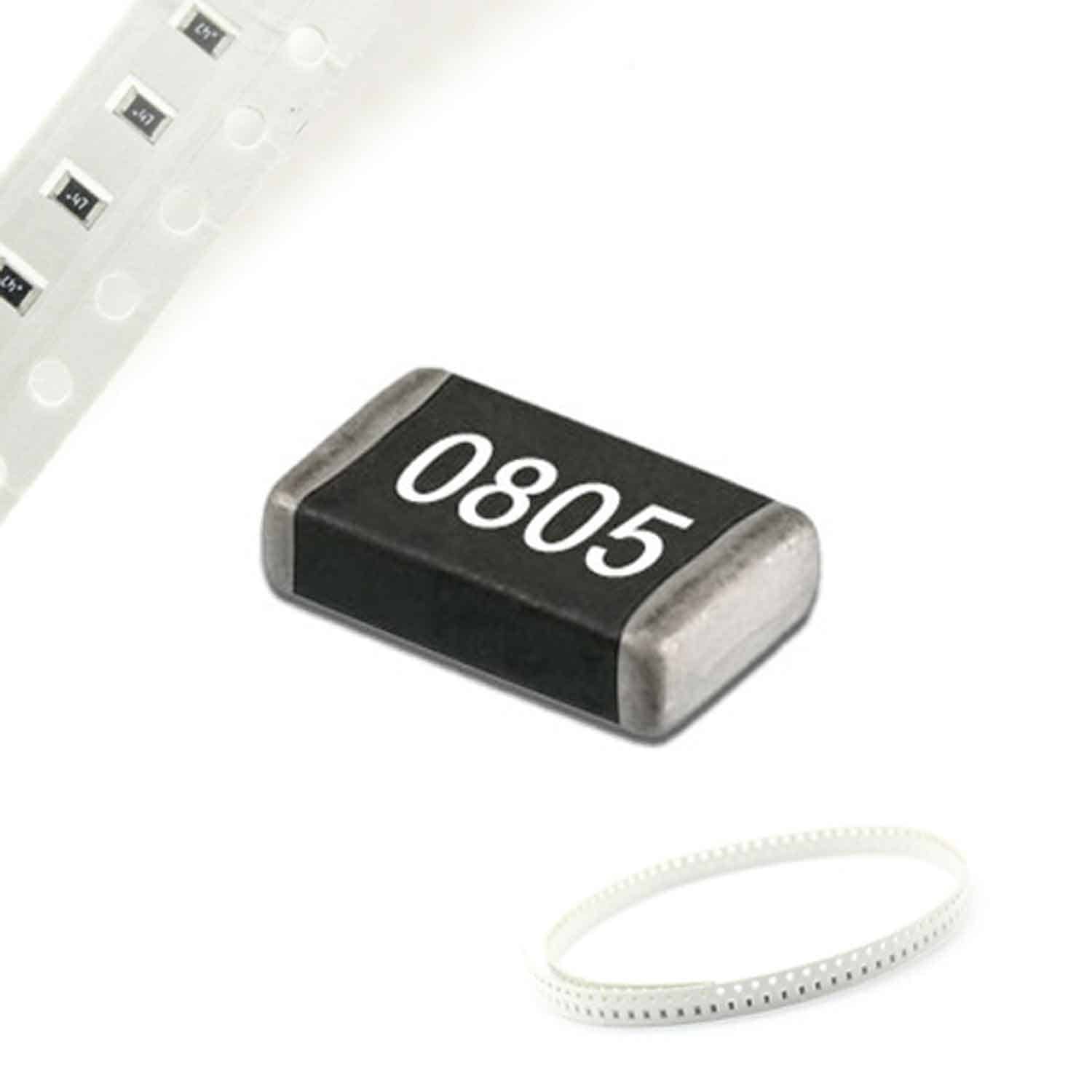

SMD Resistor 1ohm (1R0) (0805) (10pcs)

SMD Resistor 1Ω (1R0) OHM (0805) (10pcs)

The SMD Resistor 1Ω (1R0) OHM (0805) is a surface-mount device (SMD) resistor with a resistance value of 1 ohm (1Ω). It is designed in an 0805 package, commonly used in high-density and compact electronic circuits. The resistor is typically sold in packs of 10 pieces, which makes it suitable for prototyping, small repairs, or production runs.

Key Features:

1. Resistance Value:

• 1Ω (1 ohm).
• The "1R0" code represents the resistance value in the standard 3-digit code format:
• 1 represents the base value (1).
• R is used to indicate a decimal point (rather than a multiplier).
• 0 signifies the multiplier (10⁰), so the resistance is simply 1Ω.

1. Package Size:

• 0805 size: The dimensions of the package are 0.08" x 0.05" (2.0mm x 1.25mm). The 0805 package is a popular size for compact designs where space is constrained.

1. Quantity:

• Supplied in 10 pieces, perfect for small projects or prototyping.

1. Tolerance:

• Typically ±5%, which means the actual resistance can vary by up to 5% from the nominal value of 1Ω. Some manufacturers may offer lower tolerance options.

1. Power Rating:

• 0.125W (1/8 watt), which is typical for 0805 resistors. It's important to ensure that the power rating is sufficient for your application to avoid overheating.

1. Composition:

• Made from materials like metal oxide, carbon film, or thick film, ensuring reliable and stable performance across a range of
