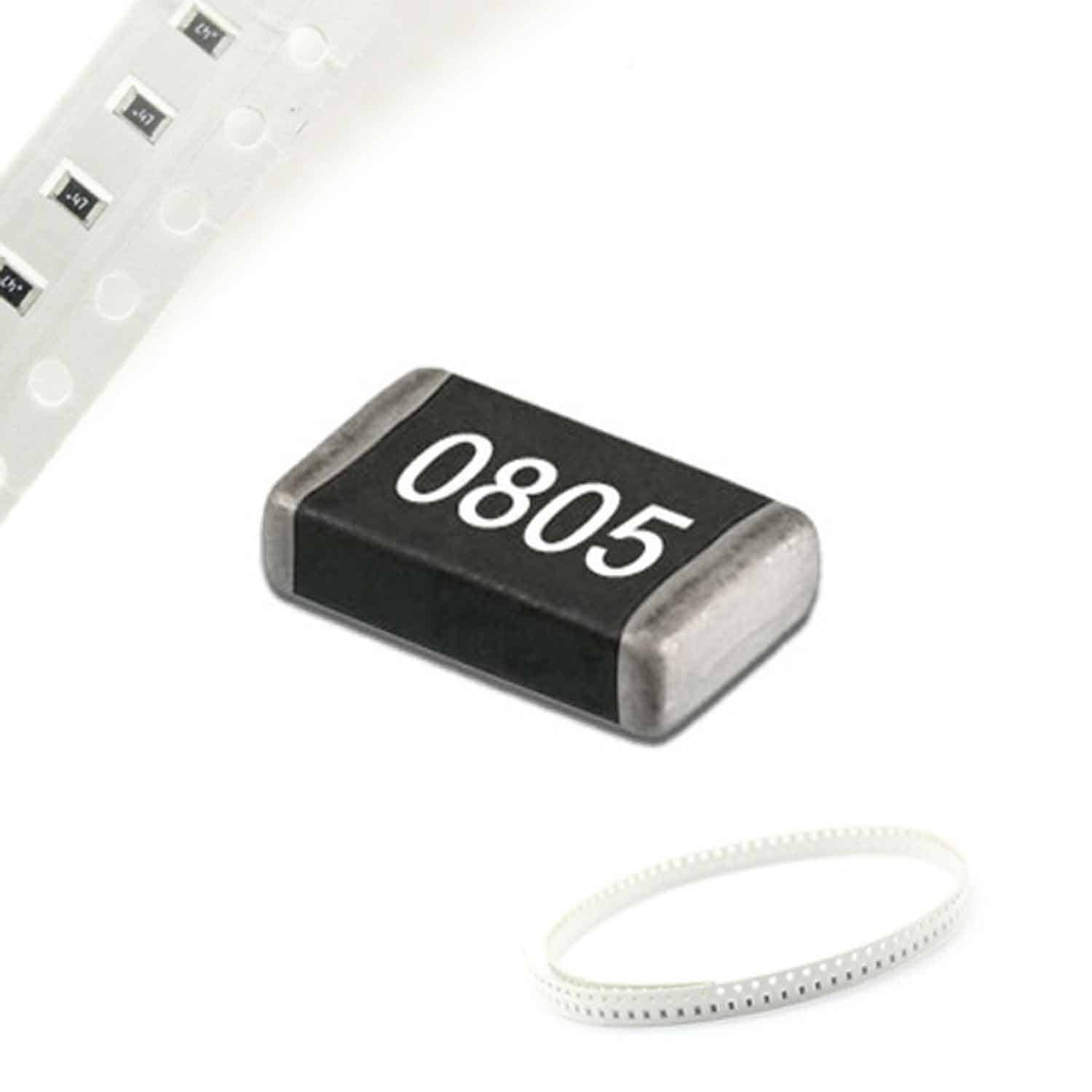

SMD Resistor 220Kohm (224) (0805) (10pcs)

An SMD Resistor 220K (224) OHM (0805) is a surface-mount device (SMD) resistor with a resistance value of 220K ohms (220,000 ohms), typically used in various electronic circuits. This specific resistor is in the 0805 package, which refers to its physical size. The notation 224 is a standard EIA-96 code used for indicating the resistance value of the resistor.

Key Features of SMD Resistor 220K (224) OHM (0805):

1. Resistance Value:

• The resistor has a resistance value of 220K ohms (220,000 ohms). This is indicated by the 224 code printed on the resistor body, where:
• 22 represents the first two digits of the value (22).
• 4 represents the number of zeros to follow (220,000).

1. Package Size (0805):

• The 0805 package size indicates the physical dimensions of the resistor, which are 0.08 inches by 0.05 inches (2.0mm x 1.25mm). It is a relatively small package used for modern compact circuit designs.
• 0805 is one of the most common SMD resistor sizes and is typically used in low to moderate power applications.

1. Power Rating:

• The power rating for this resistor is typically 0.125W (1/8W) . The power rating defines the maximum amount of power that the resistor can dissipate without being damaged.
• For a 220K ohm resistor, this power rating is often sufficient for low-power applications, as the resistor is used to limit or divide voltage in circuits.

1. Tolerance:

• The tolerance of SMD resistors can vary, but for a 220K ohm resistor, common tolerances are 5%, . Tolerance indicates how accurately the resistor will maintain its specified resistance value.
• For example, if the resistor has a 1% tolerance, the actual resistance could range between 217.8K ohms and 222.2K ohms.

1. Material:

• The resistor is usually made of metal oxide, carbon film, or thin-film materials. These materials are designed for reliable operation in modern electronic circuits.
• Metal oxide resistors tend to be more stable over time and temperature variations, making them suitable for precision applications.

1. Maximum Voltage Rating:

• The maximum voltage across the resistor is typically 200-250V, depending on the manufacturer and the specific resistor model. Exceeding this voltage could damage the resistor and lead to failure.
