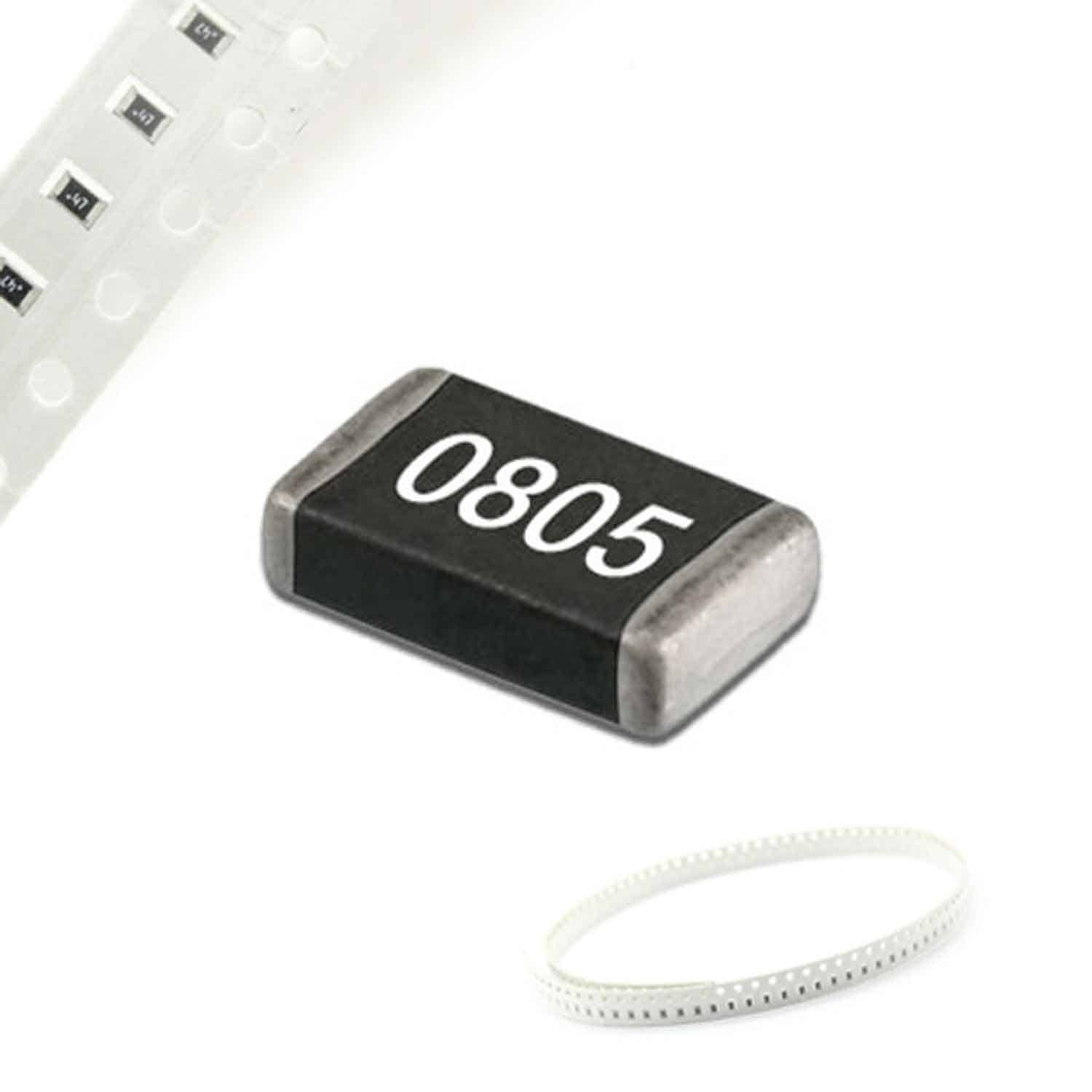

Name: SMD Resistor 30Kohm (303) (0805) (10pcs)
SKU: woo-15247
Price: 2 EGP
Availability: InStock

Description

🔩 SMD Resistor – 30kΩ (303), 0805 Package

(Standard Thick Film Chip Resistor – 10 pcs pack)

📌 General Description

This is a surface-mount resistor with a resistance of 30kΩ, coded as 303 (which stands for 30 × 10³ = 30,000Ω), in the 0805 footprint. It's typically used in signal conditioning, voltage dividers, pull-up/down configurations, and general-purpose electronics.

⚙️ Key Specifications

Specification	Value
Resistance	30kΩ (30,000 ohms)
Resistance Code	303
Package Size	0805 (2.0mm × 1.25mm)
Tolerance	±1% (default), ±5% (some types)
Power Rating	1/8W (125mW) typical
Temperature Coefficient	±100ppm/°C to ±200ppm/°C
Operating Temperature	-55°C to +155°C
Material	Thick film (most common)
Mounting Type	Surface Mount (SMD)
RoHS Compliant	Yes

📦 Physical Dimensions – 0805

Dimension	Size (mm)
Length	2.0 mm
Width	1.25 mm
Height	~0.55 mm

🧪 Typical Applications

Voltage dividers
Biasing and feedback networks
Microcontroller I/O pull-ups/pull-downs
Signal filtering with capacitors
LED current limiting (low-power LEDs)

✅ Advantages

Compact footprint (good for dense PCBs)
Precise resistance for signal processing
Reliable and low-cost
Standard code marking makes ID easy (303 = 30k)

⚠️ Design Tip

Keep total power dissipation under 125mW for 0805.
For high-accuracy applications, check tolerance and temperature coefficient.
Always double-check resistor codes — "303" is 30kΩ, not 3kΩ or 300Ω 😉
