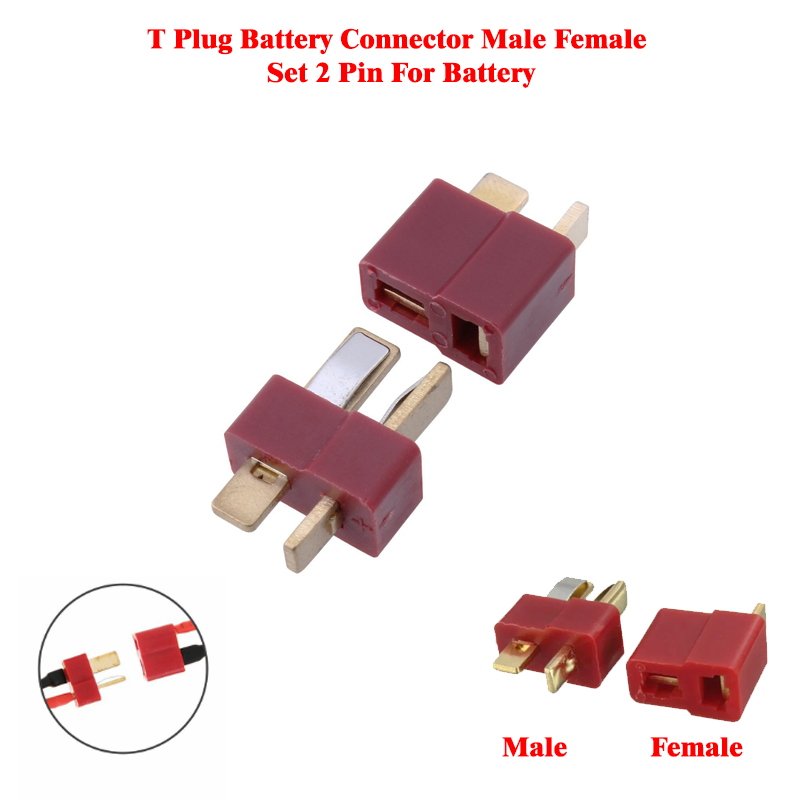

T Plug Battery Connector Male Female Set 2 Pin For Battery

• The T-Type Battery Connector Set includes both male and female connectors designed for high-current applications.
• Supports high-current loads, typically up to 60A continuous current.
• Constructed from high-quality, heat-resistant nylon or polycarbonate, ensuring longevity and reliability.
• Resists deformation and wear under heavy usage.
• T-shaped design provides a firm and stable connection between male and female parts and prevents accidental disconnections.
• Low Electrical Resistance.
• Small and lightweight, suitable for portable and space-constrained applications.
• Solder terminals make it easy to connect wires securely.
• Clear polarity markings help prevent reverse connection errors.
• Designed to be flame retardant for added safety during high-current operations.
• The T-Type Battery Connector is a widely used in RC vehicles, drones, battery packs, and other electronics requiring reliable power transfer.
• Compatible with LiPo batteries, NiMH batteries, and other battery types..

Specifications:

• Connector Type: T-Type Battery Connector
• Gender: Male + Female
• Color: Red
• Number of pins: 2 Pin
• Rated Voltage(DC): 500 V
• Rated Current: 30 A
• Instantaneous Current: 60 A
• Contact Resistance: ≤ 0.5mΩ
• Insulation Resistance: ≥ 1000MΩ
• Recommended Wire Compatibility: 12AWG
• Housing Material: Nylon (Heat-resistant)
• Contacts Material: copper plated
• Operating Temperature Range: -20°C to +120°C
• Heat Resistance: Ensures no deformation under high current loads.
• Connection Type: Snap-fit with tight tolerances to ensure a secure connection.
• Solder Cup Dimensions: Large enough for easy soldering and secure wire attachment.
