TSP3H150S SMD Schottky Diode (150V, 3A)

Description:

Schottky Diode TSP3H150S

Part Number: TSP3H150S

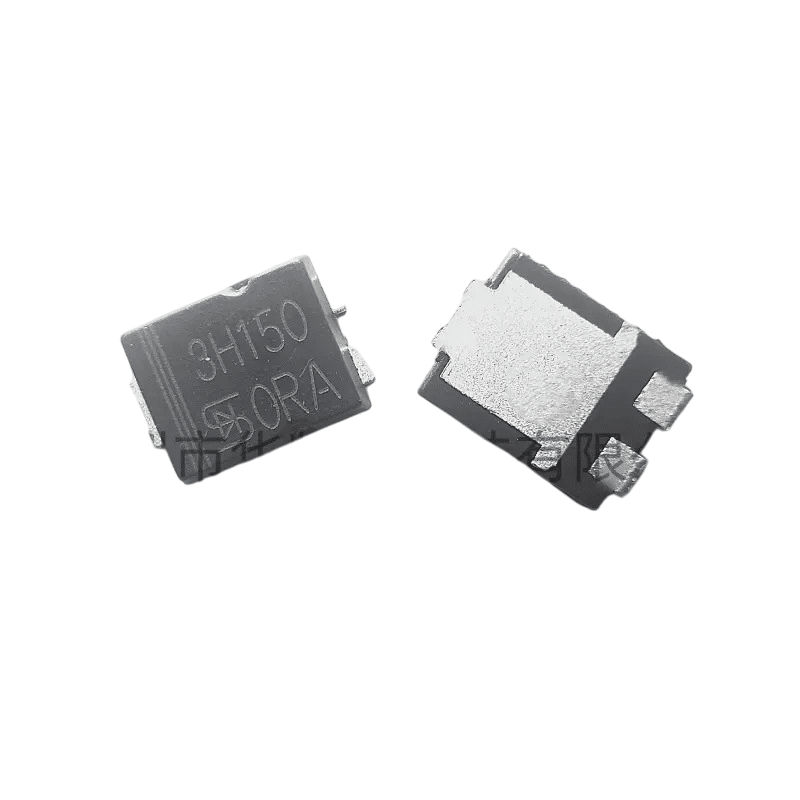

Marking code:  3H150 8XA

Manufacturer:  Taiwan Semiconductor

Product category:  Schottky diodes and rectifiers

RoHS: Details

Product:  Schottky Rectifiers

Mounting style:  SMD/SMT

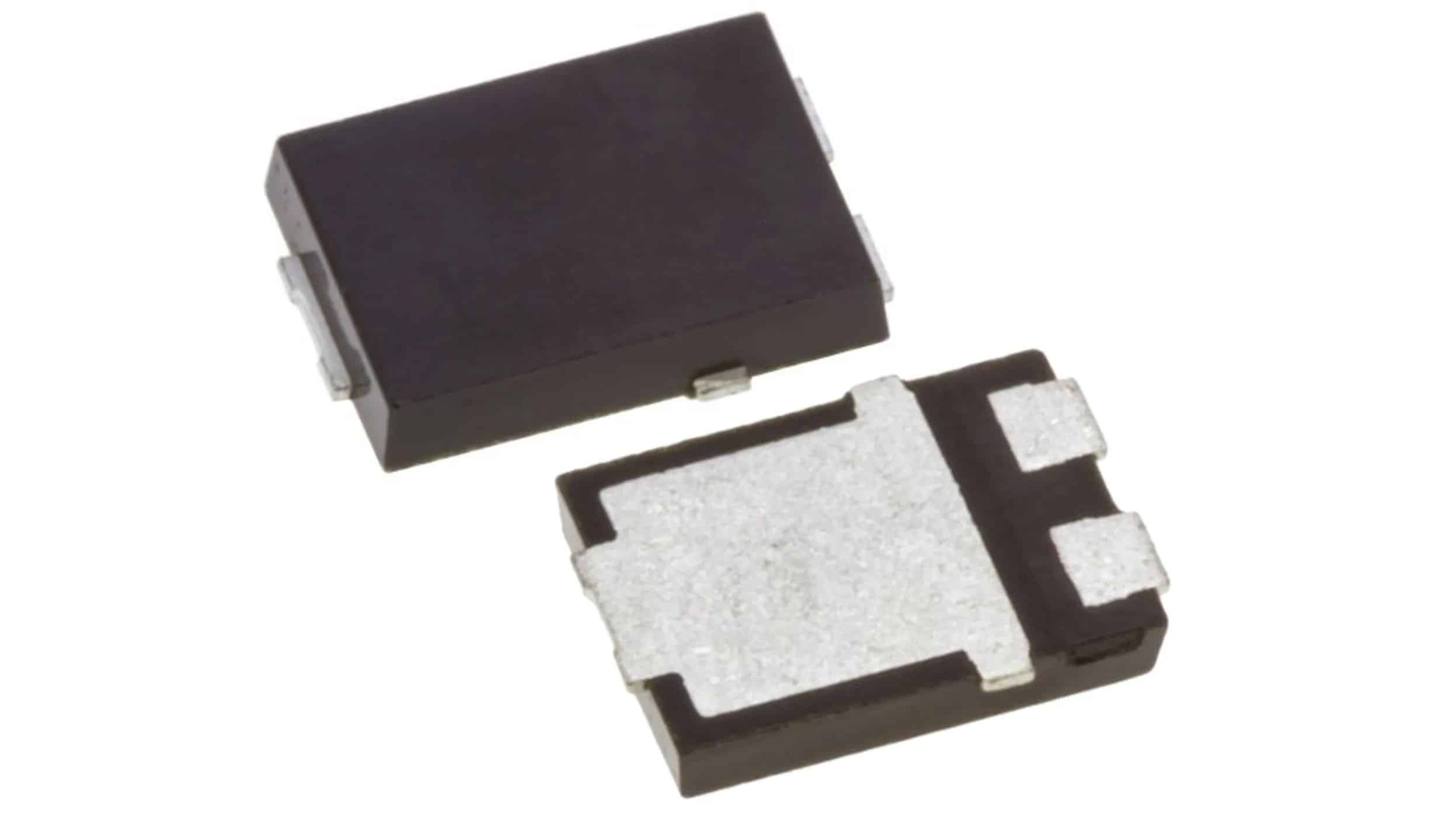

Enclosure / Cabinet:  TO-277A-3

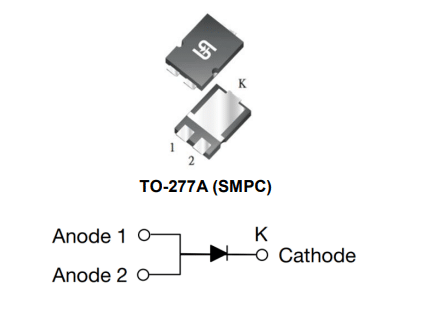

Configuration:  Dual Common Anode

Technology:  Yes

If - Direct current:  3 A

Vrrm - Repetitive reverse voltage:  150 V

Vf - Forward voltage:  770 mV

Ifsm - Forward surge current:  90 A

Ir - Reverse current:  1 uA

Minimum operating temperature:  -55°C

Maximum operating temperature:  +150°C

Brand:  Taiwan Semiconductor

Product Type:  Schottky Diodes & Rectifiers

Subcategory:  Diodes & Rectifiers

Vr - Reverse voltage:  150 V

Datasheet :

https://www.rxelectronics.ro/datasheet/fc/tsp3h150s-s1g.pdf
