Description

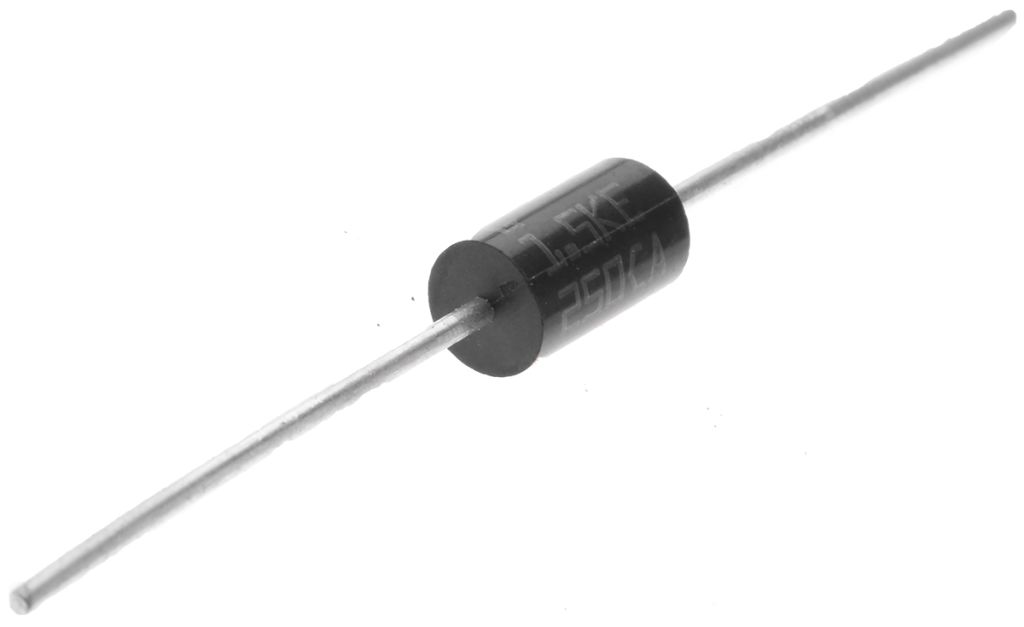

Bidirectional Transient Voltage Suppressors ( 250V )

The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.

General Features :

1500W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
Glass passivated chip junction in DO-201 Package
Fast response time: typically less than 1.0ps from 0 Volts to BV min
Excellent clamping capability
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2
EFT protection of data lines in accordance with IEC 61000-4-4
Low incremental surge resistance
Typical IR less than 1μA when VBR min>12V
High temperature to reflow soldering guaranteed: 260°C/40sec / 0.375”,(9.5mm) lead length, 5 lbs., (2.3kg) tension
VBR @ TJ = VBR@25°C x (1+αT x (TJ – 25)) (αT:Temperature Coefficient, typical value is 0.1%)
Plastic package is flammability rated V-0 per Underwriters Laboratories
Matte tin lead–free plated
Halogen free and RoHS compliant
Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD- 609A.01)

Features For 1.5KE250CA :

Direction Type:Bi-Directional
Diode Configuration:Single
Maximum Clamping Voltage:442V
Minimum Breakdown Voltage:237V
Mounting Type:Through Hole
Package Type:DO-201
Maximum Reverse Stand-off Voltage:213V
Pin Count:2
Peak Pulse Power Dissipation:1500W
Maximum Peak Pulse Current:23A
Number of Elements per Chip:1
Minimum Operating Temperature:-65 °C
Maximum Operating Temperature:+175 °C
Dimensions:9.5 x 5.3 x 5.3mm
Length:9.5mm
Height:5.3mm
Maximum Reverse Leakage Current:1μA
Width:5.3mm
Test Current:1mA

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
