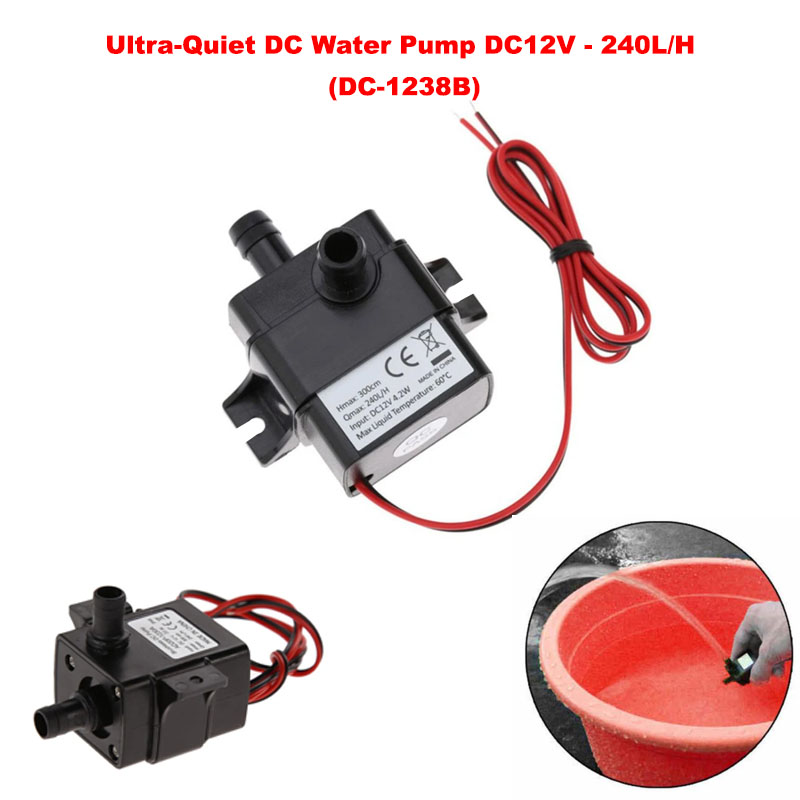

Ultra-Quiet DC Water Pump DC12V - 240L/H (DC-1238B)

Product Description

1. Quiet work: With our pumps, you can drain quickly and quietly without causing disturbance.

2.The pump has the function of overload and overheating protection, less noise, higher speed, safer and more reliable operation.

3. Multi-purpose application: It is very versatile and can be used in motorhomes, boats, yachts, agricultural irrigation, long-distance pumping in the yard.

Specification:

Type: Brushless DC water pump

Model: DC-1238B

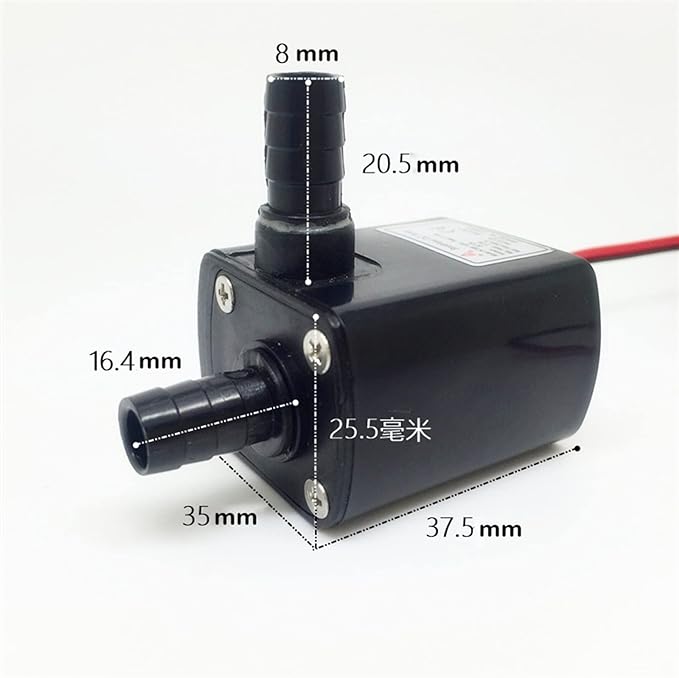

Pump body size: 37.5*35*25.5mm (length*width*height)

Applicable voltage: DC 5V-14V

Rated voltage: DC 12V

Maximum load : 0.35A

Maximum lift: 3 meters (measured 2.5 meters)

Maximum flow rate: 240L/H

Power: 3.6W

Wiring: red wire positive, black wire negative (do not connect the positive and negative poles reversely)

Wire length: about 48cm

Weight: 66g

Outer diameter of water pump outlet/inlet: 8 mm

Drive mode: brushless, magnetic isolation

Usage: continuous use

Use medium: water

Maximum working temperature: 60

Waterproof level: diving use

Life: >30000 hours

Power supply: mobile phone charger, solar panel, battery, power adapter, power module, etc.

Note for use: DC brushless water pump, the positive and negative poles cannot be reversed, the red wire is connected to the positive pole, and the black wire is connected to the negative pole

Protection function: water shortage protection, idling protection, locked-rotor protection

Water pump features: small size, high efficiency, long life, low noise

No carbon brush, no wear, electronic commutation

Water and electricity isolation, epoxy resin potting, completely waterproof, anti-leakage

Very mini DC brushless water pump, rated voltage 12 volts, 5 to 14 volts can be driven, very convenient, safer and more energy-saving

Video :

https://www.youtube.com/watch?app=desktop&v=AyjRRPSmyZg
