USB Type B - 5Pin Female Connector DIP Pin For PCB

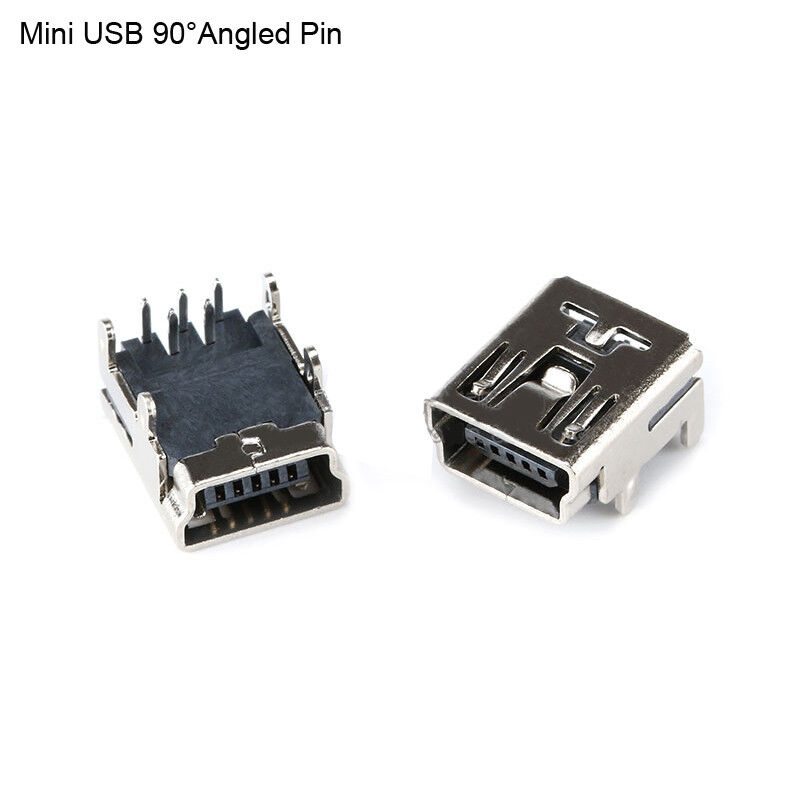

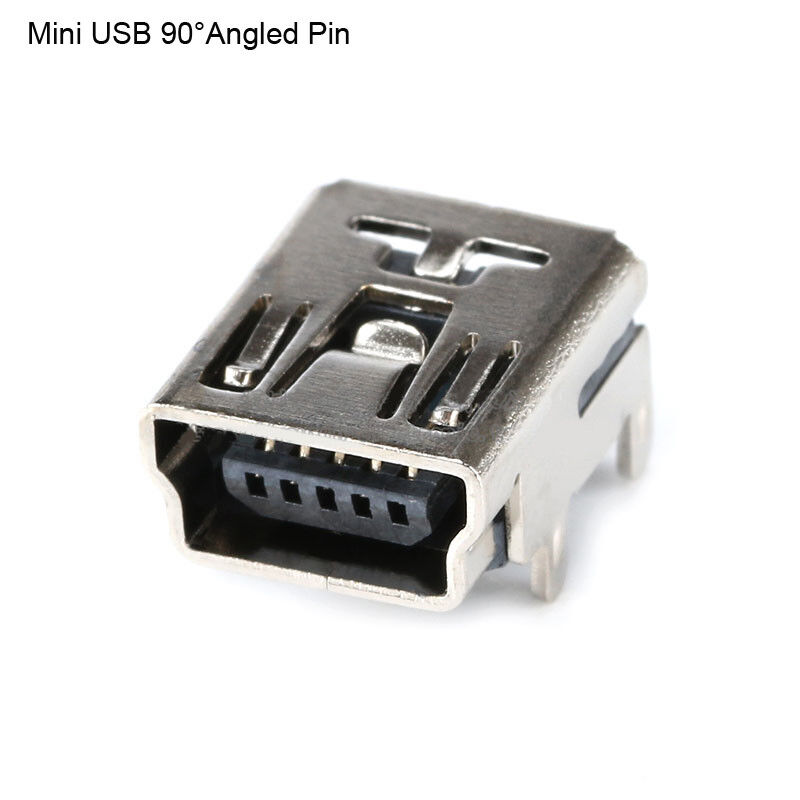

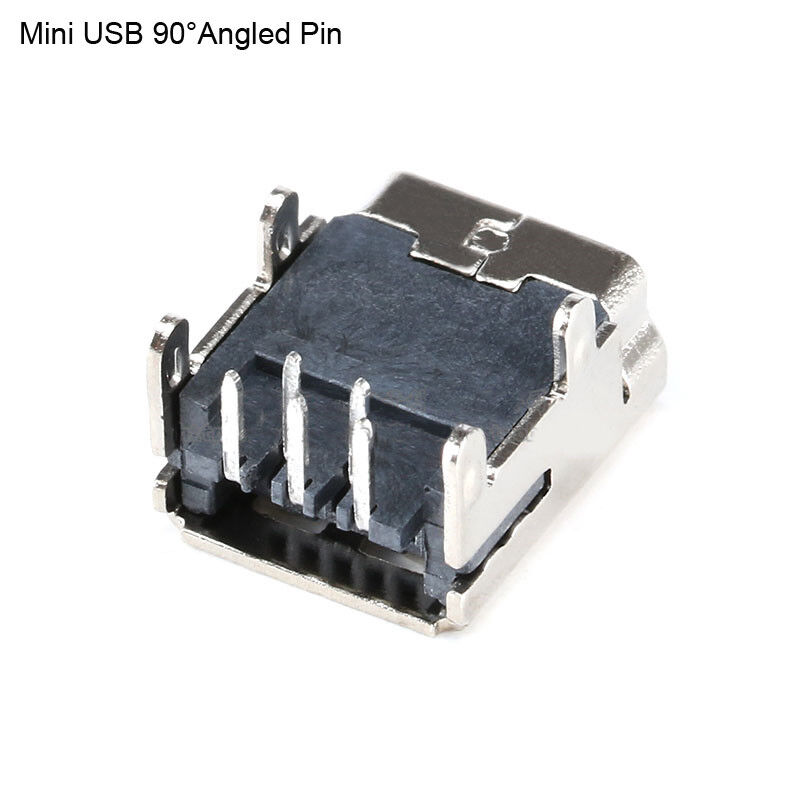

Female Mini-B USB Connector Right-Angle 5Pins Dip Solder

This durable Mini USB Type‑B receptacle offers a reliable interface for USB 2.0 data (480 Mbps) and power (up to 1 A) in compact electronic devices. Featuring a through‑hole DIP design with 5 pins and robust metal housing, it resists over 5000 insertions and ensures secure PCB mounting for board-level USB implementations.

Features

• USB 2.0 compliant with data rates up to 480 Mbps.
• Rated for up to 1.5 A current and 30 V DC voltage.

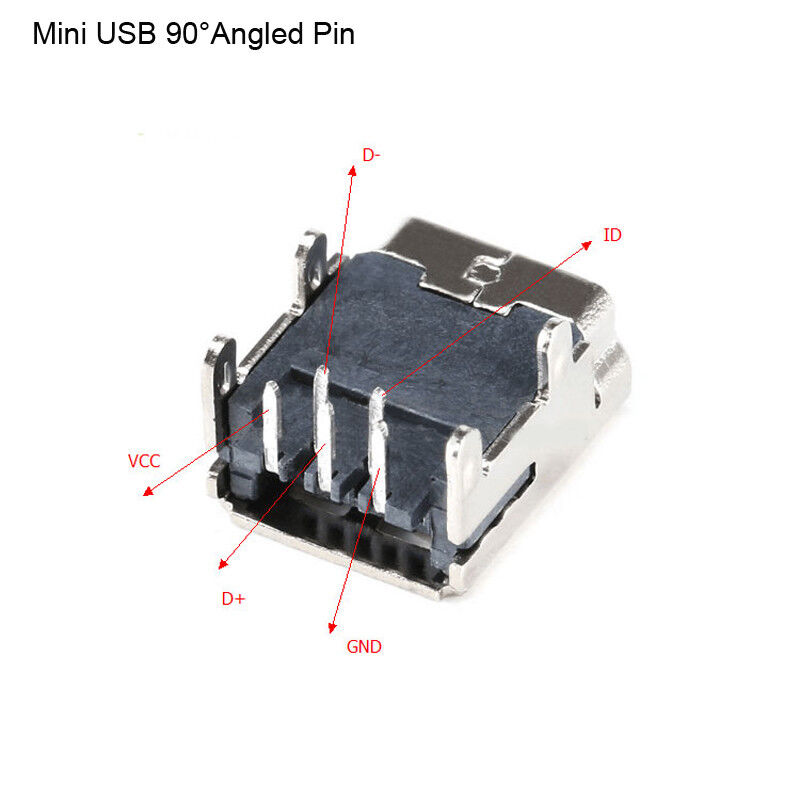

• Five-position receptacle (V_BUS, D−, D+, ID, GND) per USB mini‑B standard.
• Rated for at least 5000 mating cycles for long-term reliability.

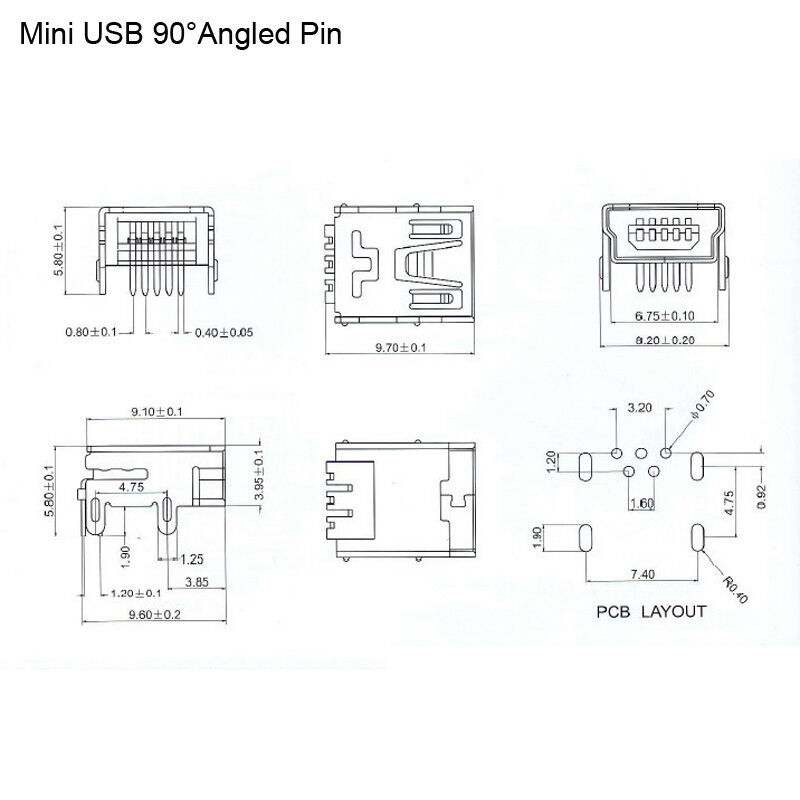

• Through-hole DIP package for easy solder and strong board retention.
• Metal shell provides mechanical robustness and EMI protection.
