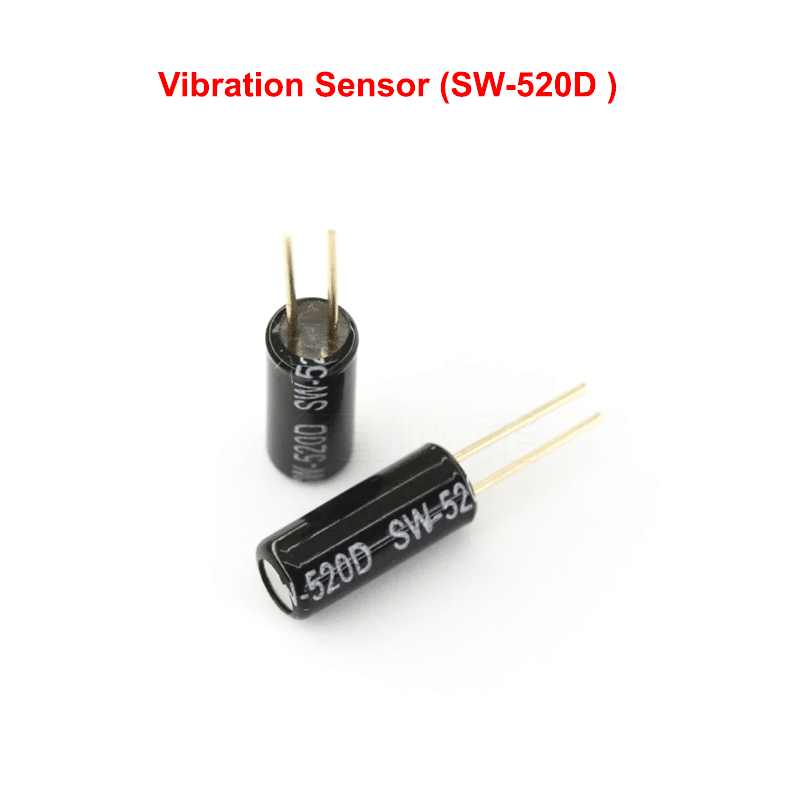

Vibration Sensor Metal Ball Tilt Switch (SW-520D )

Description

This SW-520D Vibration Sensor Metal Ball Tilt Switch is sealed in shrink tubing to avoid short circuits. One end of the sensor has two conductive elements (poles). When the sensor is oriented so the leads are downwards, the mass rolls onto the poles and shorts them, acting as a throw switch. While not as precise or flexible as a full accelerometer, roller ball tilt switches can detect motion or orientation simply. Accelerometers, on the other hand, output digital or analog voltage that must then be analyzed with extra circuitry.

Application:

1. Security devices
2. Toys
3. Electronic scales

Features:

1. Switch closes when leads are pointed down
2. The maximum current of 30mA
3. Contact rating up to 20V

Packages Includes:

1 x SW-520D Vibration Sensor Metal Ball Tilt Switch
