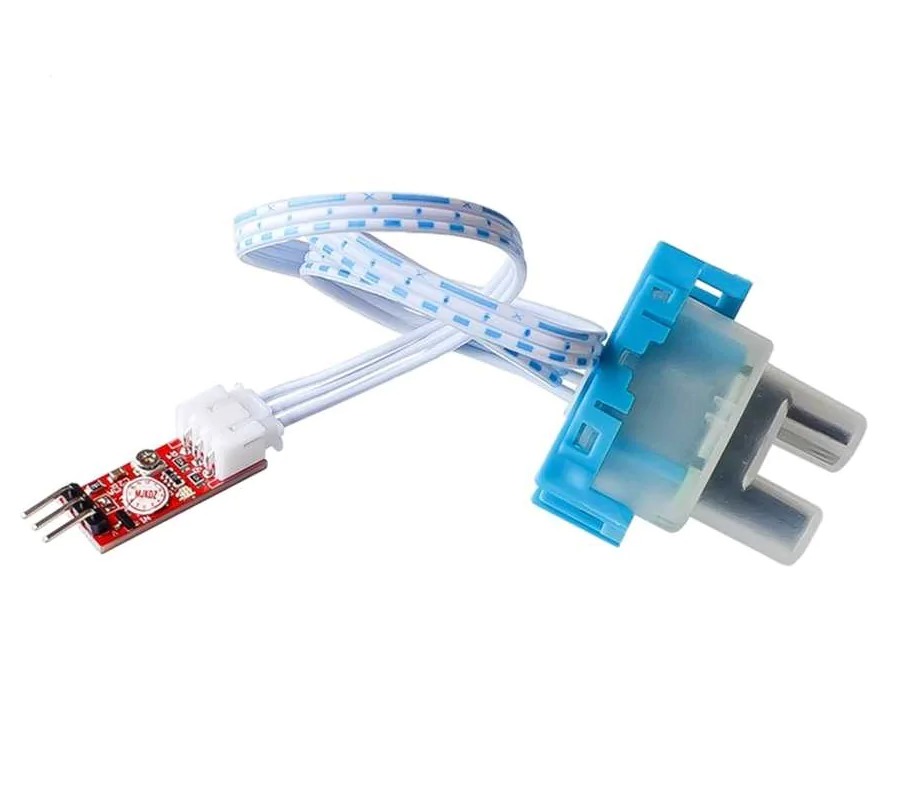

Water Turbidity Sensor Module With Board

The Turbidity Sensor with Board Module is a reliable and efficient tool for measuring the turbidity or cloudiness of liquids, commonly used to assess water quality. This module integrates an optical sensor and signal conditioning circuit on a compact PCB, delivering accurate analog and digital outputs. Its robust design and ease of integration make it ideal for academic, industrial, and environmental monitoring applications.

Features:

• Accurately measures the turbidity of liquids.
• Provides both analog and digital output signals.
• Includes signal conditioning board for direct interfacing.
• Compatible with Arduino and other microcontroller platforms.
• Simple calibration and integration.
• Robust design for stable performance in diverse conditions.
• Analog and Digital Outputs where Supports easy integration with microcontrollers like Arduino, ESP8266, and ESP32.

Specifications

• Board Module:
• Operating Voltage: 5VDC
• Operating Current(MAX): 30mA
• Detection Range: 0%–3.5%（0-4550 NTU）
• Error Range: ±0.5%
• Output mode 1: Analog output 0-4.5V
• Output mode 2: high / low level signal

• Turbidity Probe:

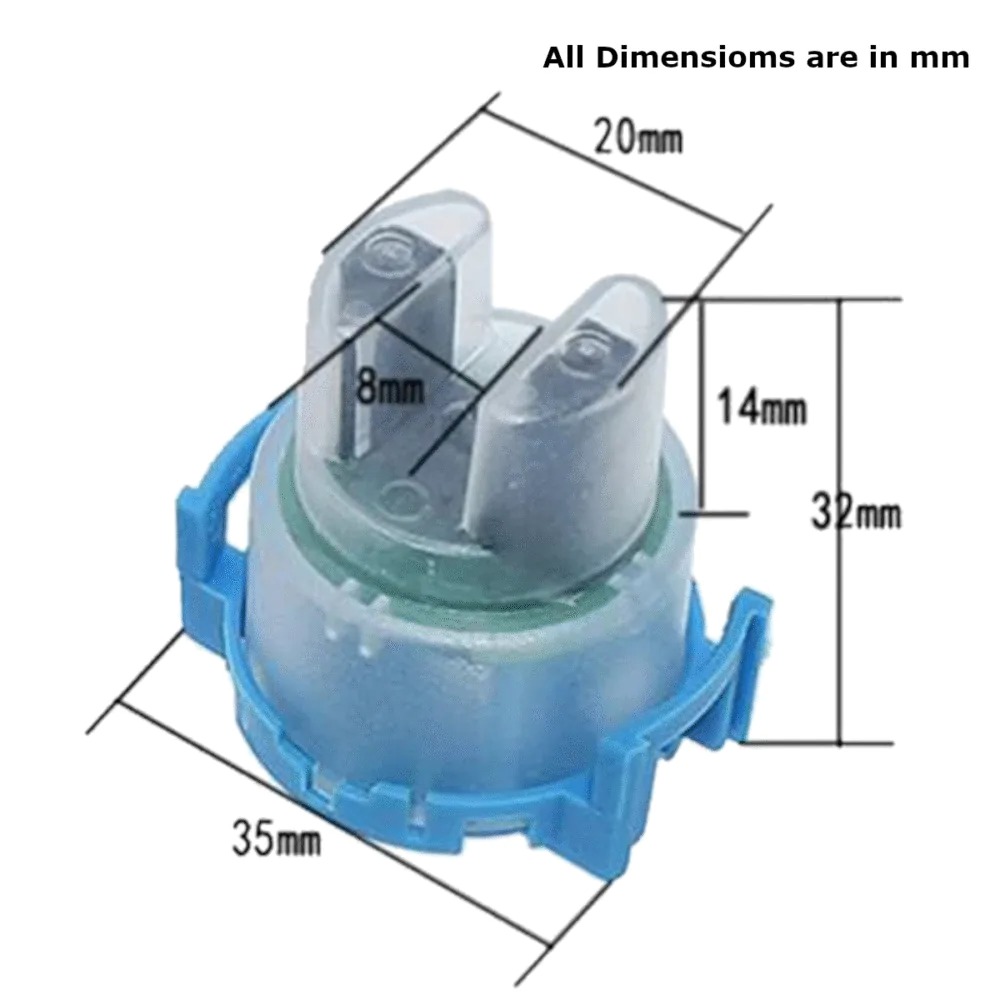

• Total Length: 20cm
• Connection Interface: PH2.0-3P
• Color: White

Application:

• Drinking Water Quality Monitoring.
• Wastewater Treatment.
• Aquariums and Fish Tanks.
• Hydroponics and Agriculture.
• Environmental Water Testing.
• Food and Beverage Industry.
• Boiler and Cooling Systems.
• Medical and Laboratory Use.
• Swimming Pools and Spas.

Package Contents:

• 1x Board Module
• 1x Waterproof Turbidity Probe
