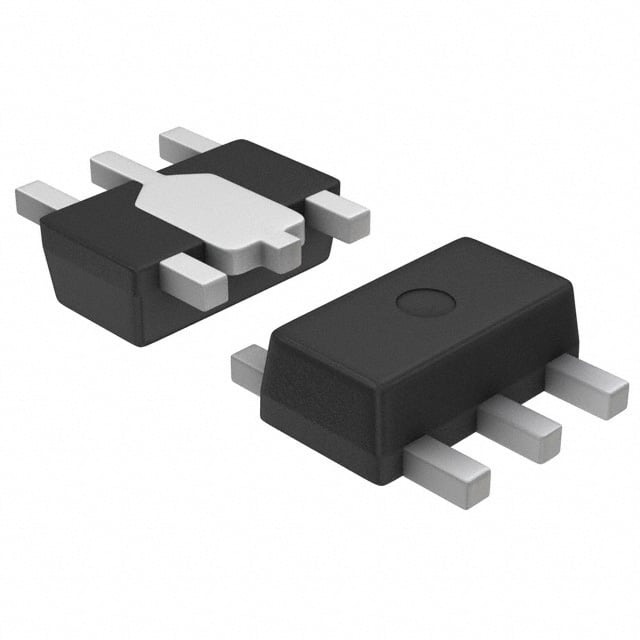

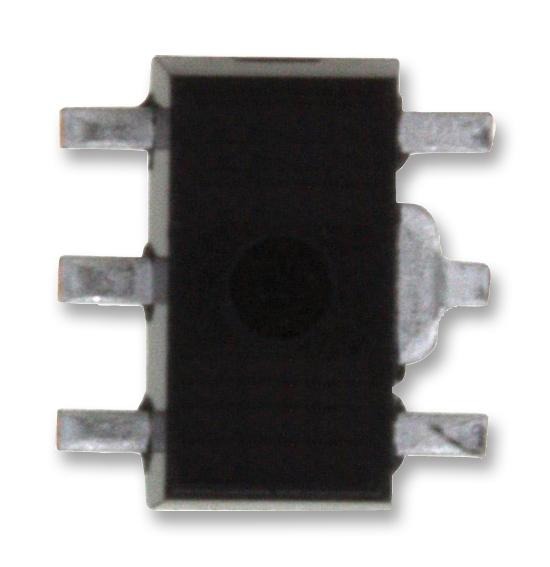

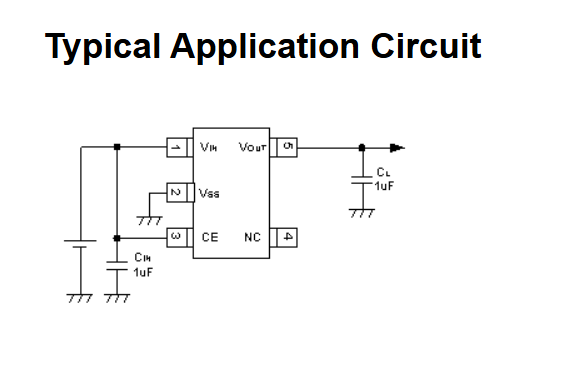

XC6209F252PR-G (LDO Voltage Regulator) SOT-89-5

High Speed LDO Regulators with ON/OFF Control

The XC6209 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 0.9V ~ 6.0V.

The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series.

The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced quiescent current.

Technical specifications

Output Type : Fixed

Input Voltage Max :10V

Output Voltage - Nom :2.5V

Polarity : Positive Output

Dropout Voltage Typ @ Current 220mV

IC Mounting : Surface Mount

No. of Pins : 5Pins

Operating Temperature Max : 85°C

MSL : MSL 1 - Unlimited

Input Voltage Min :2V

No. of Outputs : 1Outputs

Output Voltage Nom : 2.5V

Output Voltage Max -

Max Output Current : 300mA

Dropout Voltage - Typ @ Current : 220mV

IC Case / Package : SOT-89

Operating Temperature Min : -40°C

Product Range : 2.5V 300mA LDO Voltage Regulators

SVHC :No SVHC (25-Jun-2025)
