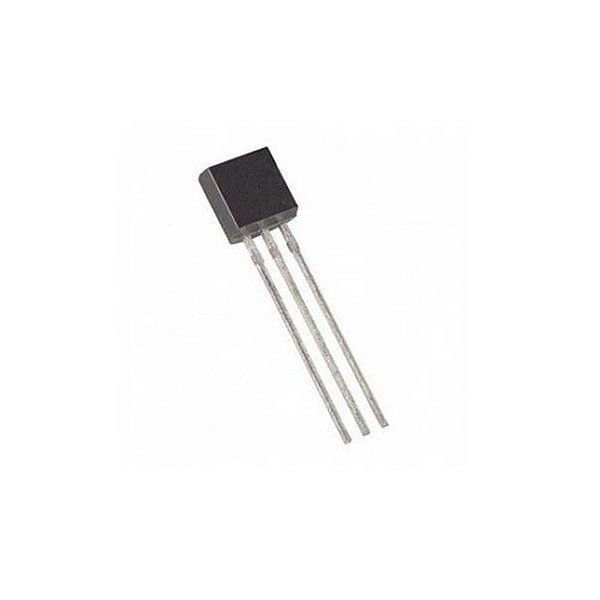

A733 Transistor (PNP, 60V, 150mA)

The A733 is a PNP bipolar junction transistor (BJT) commonly used in low-power amplification and switching applications. It is a small signal transistor and is part of the general-purpose transistor family.

Here are the key features and details of the A733 transistor:

Key Features of A733:

1. Type:
   • PNP transistor: This means that the transistor's majority charge carriers are holes (positive charge), and current flows from the emitter to the collector when the base is driven with a negative voltage.
2. Voltage and Current Ratings:
   • Collector-Emitter Voltage (Vce): -60V
     • The A733 can withstand a maximum voltage of -60V between the collector and emitter terminals without breaking down.
   • Collector Current (Ic): -150mA
     • The maximum current that the transistor can handle is -150mA, which is suitable for low-power applications and signal amplification.
3. Low Power Transistor:
   • The A733 is designed for low-power applications, handling relatively small currents and voltages, making it ideal for use in signal amplification circuits where high power is not required.
4. Current Gain (hFE):
   • The DC current gain (hFE) of the A733 is typically 200 to 800, meaning that it can provide a significant amplification of the input base current at the collector. This makes it suitable for low-power amplification applications.
5. Package:
   • The A733 typically comes in a TO-92 package, which is a small, three-lead package commonly used for small signal transistors. This allows it to be mounted easily on a PCB or used in various circuit designs.
6. Applications:
   • It is most commonly used in low-power amplification and switching applications in consumer electronics and other circuits requiring a small signal transistor. It can also be used in small signal pre-amplifier circuits, biasing applications, and low-power signal processing.

Pin Configuration (TO-92 Package):

The A733 typically comes in the TO-92 package, with the following pin configuration:

• Collector: The current flows from the collector to the emitter when the transistor is on.
• Base: The base controls the transistor's operation. A small current applied to the base can switch the transistor on, allowing a larger current to flow from the collector to the emitter.
• Emitter: The emitter is the terminal through which the current exits the transistor.

Applications of A733:

1. Small Signal Amplification:
   • The A733 is often used in low-power audio amplification and signal conditioning circuits. It can amplify weak signals in radio frequency (RF) and audio applications.
2. Switching Circuits:
   • It is also suitable for switching applications, where it can control relatively low-power components such as relays, small motors, or lights.
3. Pre-Amplifiers:
   • The A733 is used in pre-amplifier circuits, which are essential in audio systems, instrumentation, and sensor circuits where weak input signals need to be amplified before processing.
4. Biasing Circuits:
   • The A733 is used in biasing applications, where it sets the operating point of other transistors or circuits.
5. Signal Processing:
   • The transistor can be used in signal processing applications, such as amplifying analog signals in communication or audio equipment.

Advantages of A733:

1. High Current Gain:
   • The current gain (hFE) of the A733 is high, typically ranging from 200 to 800, which allows for significant amplification of the input signal with a small base current.
2. Low Power Consumption:
   • The A733 is designed for low-power applications, making it suitable for battery-operated devices and low-power systems.
3. Compact and Cost-Effective:
   • The TO-92 package is small and inexpensive, which makes it ideal for applications where size and cost are important factors.
4. Easy to Use:
   • With its relatively low voltage and current requirements, the A733 is easy to use in simple circuits for signal processing, switching, or amplification.

Disadvantages of A733:

1. Low Current Handling:
   • The A733 is limited to a maximum of -150mA of collector current, so it is not suitable for high-power applications where higher currents are required.
2. Lower Voltage Rating:
   • The maximum collector-emitter voltage of -60V is relatively low compared to other transistors, which limits its use in high-voltage circuits.
3. Not Suitable for High-Speed Applications:
   • As a low-power signal transistor, the A733 is not designed for high-speed switching applications, where transistors like FETs or high-speed BJTs would be more suitable.

Conclusion:

The A733 is a PNP Darlington transistor that is well-suited for low-power amplification, switching, and signal processing applications. It provides a good current gain and is commonly used in audio, sensor, and low-power circuits. With a maximum collector-emitter voltage of -60V and a collector current rating of -150mA, it is ideal for low-power designs but is not suitable for high-power or high-voltage applications.

If you need more specific information or have additional questions regarding how to use the A733 in your circuit design, feel free to ask!
