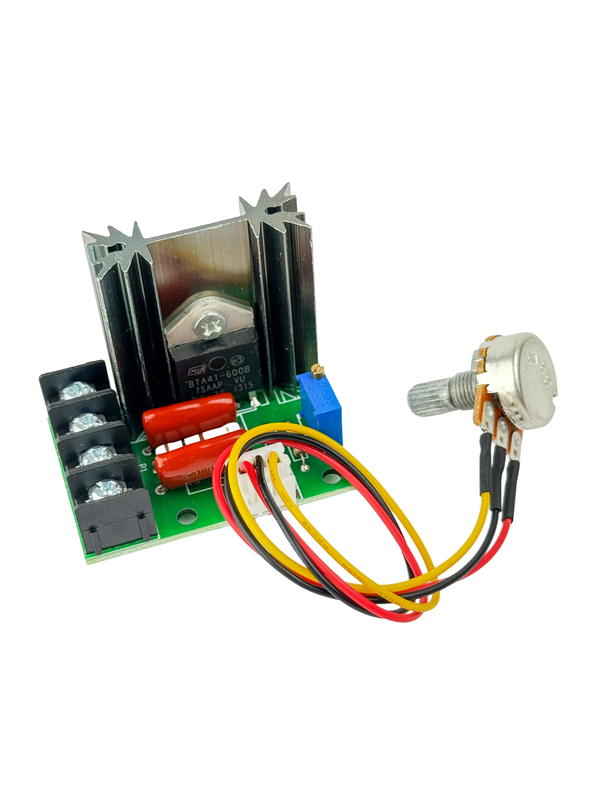

AC Light Dimmer SCR (220V-4000W) and AC Motor Speed Controller Module

Product Description

This is an easy-to-use voltage regulator to control light brightness, speed or temperature. The large power voltage regulator is equipped with two-way silicon controlled rectifier, which is very convenient and practical. The voltage regulator has a large power and can be used for large household or small industrial electrical appliances whose power is less than 4000W (power should be reduced for inductance or capacitance loads).

This controller uses novel bi-directional high-power SCR.

It can be very convenient adjust the current up to 40A, and solve the over current problem of the heating wire resistance is too small in the case of cooling causing good.

The output voltage is adjusted anywhere between 50V-220V for use with electrical appliances.

It can use to such as electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect.

Specifications:

Input Voltage: AC220V (NOT 110V)

Max Power: 4000W

Output Voltage: AC 50V to 220V

The maximum output current :40A

The operation environment temperature:-20C-40C

Size: 48 x 35 x 28 mm / 1.89 x 1.37 x 1.1 in.

Packaging includes:

1 x voltage regulator

Note: The input voltage of this voltage regulator can NOT be 110V.
