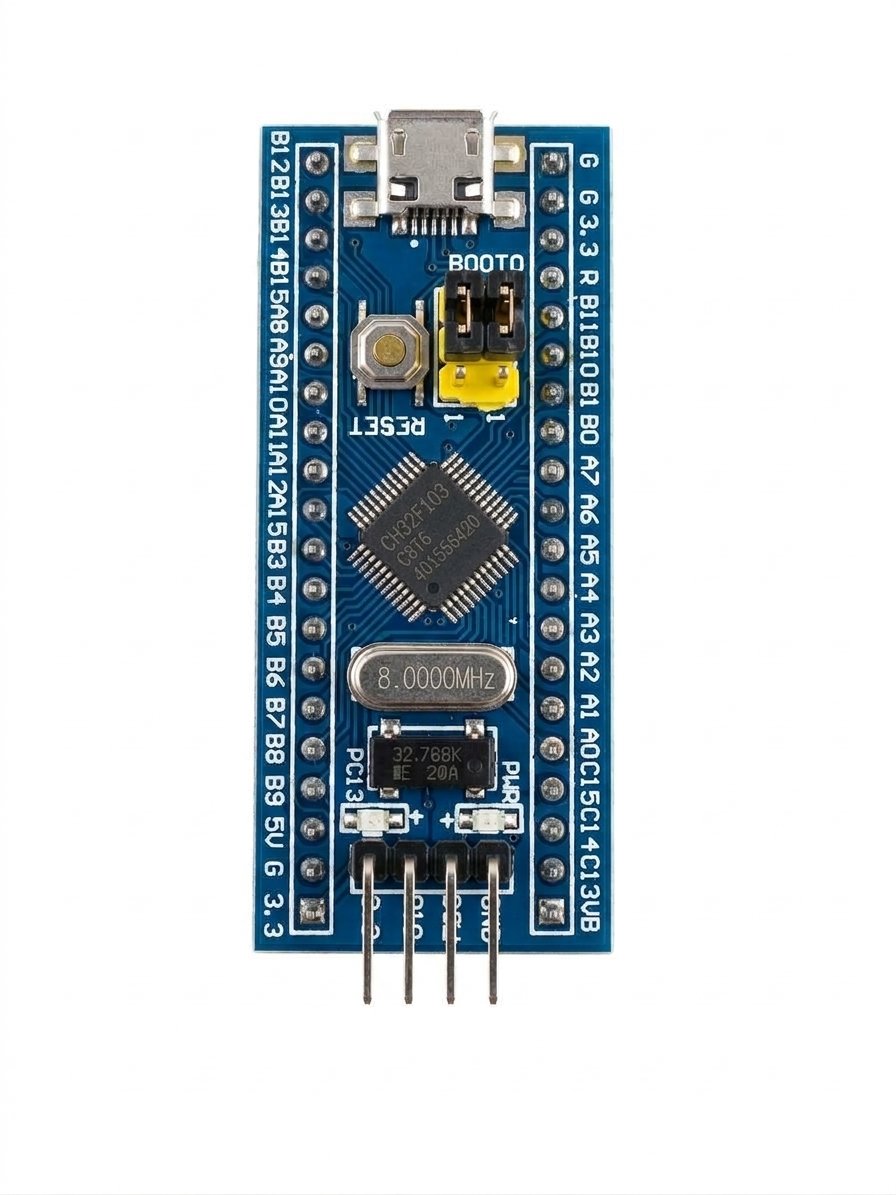

CH32F103C8T6 micro USB development board (chineese version )

Description

TheCH32F103C8T6 development board is equipped with an ARM Cortex-M3 microcontroller with a clock frequency of up to 72MHz and 64KB flash memory. It supports I2C, SPI, UART, and ADC interfaces, which ensures compatibility with a wide range of peripherals. A microUSB connector allows you to connect the board to a computer for programming or data exchange. GPIO pins allow integration with sensors, actuators, and other external modules. The board is programmed via the Arduino IDE or other environments that support STM32. The supply voltage range of 2.0 to 3.6V makes it convenient for portable applications.

Features

• CH32F103C8T6 microcontroller (analogous to STM32F103C8T6) with a clock frequency of up to 72MHz and 64KB of flash memory
• Equipped with a MicroUSB connector that allows you to connect it to a computer or other devices for programming and communication
• The presence of connectors for connecting external devices via GPIO pins allows you to expand functionality and ensure integration with sensors, actuators and other devices
• Supports interfaces such as I2C, SPI, UART, ADC, and others, which provides interaction with various peripherals
• Can be programmed using the Arduino IDE or other development tools that support STM32 microcontrollers

Specifications

• Model: CH32F103C8T6
• Core: ARM Cortex-M3
• Debugging mode: SWD
• Operating frequency: 72MHz
• Program memory: 64KB
• Data memory: 20KB
• Power supply voltage: 2.0-3.6V
• Quartz resonator: 8MHz and 32768kHz
• Connectors: microUSB for board power supply and communication with a computer (for programming after bootloader is filled)
• Dimensions: 54*23mm
