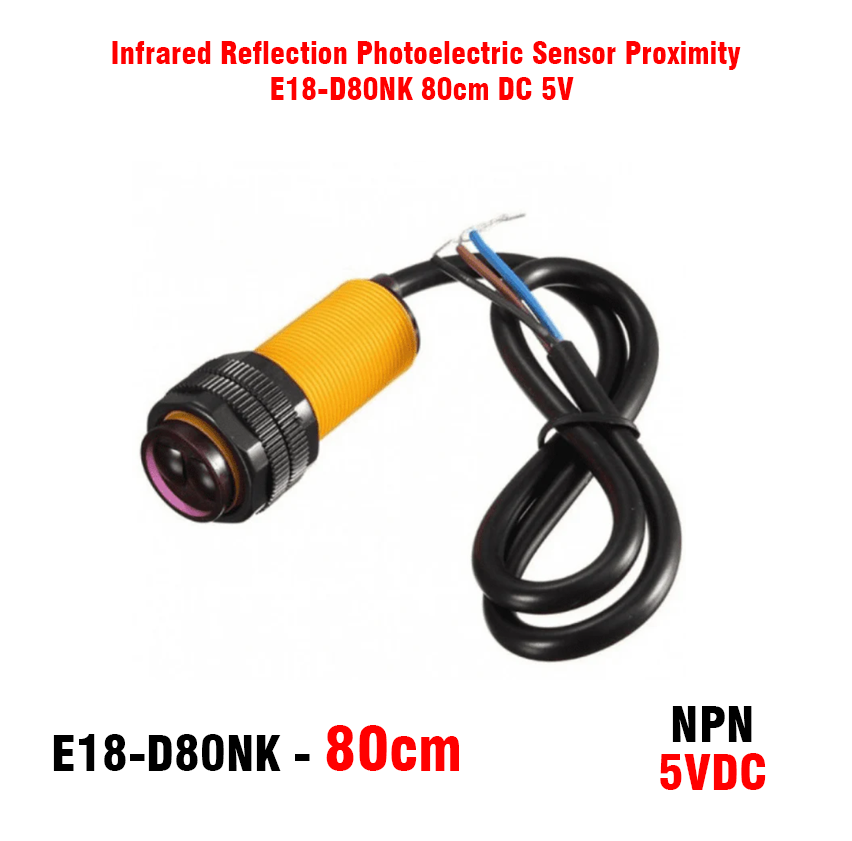

E18-D80NK (3 : 80cm) Infrared Reflection Photoelectric Proximity Sensor - DC 5V

E18-D80NK Infrared Photoelectric Switch Sensor

E18-D80NK is a non-contact detection sensor providing a digital output when an object comes into a specific range of it. It is a low-cost, easy to assemble sensor with very little interference with the surrounding lights and environment.

Features:

• Input Voltage: 5V
• Current Consumption: 25-100 mA
• Response time <2ms
• Sensor type: Diffuse reflective type
• Sensing range: 3-80 cm
• Cable length: 45 cm

Applications

• Collision avoidance robots
• Machine automation
• Object detection

Size:

• Diameter: 17MM
• Sensor length: 45MM
• Lead Length: 45CM

Pin Configuration:

• VCC (Brown): Voltage input(+5V)
• GND (Blue): Ground terminal
• Signal (Black): Digital signal output

Wiring and instructions

• Instructions

Package Includes:

• 1x Proximity Sensor
•
