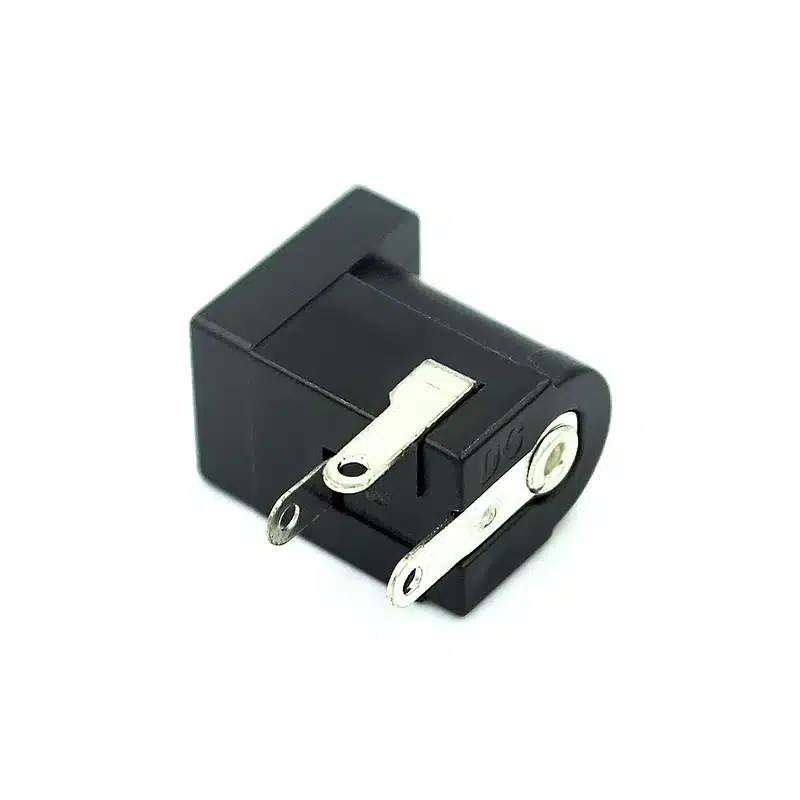

DC Power Jack Female Socket Connector 5.5×2.1mm
DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is a 2.1×5.5mm mountable jack widely used in DIY hobby projects as well as in many robotics applications for DC supply voltage connection up to 30 V.
Feature/Specs:
- Rated load voltage: 30VDC
- Rated load Current: 1A
- Plug Type: 5.5 x 2.1 mm

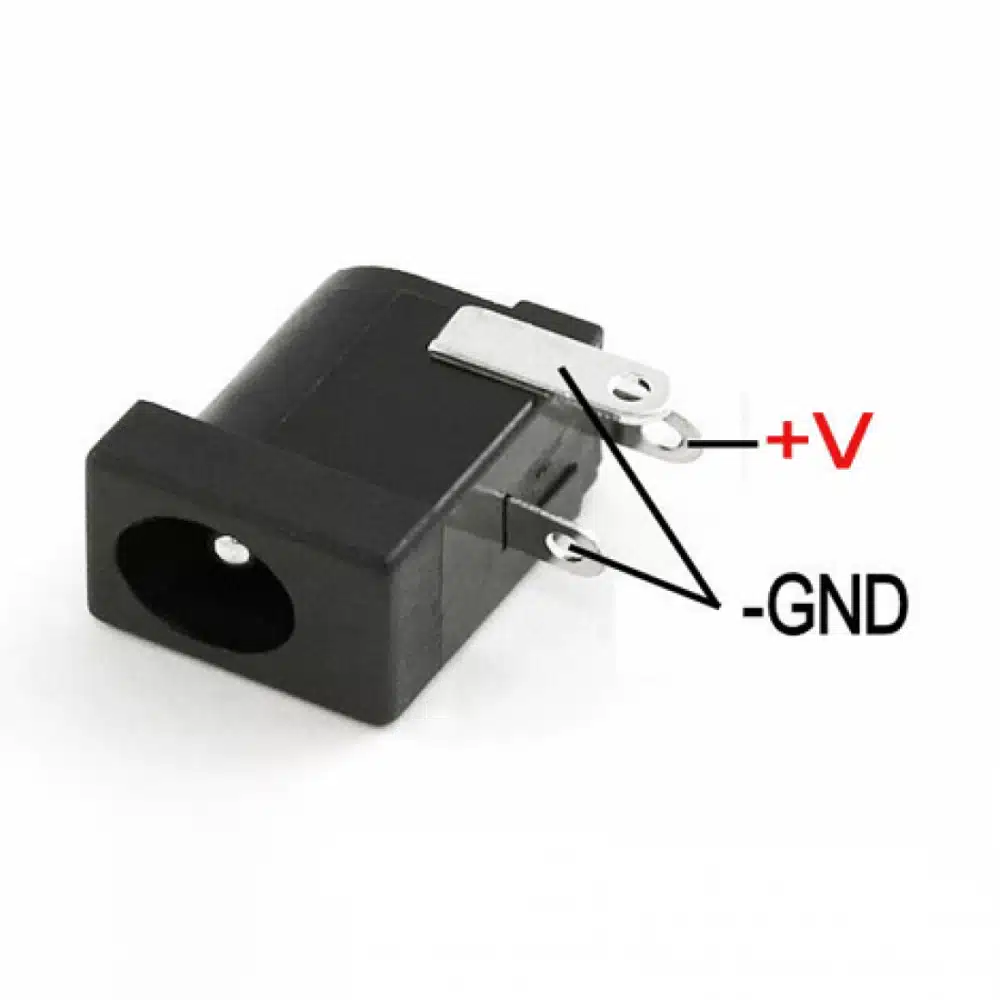

- No. of Pin: 3
- Operating Temperature: -30 ~ +70℃
- Contact resistance: ≤0.03
- Insulation Resistance: ≥100MΩ
- Center Pole Diameter: 2.1mm
- Compatible with: 5.5 mm jack
- Withstand voltage: AC 500V (50Hz)/min.
- Actuating force: 3N – 20N.
