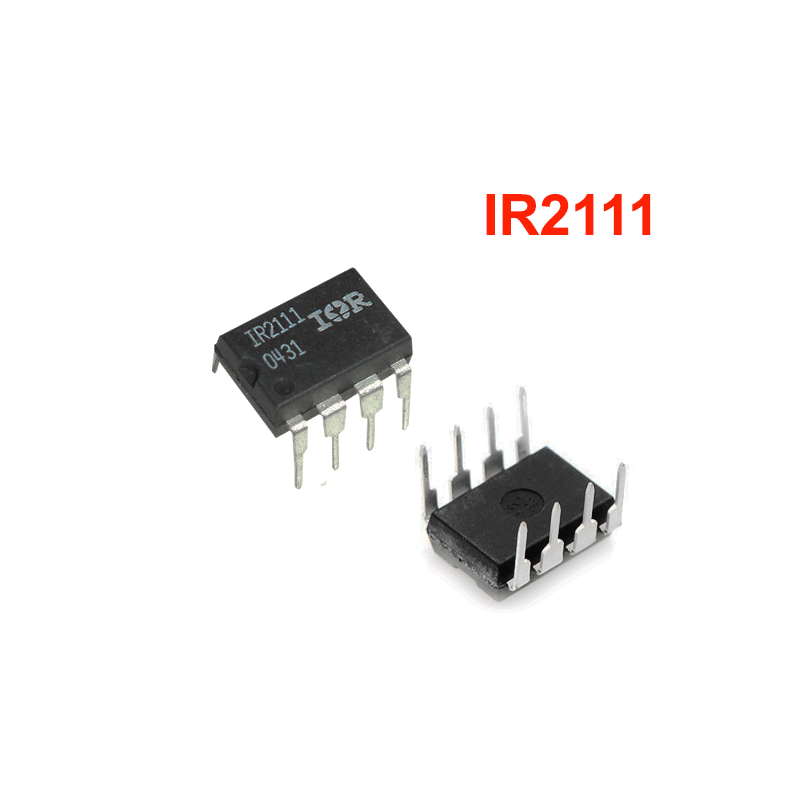

600 V half-bridge gate driver IC with shoot through protection
600 V Half Bridge Driver IC with typical 0.25 A source and 0.5 A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC.
Summary of Features
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply range from 10 to 20 V
- Undervoltage lockout for both channels
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for both channels
- Internally set deadtime
- High side output in phase with input
Potential Applications
- Consumer
- Motor control and drives
- Robotics
- Home and building automation
- Industrial heating and welding
- Power tools
- Power Supplies
- Uninterruptible power supply (UPS)
