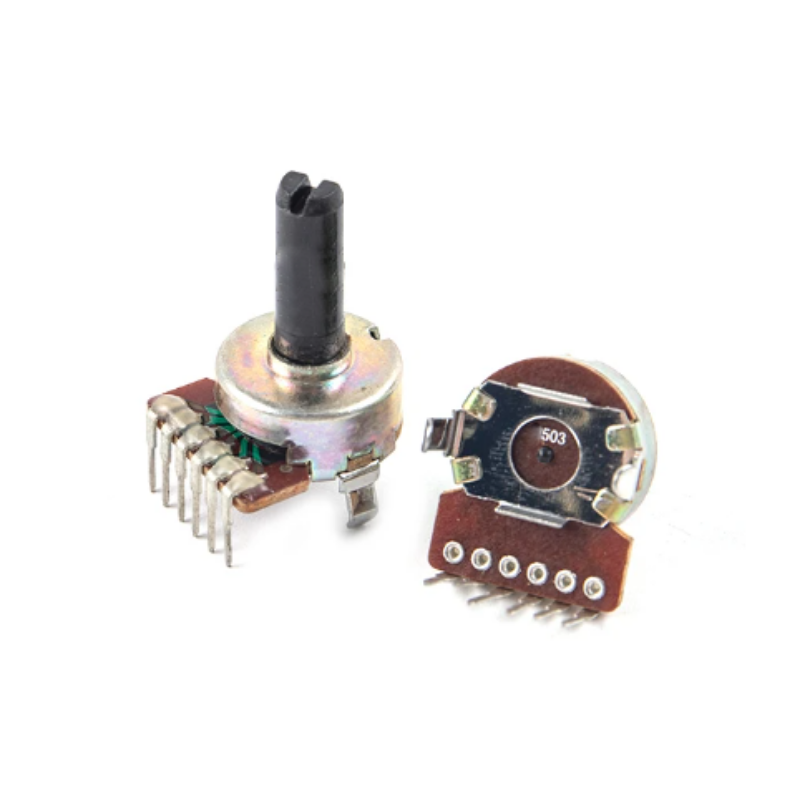

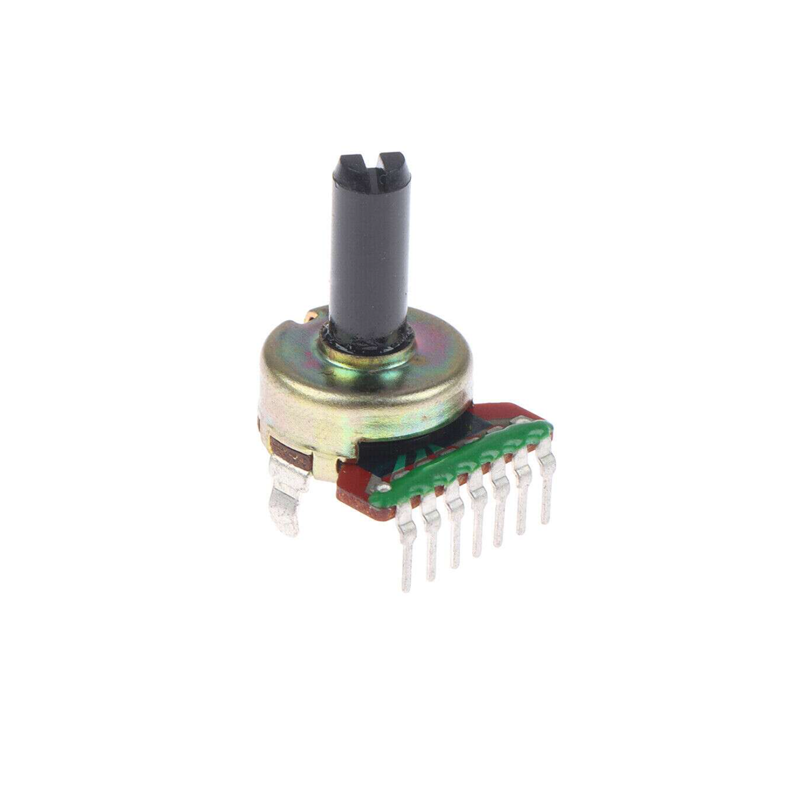

Rotary Dual Potentiometer 50K 6Pin with Plastic Shaft

Rotary Dual Potentiometer 50K 6Pin with Plastic Shaft

The Rotary Dual Potentiometer 50K 6Pin with Plastic Shaft is a compact, precision variable resistor designed for use in circuits requiring dual-channel analog control. As part of the P120 series, it features two potentiometer elements stacked concentrically within a single housing, enabling simultaneous adjustment of two independent resistive paths via a single rotating shaft. Each section has a resistance value of 50 KΩ and a linear taper, ensuring proportional voltage division or signal attenuation throughout the rotation range.

The device is constructed with a robust metal casing for structural integrity and durability, while its plastic shaft offers electrical insulation and compatibility with standard D-type control knobs. The shaft length and form factor support easy manual rotation and front-panel mounting. Its 6-pin configuration includes three pins for each resistive element—two ends and one wiper—making it suitable for stereo audio controls, dual signal balancing, or split-signal analog adjustments. This dual potentiometer is designed for through-hole PCB mounting and can be securely fastened to panels using the supplied nut and washer.

Offering stable performance and a long mechanical life, it is well-suited for applications where precise and synchronized resistance changes are required in two parallel signal paths.

Features:

• Dual-gang (stereo) potentiometer – two 50KΩ channels in one
• Linear taper (Type B) for each channel
• 6-pin PCB-mount design (3 pins per pot)
• 6mm D-shaft knurled plastic top-adjustment shaft

Specifications:

Applications:

• Stereo audio amplifiers.
• Dual-power-supply circuits.
• Audio equipment (volume control).

Package Contents:

• 1x Rotary Dual Potentiometer 50K 6Pin with Plastic Shaft
