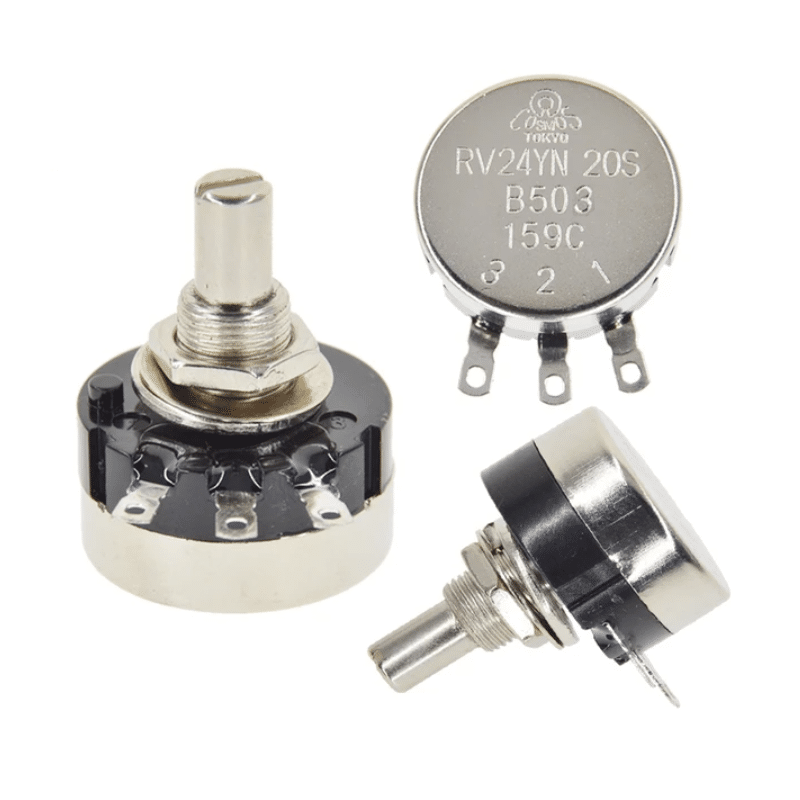

Rotary Taper Potentiometer POT (50K Ohm) (RV24YN20SB503)
SKU: woo-33082
Pick up from store
Shipping 2-3 business days
Description
RV24YN 20S B503 50K Ohm Carbon Composition Rotary Taper Potentiometer Pots
Describe
50K Ohm Resistance, 10% Tolerance, 3 Terminals Potentiometer, come with a Dial and a Control Knob.
This Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment's.
| Product Name | Potentiometer |
| Model | RV24YN-20S |
| Resistance Value | 50K Ohm |
| Rated power | 2W |
| Type | Single Linear (Type B) |
| Shaft Diameter | 6mm / 0.2" |
| Shaft Length | 10mm / 0.4" |
| Mounting Thread Diameter | 9mm / 0.35" |
| Base Diameter | 25mm / 0.1" |
| Total Height | 35mm / 1.4" |
| Material | Metal, Electronic Parts, Carbon Film |
| Adjustment Type | Top Adjustment |
| Package | 1 x Potentiometer |
Specification
Resistance Tolerance: +/-10%;
Rated power: 2W
Mechanical angle: 300°±5°
Electrical angle: 280°±10°
Rotational life: ≥15000 rpm
Potentiometer Body Size: 2. 5 x 1. 4cm/ 1 inch x 0. 55 inch (D*T)
Total Size: 40 x 38mm/1. 6 inch x 1. 5 inch(Dial D*H);
Color: Black, Silver Tone
Material: Metal + Plastic
Weight: 28g;
Package Content:
1*Potentiometer
