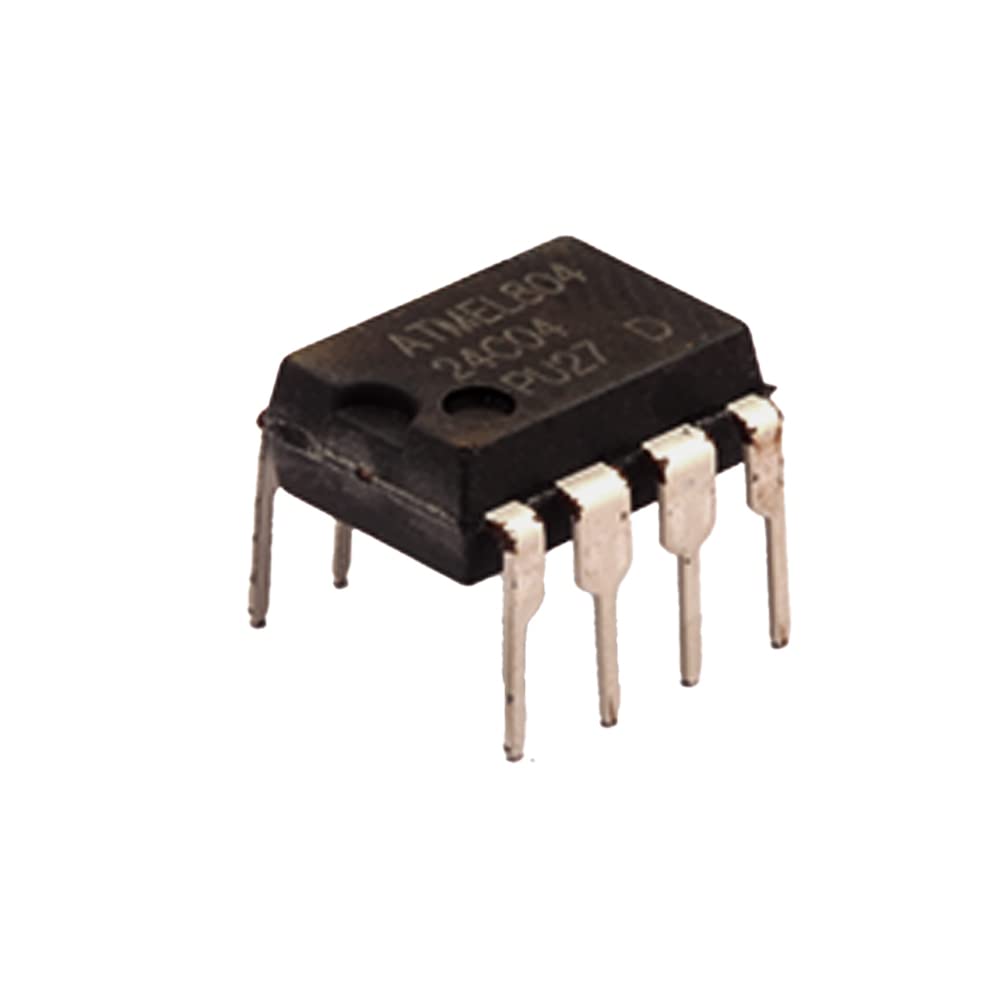

24C04 ( EEPROM 4K (512×8)bit )

Description

The 24C04 provides 2048/4096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512 words of 8 bits each
The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
The 24C04 is available in space-saving 8-lead PDIP, a-lead JEDEC SOIC, and 8-lead TSSOP packages and is accessed via a Two-wire serial interface.
In addition, the 24C04 is available in 1.8V (1.8V to 5.5V) version.

Features:-

• Low-voltage and Standard-voltage Operation 1.8 (VCC = 1.8V to 5.5V)

• Operating Ambient Temperature: -400C to +850C

• Internally organized 256 X 8 (2K), 512 X (4K)

• Two-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)

Compatibility:-

• Write Protect Pin for Hardware Data Protection

• 8-byte Page (2K), 16-byte Page (4K) write Modes

• Partial Page Writes Allowed

• Self-timed Write Cycle (5 ms max)

• High-reliability

– Endurance: 1 Million Write Cycles

-Data Retention: 100 Years

• 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP Packages

Specification:-

Related Document:-
 24C04 IC Data Sheet
