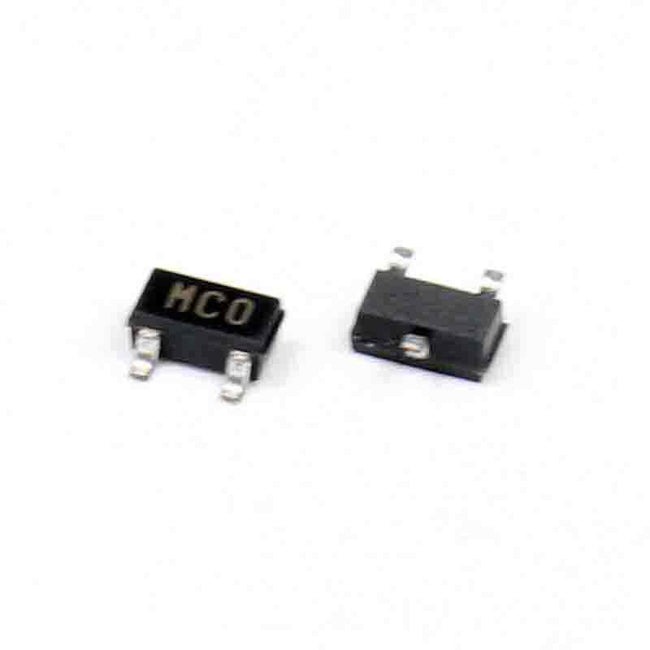

2SC5084 SMD (20V, 80 mA) NPN Transistor

2SC5084 Datasheet VHF~UHF Band Low Noise Amplifier Applications

Type Designator: 2SC5084

SMD Transistor Code: MCO_MCY

Material of Transistor: Si

Polarity: NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.15 W

Maximum Collector-Base Voltage |Vcb|: 20 V

Maximum Collector-Emitter Voltage |Vce|: 12 V

Maximum Emitter-Base Voltage |Veb|: 3 V

Maximum Collector Current |Ic max|: 0.08 A

Max. Operating Junction Temperature (Tj): 125 °C

Electrical Characteristics

Transition Frequency (ft): 7000 MHz

Collector Capacitance (Cc): 1 pF

Forward Current Transfer Ratio (hFE), MIN: 80

Noise Figure, dB: -

Package: S-MINI
