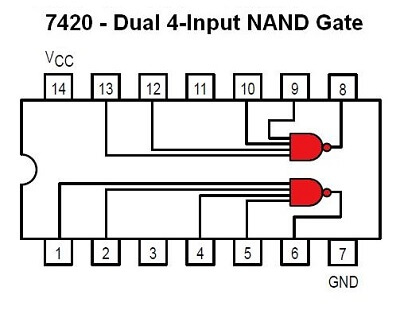

7420 IC Dual 4-Input NAND Gate
SKU: 14154
Pick up from store
Shipping 2-3 business days
EGP 10.00
EGP 18.00
-44.44%
Add to Cart
Description
The 7420 is a Quad 2-input NAND Gate IC.
Key Features:
- Quad 2-input NAND Gate: The IC contains four independent 2-input NAND gates.
- CMOS Technology: Like most devices in the 7400 series, the IC uses CMOS technology, which provides low power consumption and high noise immunity.
- Standard Logic Family: It is a part of the 7400 series, making it compatible with other TTL or CMOS logic ICs.
- Wide Voltage Range: It operates in a typical voltage range of 4.5V to 5.5V and can handle logic-level inputs and outputs.
.
Electrical Characteristics:
- Supply Voltage (Vcc): Typically 5V (with a range of 4.5V to 5.5V).
- Input Logic Levels: The logic levels for the inputs will typically range from 0V (for logic LOW) to Vcc (for logic HIGH), with appropriate input thresholds for a HIGH signal typically being 2V or higher.
- Output Logic Levels: The output will range from 0V (for LOW) to Vcc (for HIGH), suitable for driving logic-level circuits.
