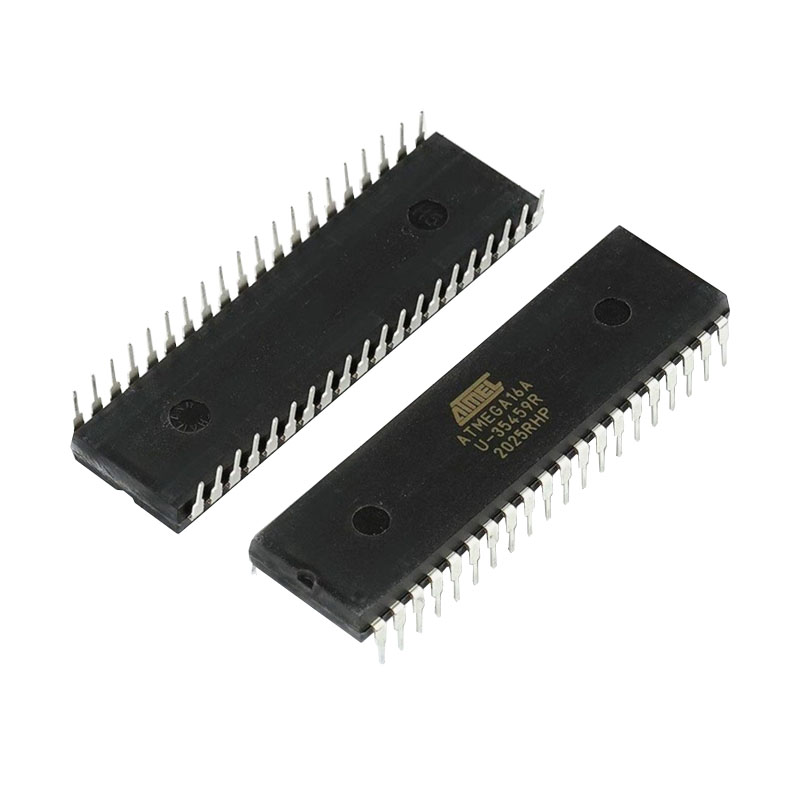

ATMEGA16A , 8-Bit AVR Microcontroller , DIP-40

Description

Description:

ATmega16A 40-Pin 16MHz 16kb 8-bit AVR Microcontroller

The high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts,serial programmable USART, a byte oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages.

Features:

• Features High-performance, Low-power Atmel AVR 8-bit Microcontroller
• Advanced RISC Architecture
  131 Powerful Instructions – Most Single-clock Cycle Execution
  32 x 8 General Purpose Working Registers
  Fully Static Operation
  Up to 16MIPS Throughput at 16MHz
  On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
  16KBytes of In-System Self-programmable Flash program memory
  512Bytes EEPROM
  1KByte Internal SRAM
  Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  Data retention: 20 years at 85°C/100 years at 25°C(1)
  Optional Boot Code Section with Independent Lock Bits
  In-System Programming by On-chip Boot Program
  True Read-While-Write Operation
• Programming Lock for Software Security

Package Include:

• 1 x ATmega16A 40-Pin 16MHz 16kb 8-bit
