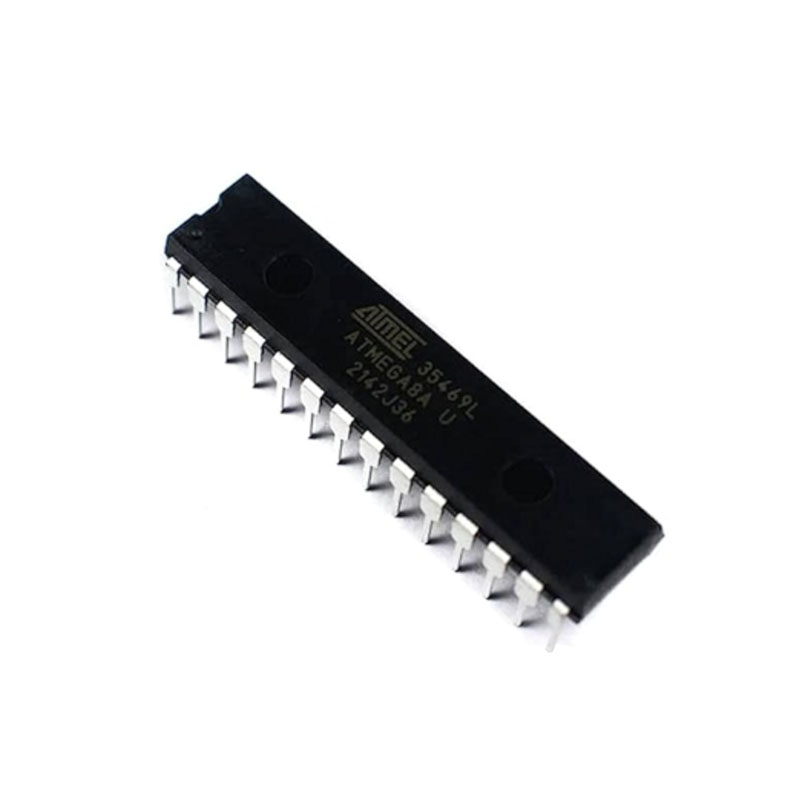

ATMEGA8A -U ,8-Bit AVR Microcontroller , DIP-28

Description

Description:

ATmega8A 28-Pin 16MHz 8kb 8-bit AVR Microcontroller

The high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts,serial programmable USART, a byte oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages.

Features:

• 28-pin AVR Microcontroller
• Flash Program Memory: 8 kbytes
• EEPROM Data Memory: 512 bytes
• SRAM Data Memory: 1 kbytes
• I/O Pins: 23
• Timers: Two 8-bit / One 16-bit
• A/D Converter: 10-bit Six Channel
• PWM: Three Channels
• RTC: Yes with Separate Oscillator
• MSSP: SPI and I²C Master and Slave Support
• USART: Yes
• External Oscillator: up to 16MH

Package Include:

• 1 x ATmega8A 28-Pin 16MHz 8kb 8-bit
