B2B-PH-S JST PH Data Terminal Male 2Pin Connector Header 2mm

B2B-PH-S JST PH Data Terminal Male 2 Pin Connector Header 2mm

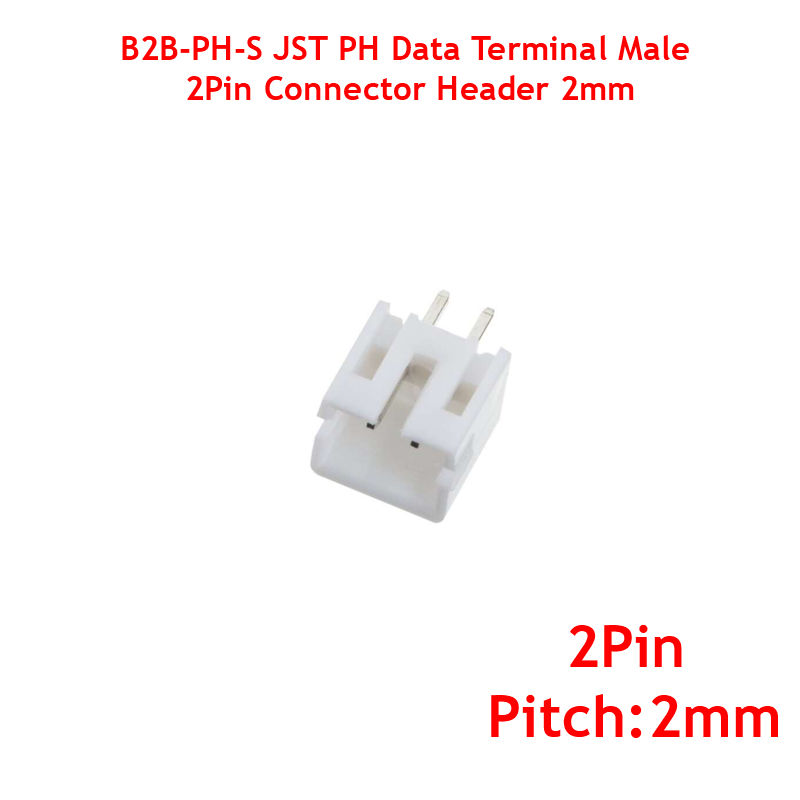

The B2B-PH-S JST PH Data Terminal Male 2 Pin Connector Header 2mm is a reliable, top-entry through-hole header designed for wire-to-board applications.

Part of the JST PH series, this connector features a 2mm pitch, offering a compact yet robust solution for PCB connections.

It is constructed with tin-plated copper alloy posts for excellent conductivity and durability, and its top-entry design ensures straightforward mating with compatible receptacles.

With a current rating of 2A AC/DC and a voltage rating of 100V AC/DC, the B2B-PH-S delivers consistent performance in various electronic applications.

Features

• Top-entry design.
• 2mm pitch for high-density PCB mounting.
• Shrouded header for secure and reliable mating.
• Through-hole mounting for strong mechanical stability.
• Tin-plated copper alloy posts for superior electrical conductivity.

Specifications

Parameter Value Number of Positions 2 Pitch 2mm Mounting Type Through-hole, top-entry Current Rating 2A AC/DC (AWG #24) Voltage Rating 100V AC/DC Operating Temperature -25°C to +85°C Contact Resistance 20mΩ max. Insulation Resistance 1,000MΩ min. Withstanding Voltage 800VAC for 1 minute Applicable Wire Range Conductor: AWG #32 to #24

Insulation O.D.: 0.5mm to 1.5mm PCB Thickness 0.8mm to 1.6mm Material Post: Copper alloy, tin-plated

Housing: PA 66, natural (white) Body Dimensions 5.9mm x 4.5mm x 6mm Dimensions

Note: the K you see in the model is for the clinched variant of this connectors. Please refer to the datasheet for more information.

Applications

• Consumer electronics.
• Industrial control systems.
• Automotive electronics.
• Medical devices.
• High-density wire-to-board connection needs.

Package Contents

• 1x B2B-PH-S JST PH Data Terminal Male 2 Pin Connector Header 2mm.
