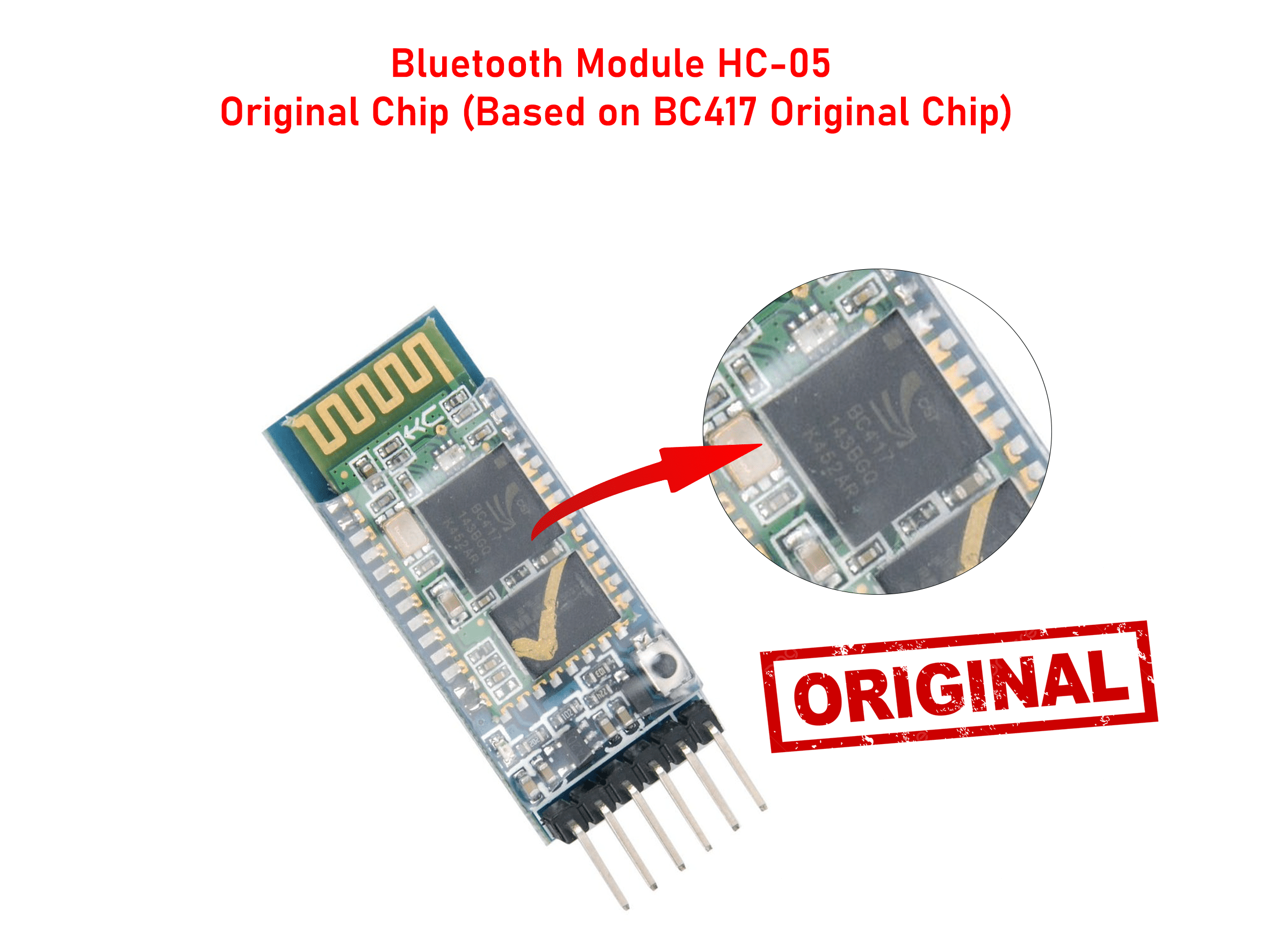

Bluetooth Module HC-05 Original Chip (Based on BC417 Original Chip)

HC-05 Bluetooth Module

Module lets you switch between Master and Slave modes with ease using AT Commands, and it comes pre-configured in Slave Mode. Its compatibility with devices such as phones, laptops, and microcontrollers ensures hassle-free connectivity. With a USART interface, this HC 05 Bluetooth module is a perfect fit for microcontrollers supporting USART communication. Plus, you can configure its settings effortlessly using the command mode. Ideal for DIY projects and data exchange, this Arduino Bluetooth module provides LED feedback for seamless operation, giving you the best bang for your buck. The HC-05 Bluetooth Module with Baseplate is a slave-only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 wireless communication module, which can do both master and slave.

Key Features:

• Working current: matching for 30 mA, matching the communication for 8 mA.
• With the computer and Bluetooth adapter, PDA, and seamless connection equipment.
• Use the CSR mainstream Bluetooth chip and Bluetooth V2.0 protocol standards.
• With the Potter default rate of 9600, the user can be set up.
• Bluetooth protocol: Bluetooth Specification v2.0+EDR
• Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
• Security: Authentication and encryption.
• Profiles: Bluetooth serial port.

Pin Diagram:

Pin Description:

Pin Number	Pin Name	Description
1	Enable / Key	This pin is used to switch between command mode (set low) and Data Mode (set high). The default setting of this HC 05 Bluetooth module is Data Mode.
2	Vcc	This pin can be used to power the Bluetooth module. It has an operating voltage of +5V DC.
3	Ground	Connect the module's ground pin to the Microcontroller’s Ground Pin (GND).
4	TX – Transmitter	Sends serial data to the MCU. This pin will distribute all Bluetooth data in the form of serial data to the Microcontroller.
5	RX – Receiver	Obtain Serial Data. This pin will transmit all serial data that is provided to it over Bluetooth.
6	State	The on-board LED attached to the state pin can be used as feedback to see if Bluetooth is functioning properly.
7	LED	Indicates the status of Module Blink once in 2 sec: Command Mode Repeated Blink: Waiting for connection in Data Mode Blink twice in 1 sec: Connection successful in Data Mode
8	Button	Used to control the Key/Enable pin to switch between Data Mode and Command Mode

HC-05 BLE Module Default Values:

• Bluetooth Name: “HC-05”
• Password: 1234 or 0000
• Communication: Slave
• Mode: Data Mode
• Data Mode Baud Rate: 9600, 8, N, 1

Applications

• Can be used for wireless communication between two microcontroller units.
• Communicate with Laptop mobile phones etc.
• Data Logging
• Wireless Robots
• DIY Home Automation Projects
• Robotic Cars
• Arduino Projects
