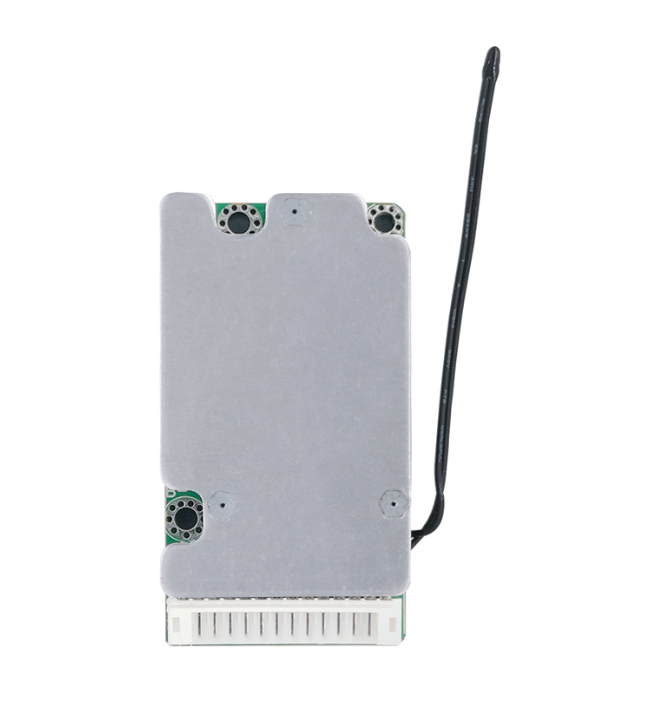

BMS 13S (48V - 15A )Lithium Battery Protection Module with Passive Balance

Overview of this 48V 13S 15A Lithium Ion Bms Battery Protection Board

Introducing the Roboway 48V 15A 13S BMS Li-Ion Battery Protection Board at best price in India with Roboway. This BMS is made for battery packs with 13 cells connected in series and which together give a nominal voltage of 48V. It can safely handle up to 15A of continuous current for making it suitable for medium-power applications like e-bikes, scooters, solar storage, and DIY battery packs.

The 48V 15A 13S BMS Board with Connector features comprehensive protection against overcharging, overdischarging, and short circuits. This 48V 15A 13S Lithium Battery Protection Module with Connector is engineered for easy integration into your battery systems. Its robust design ensures long-term durability and consistent performance. With the advanced features of the 48V 15A 13S BMS, you can trust your battery management to be secure and effective.

Features

High Current Support: It handles up to 15A, ideal for high-power lithium-ion applications. Ensures stable and efficient performance for your 13S battery pack.

13S Configuration: It designed for 13 series lithium-ion cells, supporting a 48V maximum voltage. Provides balanced charging and optimal management for multiple cells.

Comprehensive Protection: BMS gives protection against overcharge, overdischarge, and short circuits. Safeguards your battery pack from potential damage and extends its lifespan.

Integrated Connector: Includes a built-in connector for easy installation and reliable connections. Simplifies setup and reduces the need for additional wiring.

Durable Design: Features a robust and compact design suitable for various battery setups. Ensures long-term reliability and consistent performance in demanding conditions.

Specification

Battery Type: Lithium-Ion

Number of Cells: 13 Series (13S)

Nominal Voltage: 48.9V

Maximum Voltage: 54.6V

Minimum Voltage: 39.0V

Maximum Continuous Discharge Current: 15A

Overcharge Protection Voltage: 4.2V ± 0.05V per cell

Overdischarge Protection Voltage: 3.0V ± 0.1V per cell

Overcurrent Protection: 15A

Balancing Current: 100mA

Charging Current: 15A

Short Circuit Protection: Yes

Temperature Protection: Yes, typically 75°C

Weight: 46 grams

Dimension : 85*57*10 mm

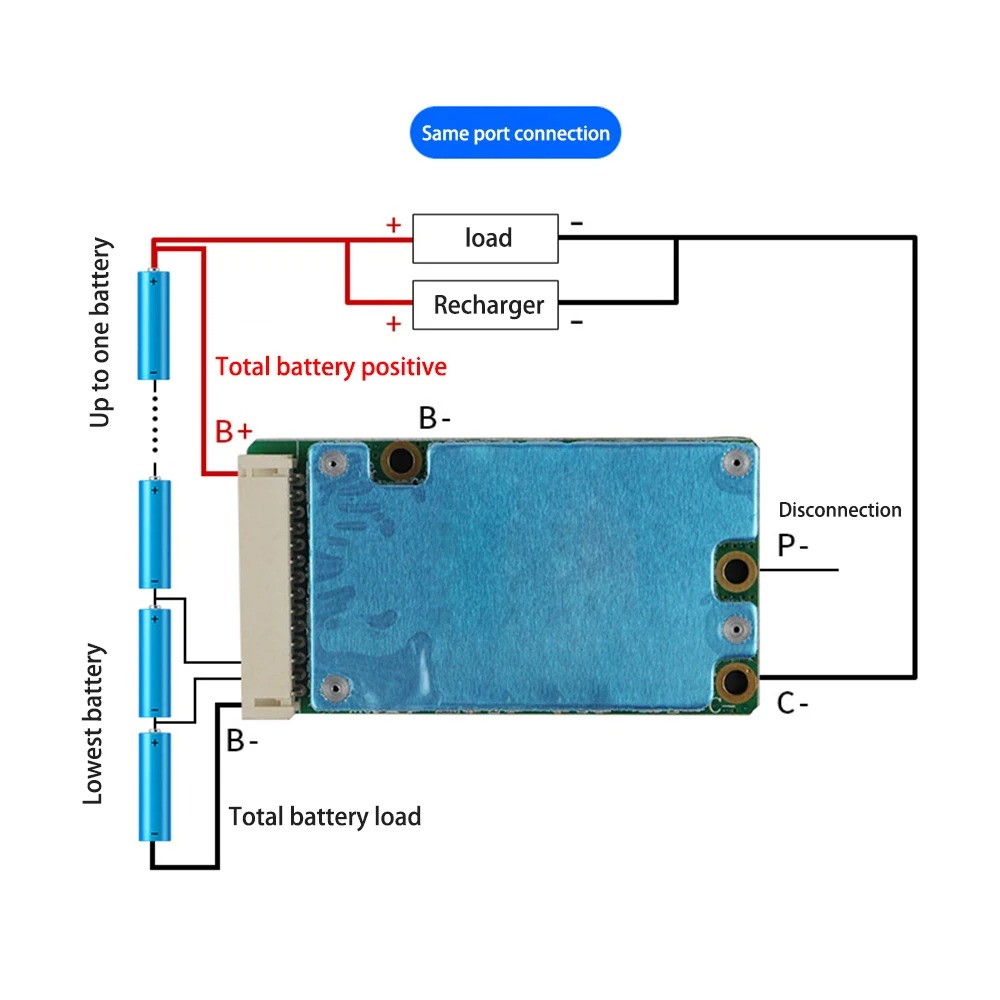

Connection Type: Connectors for cells and output
