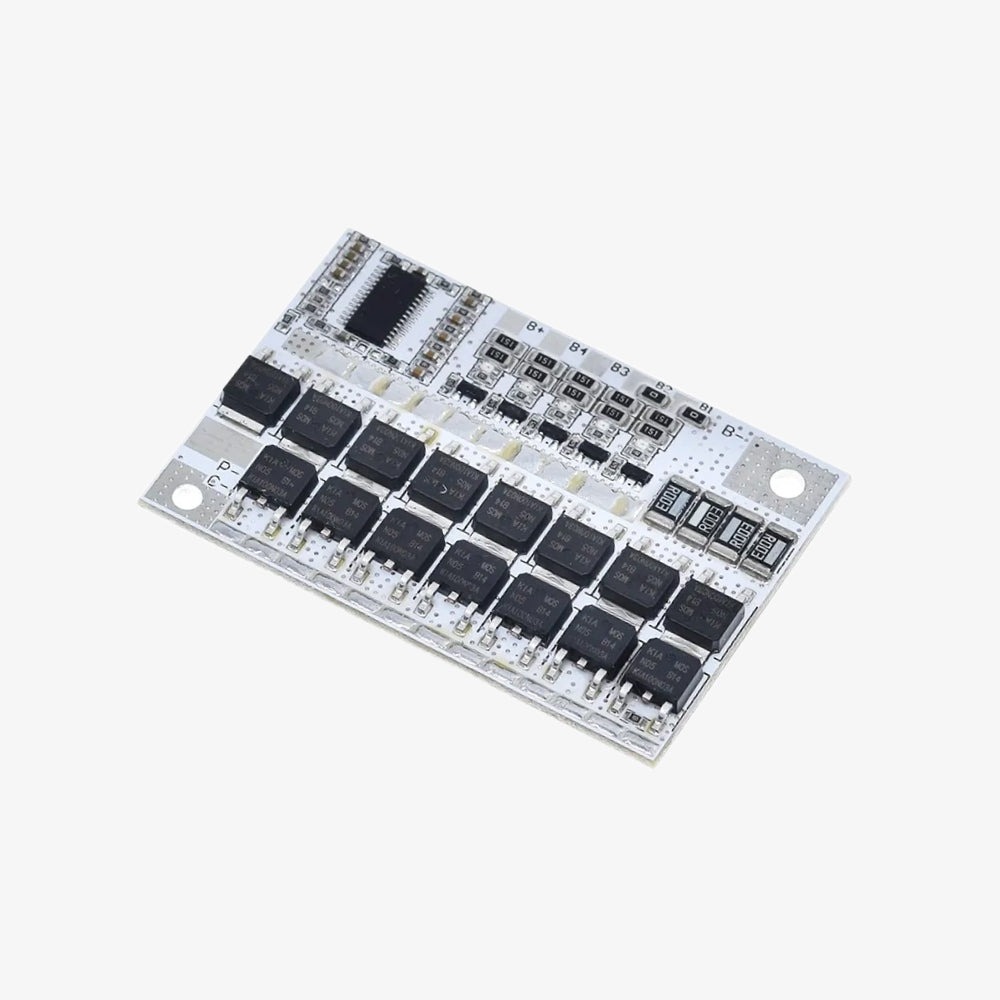

BMS 3S (12.6V - 100A) Lithium Battery Protection Module

Description:

Product category:Sensors Modules

FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage: 4.21-4.29 V
Single cell battery overcharge protect recover voltage: 4.14-4.24 V
Overcharge protect delay: 1.5-2.5S
Single cell battery over-discharge protect voltage: 2.72-2.88 V
Single cell battery over-discharge protect recover voltage: 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay: 0.5-1.5S
Temperature protect: Yes,have Temperature control interface.
Disconnect protect: Yes
Shortage protect: Yes
Shortage delay: 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current): 60MA
Current balance accuracy: 4.14-4.24V

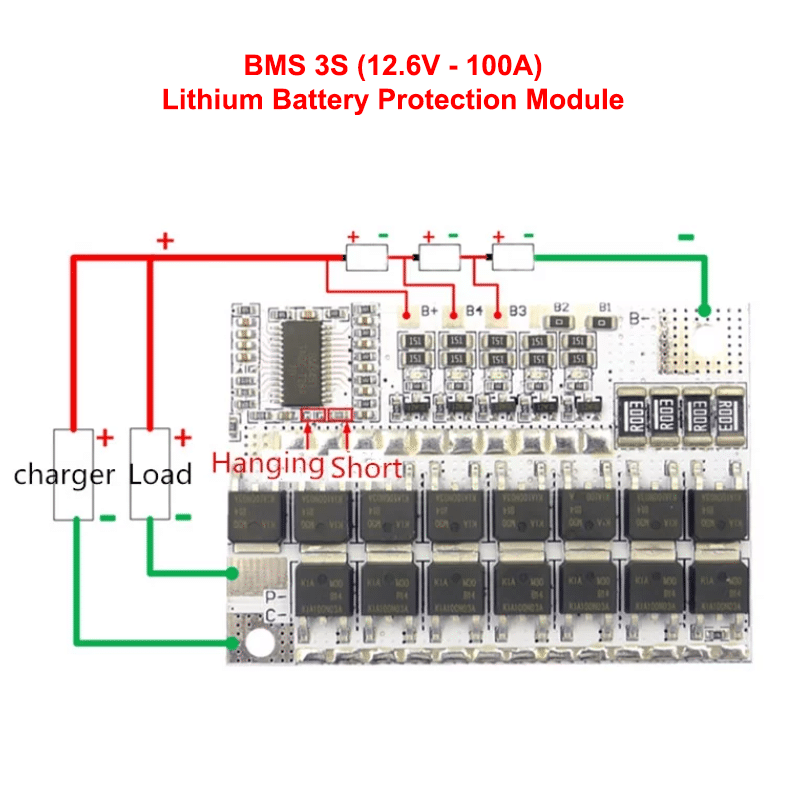

Common use for \u201csame port\u201d and \u201cdifferent port\u201d, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.
