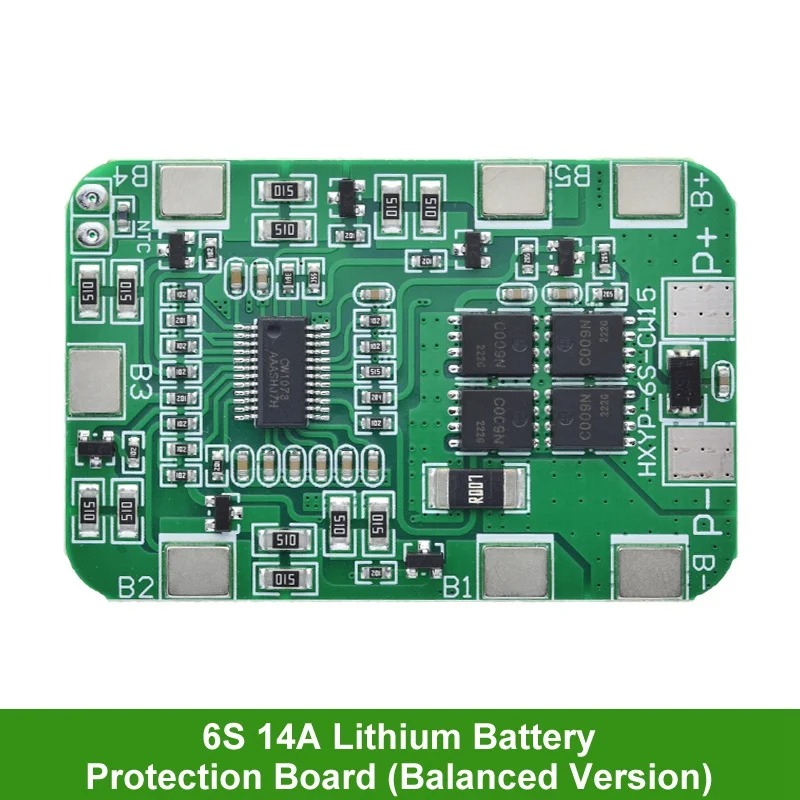

BMS 6S (24V-14A ) Lithium Battery Protection Module
SKU: 15350
Pick up from store
Shipping 2-3 business days
EGP 160.00
EGP 200.00
-20%
Add to Cart
Description
A protective and charging module (BMS) for 6 Li-Ion cells, monitoring each cell individually. Suitable for nominal lithium battery voltages of 3.6V, 3.7V (including 18650, 26650).
Technical Specifications:
- Model: HXYP-6S-JW12
- Charging Voltage: 25V
- Continuous Discharge Current: 14A
- Maximum Discharge Current: 22A
- Overcharge Voltage (per cell): 4.28V±0.05V
- Overdischarge Voltage (per cell): 2.55±0.08V
- Static Current: 30uA
- Balancing Current: 56mA
- Overheat Protection: -10℃~+70℃
- Weight: 7 g
- Dimensions: 35 x 53.5 x 3.6 mm
