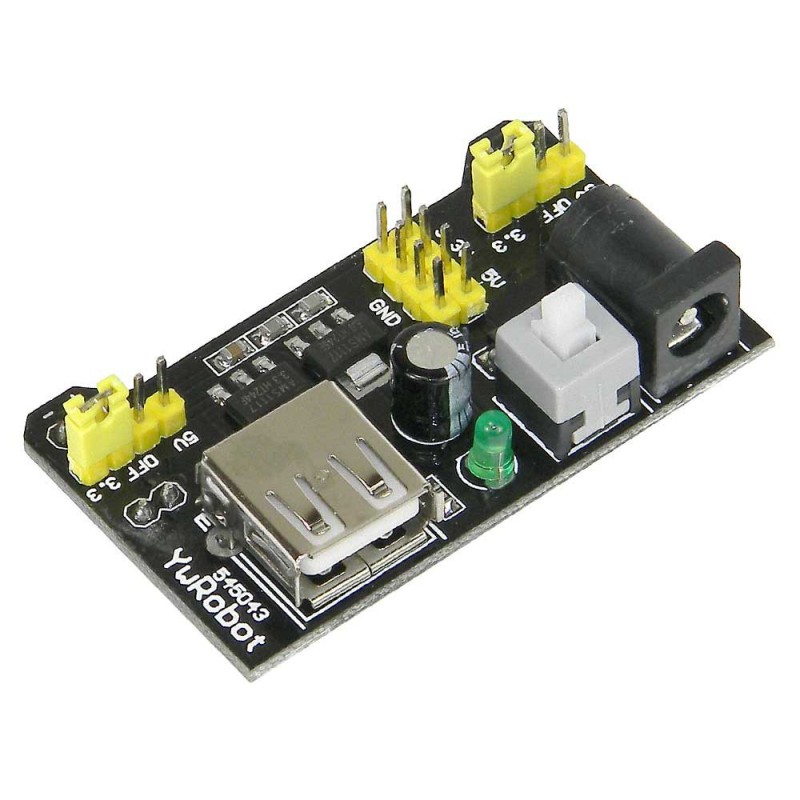

Breadboard Power Supply Module 3.3V 5V For MB102

A 3.3V and 5V Breadboard Power Supply Module with series diode, polarity reversal protection. The module can take 6.5V to 12V input and can produce 3.3V and +5V. Can also output 5V on USB connector and can also take input through USB connector.

Its a must have product for experimenters those have to test/prototype electronic circuits on breadboard or perforated/veroboards.

Features

• Breadboard power supply module, with 5 V, 3.3 V output voltages

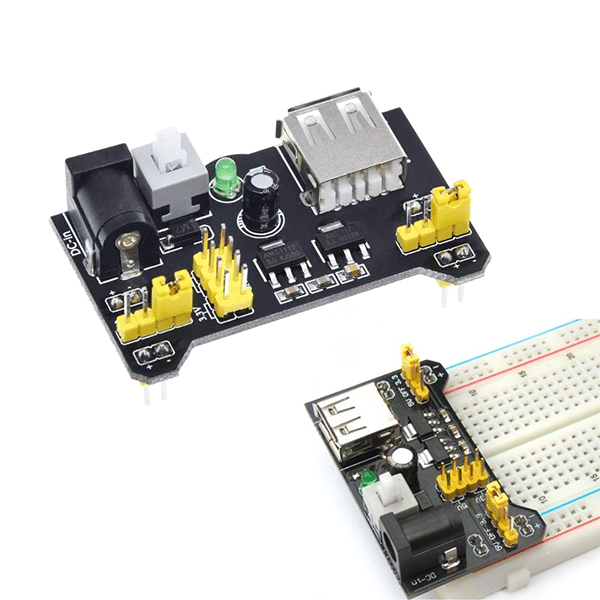

• Apply to MB102 Standard breadboard
• Input voltage: 6.5-12 V (DC) or 5V USB power supply
• Output voltage: 3.3V and 5V can switch over
• Maximum output current: <700 ma
• Input voltage ON/OFF switch
• Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, 5 V using jumpers on any rail.
• On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.

Connectors:

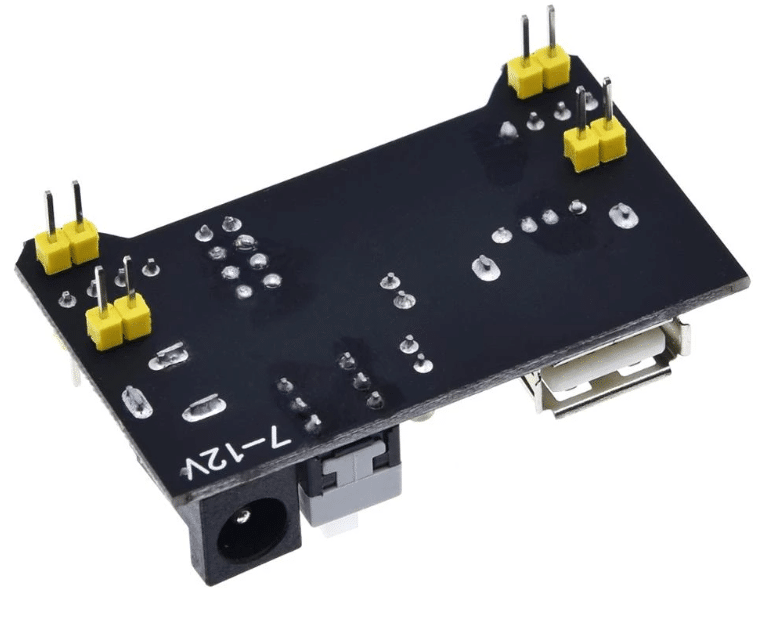

• 1x Barrel 5mm Connector (center +ve) for Input Power
• 1x USB connector for 5V input or 5V output
• 4x 2Pin Headers pointing downward for 3.3V or 5V output
• 1x 2×4 Header for 3.3V and 5V output
• 2x 1×4 selection jumper for 3.3V/OFF/5V

Please note: This item only comes with a Power Supply Module, Breadboard is not included.
