BV1 Insulated Crimp Terminal Red For Wires Straight Butt Connectors

Features:

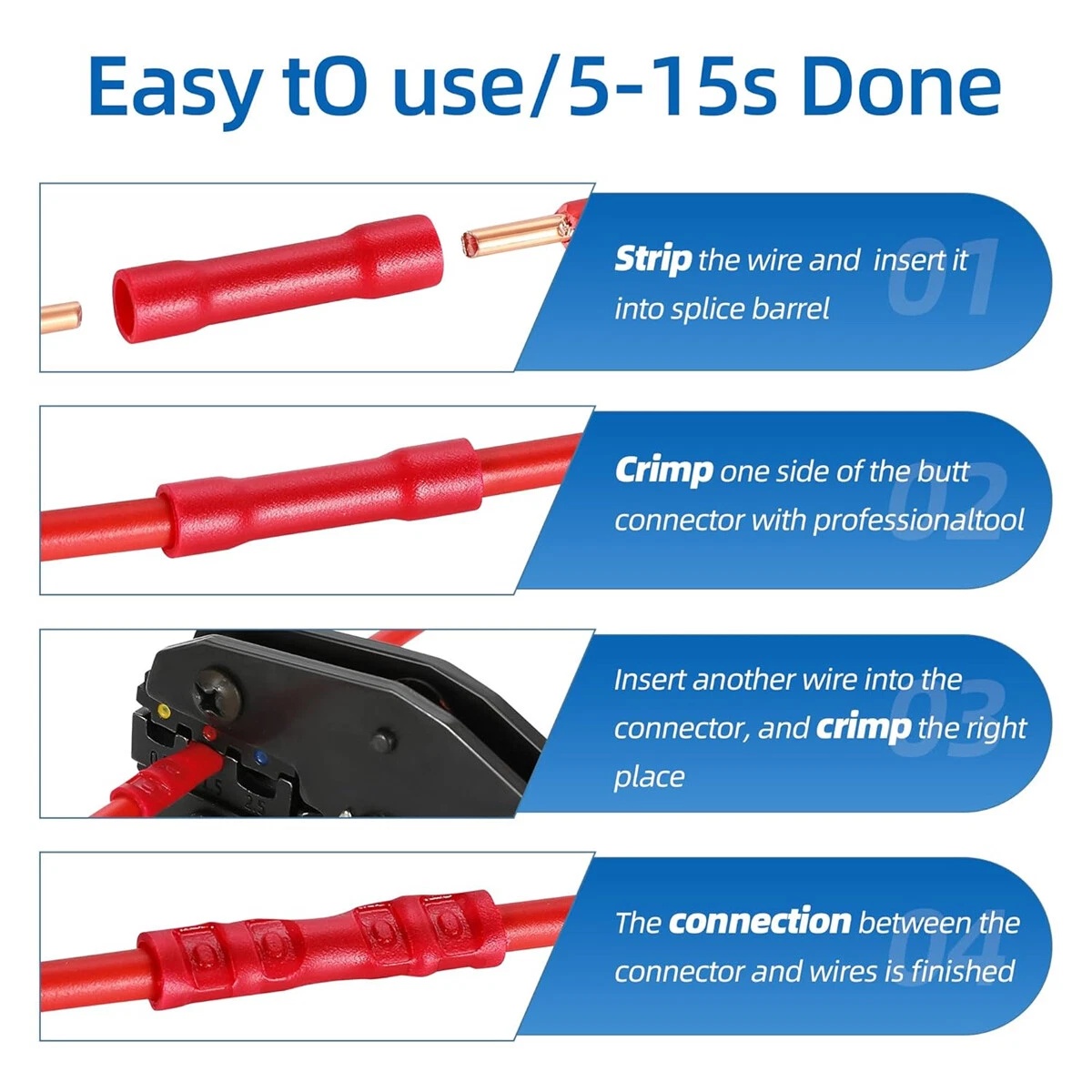

⇨ Easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.

⇨ Providing strain relief and against vibration in rugged environment, which insulates and protects electrical connections.

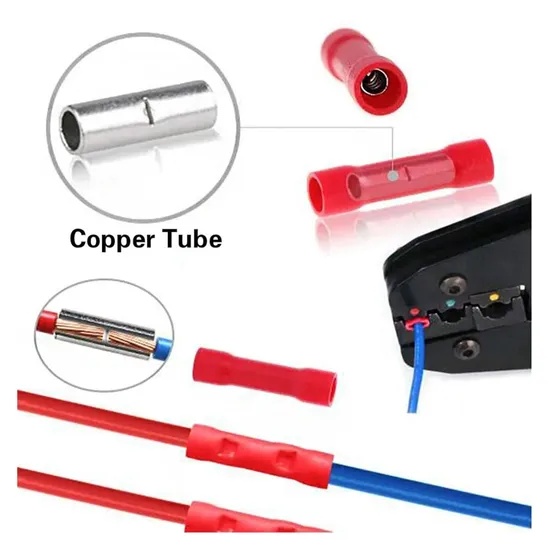

⇨ In the middle of the splice is high pure copper tube, with excellent conductivity property.

⇨ Excellent stretch, puncture and mechanic damage resistance performance.

⇨ Fully insulated connectors, tin-plated copper with PVC insulation

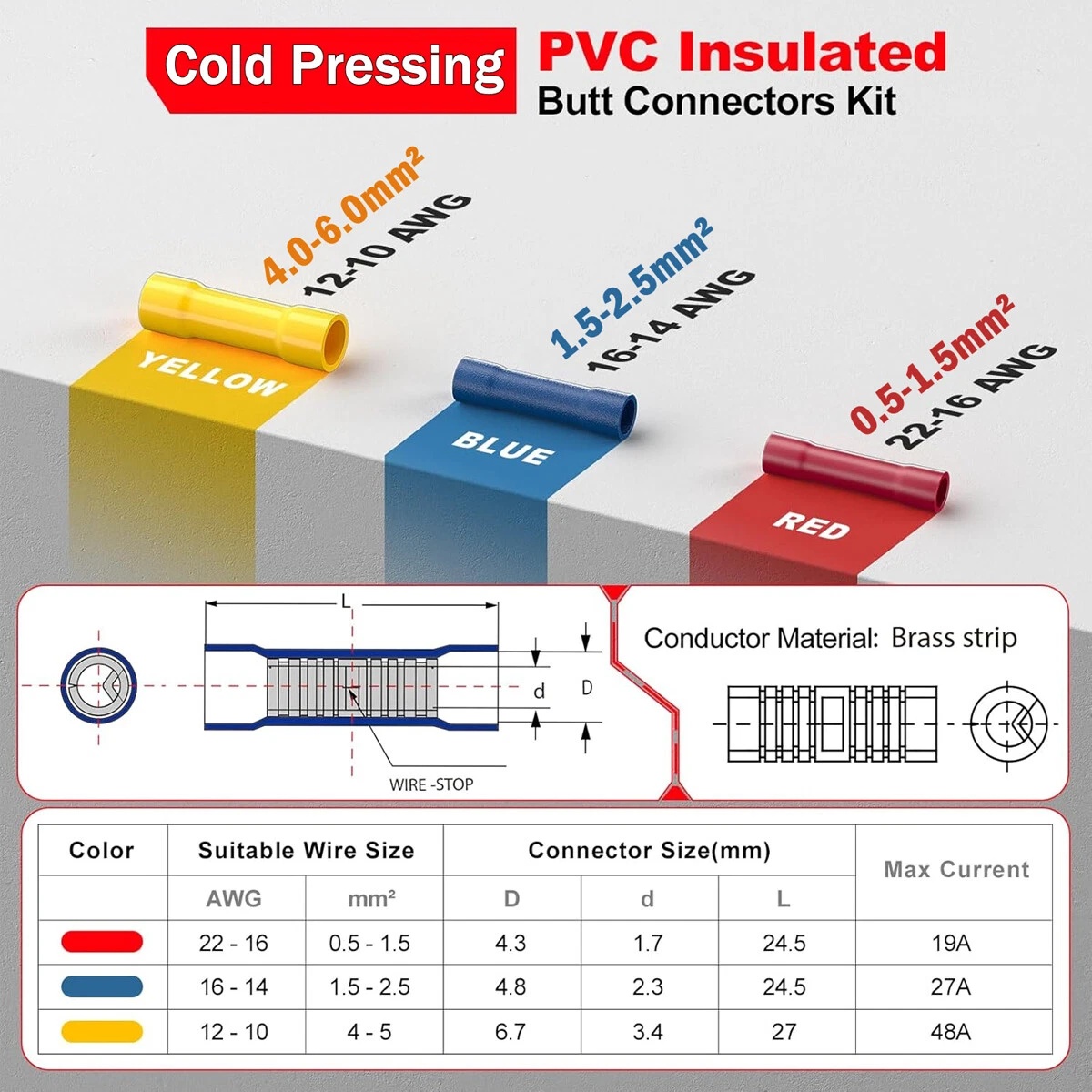

Specification:

Insulator: PVC

Terminal Body: Copper

Plating: Tin

Maximum Temperature: 75 Celsius

Color: Red, Blue, Yellow

Insulation Voltage: 600V

Suits Cable/Wire Sizes: 0.5-6.0mm²; 22-10 AWG

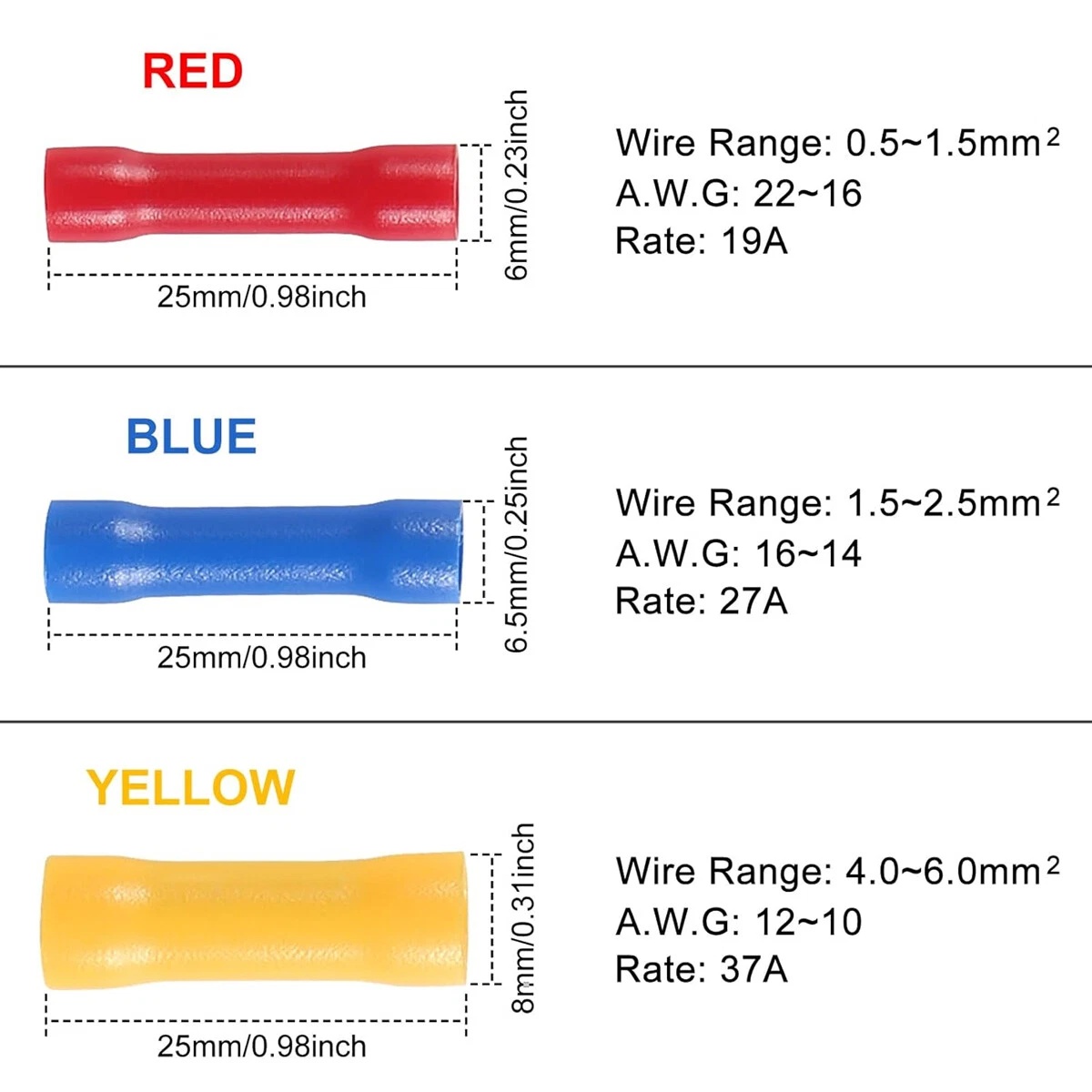

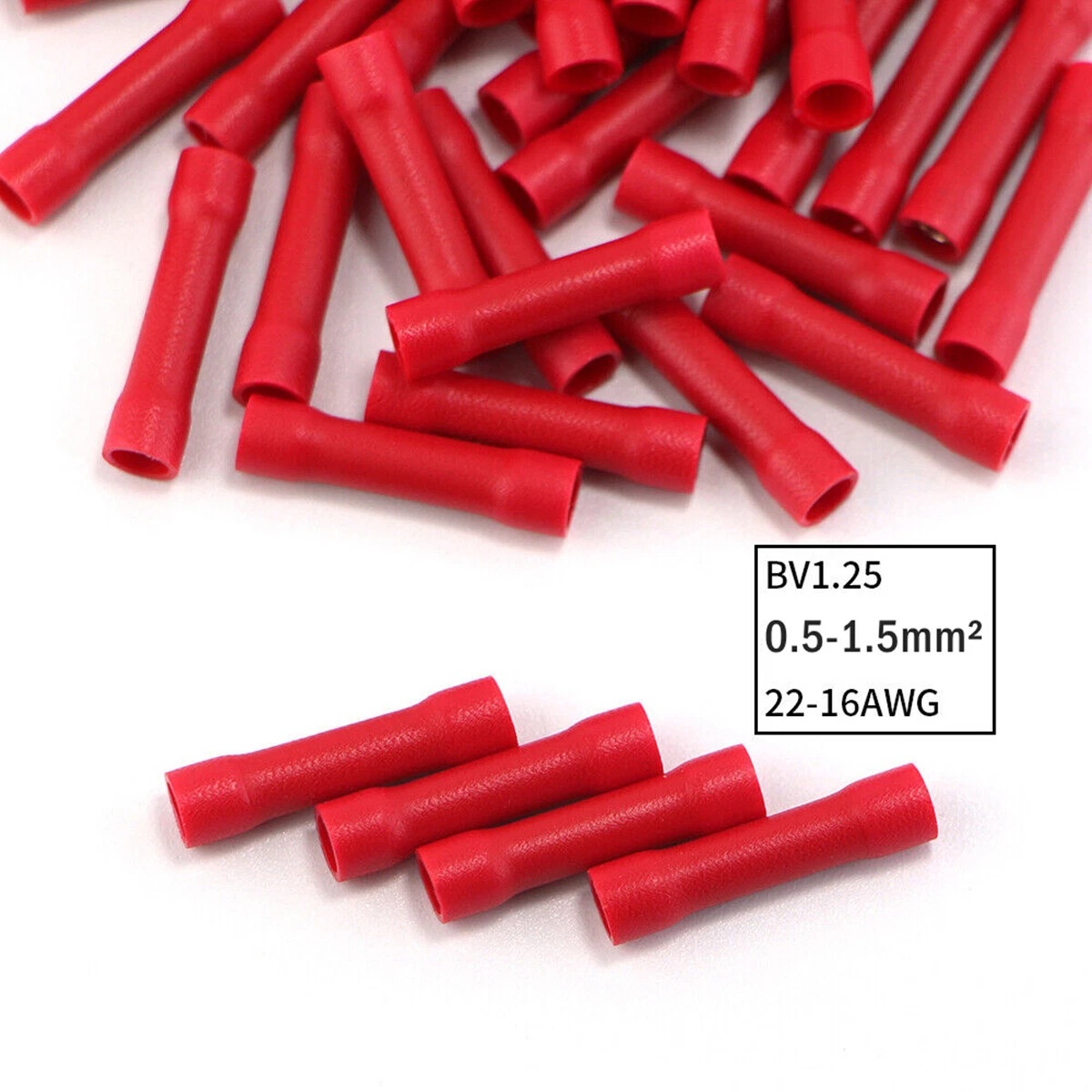

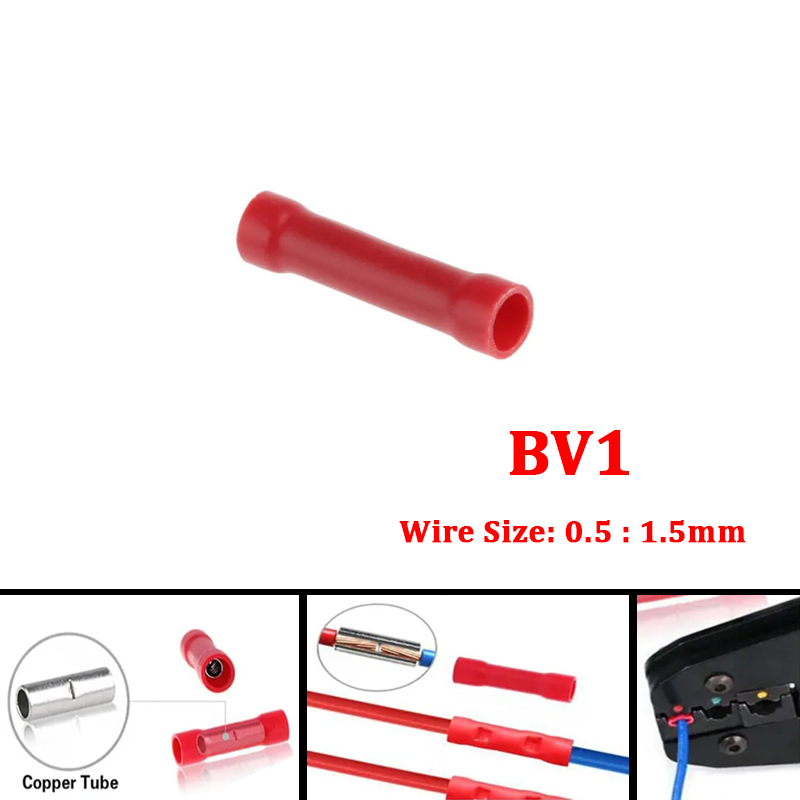

Red Butt Connectors BV1:

Maximum current: 19A

Connector Size: 0.5-1.5mm² / 22-16awg cable

Length 2.5cm each

Blue Butt Connectors BV2:

Maximum current: 27A

Connector Size: 1.5-2.5mm² / 16-14awg cable

Length: 2.5cm each

Yellow Butt Connectors BV5:

Maximum current 48A

Connector Size: 4.0-6.0mm² / 12-10awg cable

Length 2.5cm each

Package Included:

1pcs insulated crimp terminals
