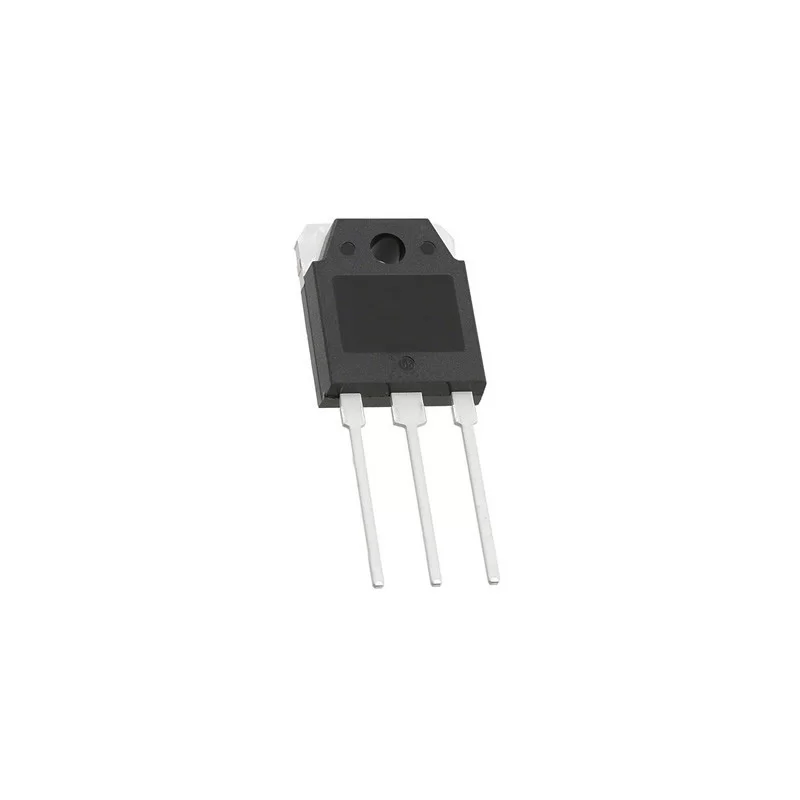

C3460 (2SC3460) Power Transistor NPN (800V , 6A)

Description

Features :

Type Designator: 2SC3460
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 1100 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 15 MHz
Collector Capacitance (Cc): 120 pF
Forward Current Transfer Ratio (hFE), MIN: 10
Noise Figure, dB: –
Package: TO247
