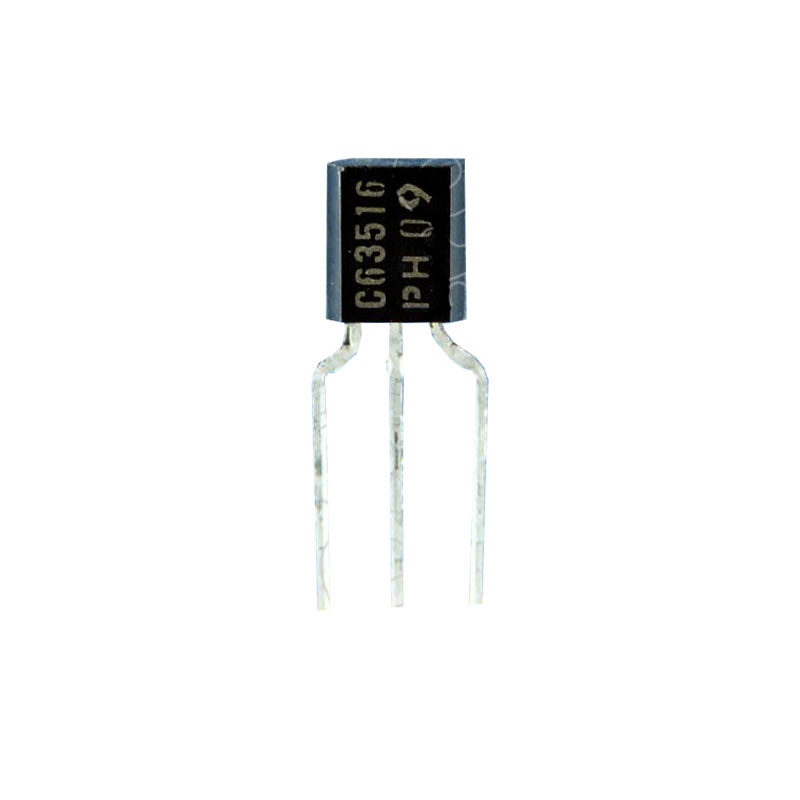

C63516 = BC635 Transistor (45V, 1A) NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 50 MHz

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

Package: TO92

For Datasheet click Here
