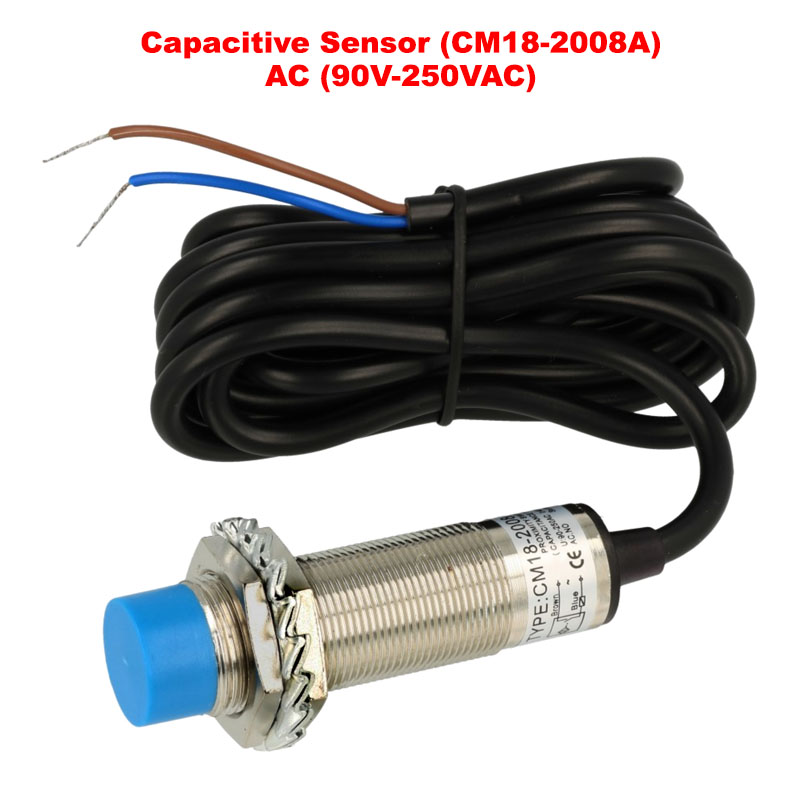

Capacitive Sensor (CM18-2008A) AC (90V-250VAC)
SKU: woo-43443
Pick up from store
Shipping 2-3 business days
Description
Capacitive sensors are used in machine systems and equipment for no-contact motion surveillance.
They consist of two coaxial electrodes, a condenser and RC generator.
This type of sensors reacts to both metal and non-metal objects, as the gearing distance for non-metal objects depends on their dielectric constants.
They allow gearing distance adjustment for non-magnetic conductive materials. They are developed on the base of PNP and NPN transition.
They have small dimensions and feature a metal cylindrical shell resistant to vibrations and a plastic lid which is oil and water resistant.
| Details | |
|---|---|
| Name | Sensor |
| Sensor type | capacitive |
| Symbol | CM18-2008A |
| Output type | two-wire; SCR |
| Output function | NO |
| Sensing zone | 8mm |
| Voltage range | 90 : 250V |
| Voltage type | AC |
| Maximum current | 300mA |
| Housing type | cylindrical metal |
| Sensor diameter / dimmension | fi 18mm |
| Length sensor | 70mm |
| Installation | not flush type |
| Montaż / connections | with 1,5m cable |
| IP rating | IP67 |
