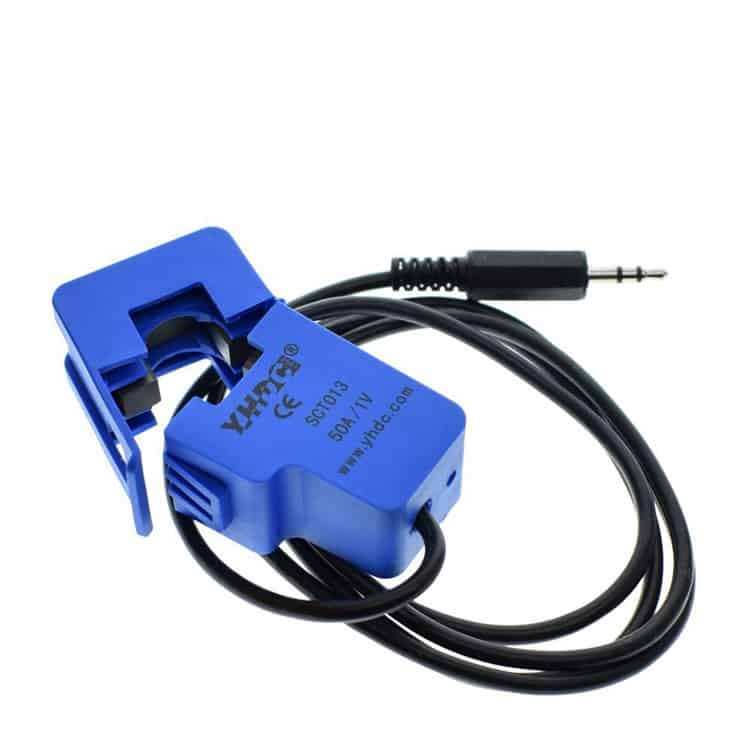

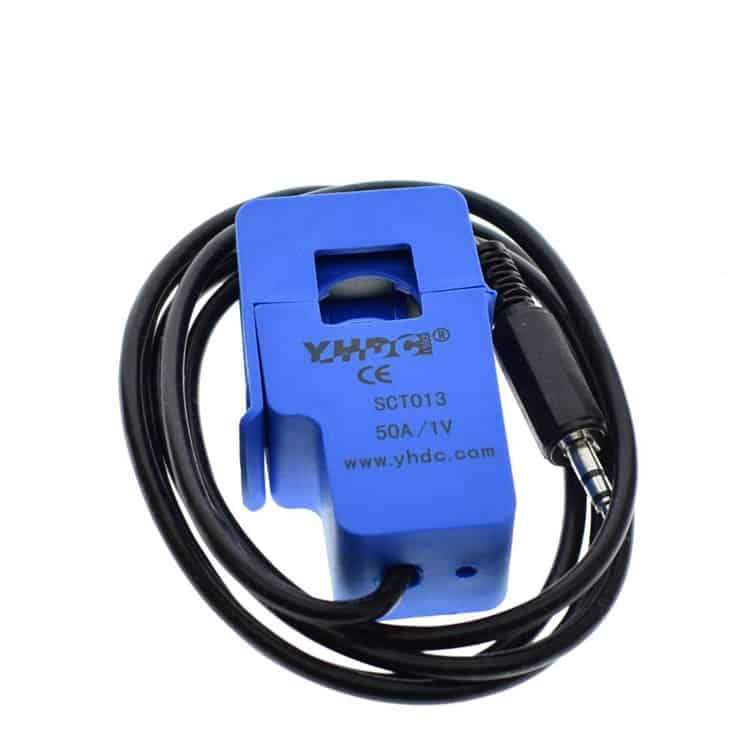

Current Transformer Sensor 50A AC (Split Core Current Transformer) SCT-013

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

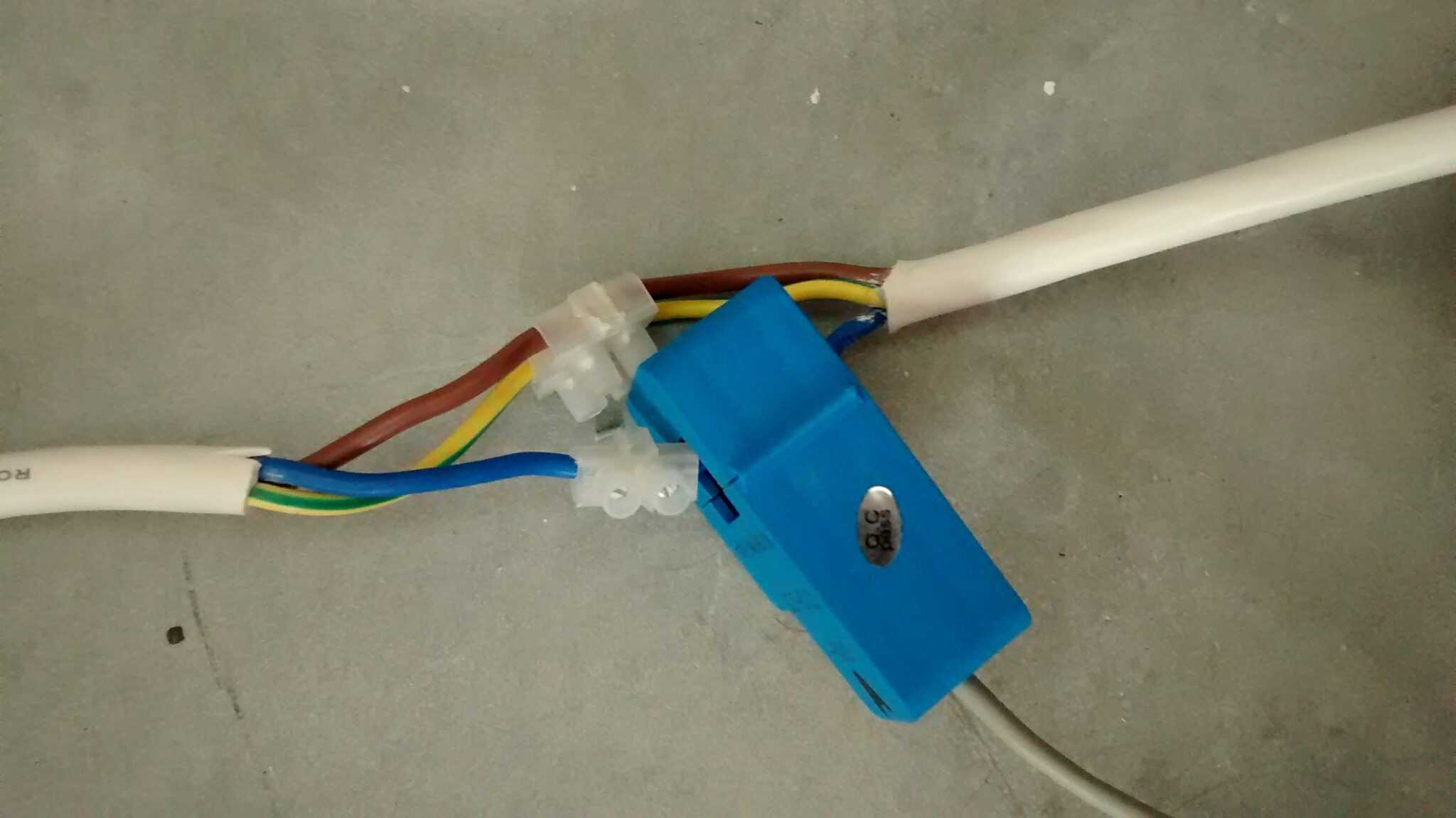

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications

• Suitable for the current measuring
• Monitoring and protection of AC motor
• Lighting equipment
• Air compressor

Specifications

• Rated input: 0-50A
• Rated output: 0-1V
• Accuracy: ±1%
• Linearity: ≤0.2%
• Turns ratio: 1:1800
• Work voltage: 660V
• Work frequency: 50-1KHz
• Operating temperature: -25..+70℃
• Storage temperature: -40..+85℃
• Dielectric strength: 3KV
• Fire resistance: UL94-V0
• Material of core: Ferrite
• Mounting type: Suspension
• Package Include:
• 1 x SCT-013-000 AC Current Sensor
