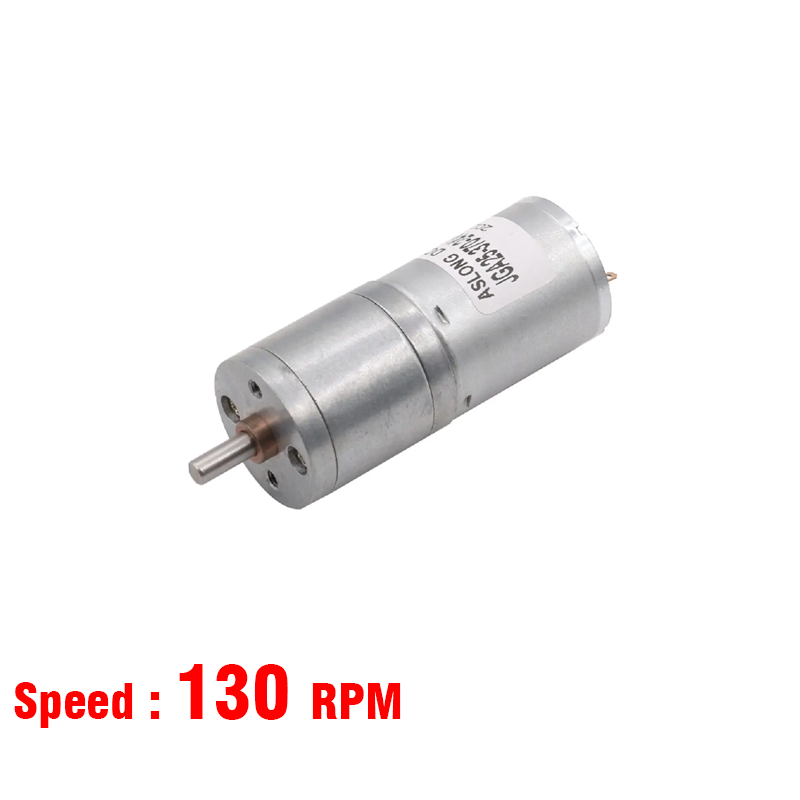

DC Gear Motor JGA25-370 (130RPM - 12V)

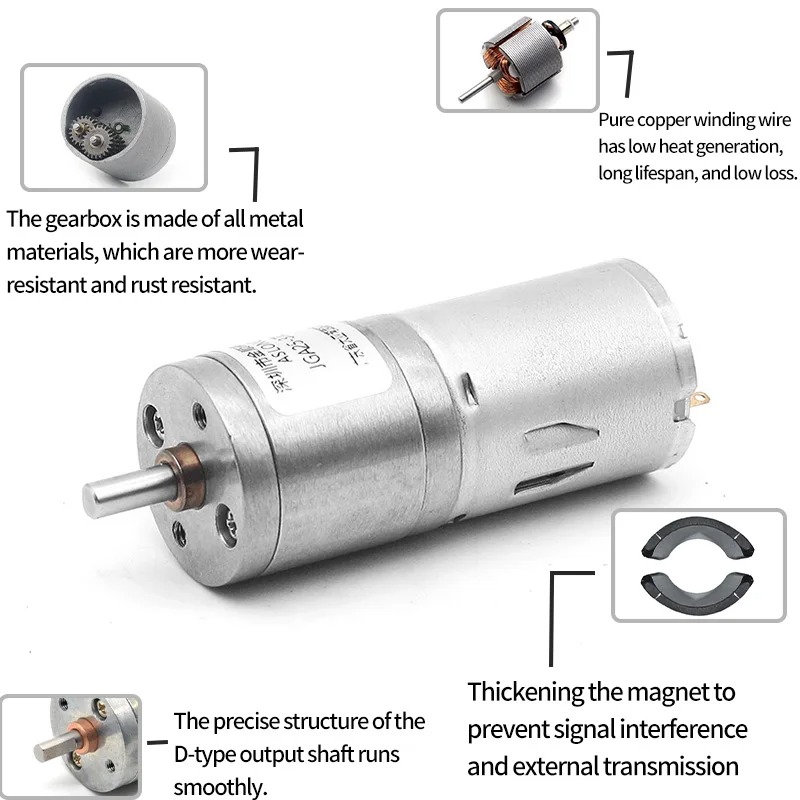

The JGA25-370 (12V - 130RPM) is a high-torque, brushed DC gear motor widely used in robotics, automation, and DIY electronics for its durability and compact size. It features an all-metal gearbox and a 4mm D-shaped output shaft, providing a balance of speed and torque suitable for medium-duty mechanical systems.

Key Specifications

• Operating Voltage: Nominal 12V DC (effective range typically 6V to 18V).
• Speed: 130 to 133 RPM no-load speed at 12V.
• Torque: Varies by manufacturer rating, typically cited between 4.4 kg·cm and 20 kg·cm stall torque.
• Current: No-load current of ~50mA to 100mA; stall current up to 1200mA.

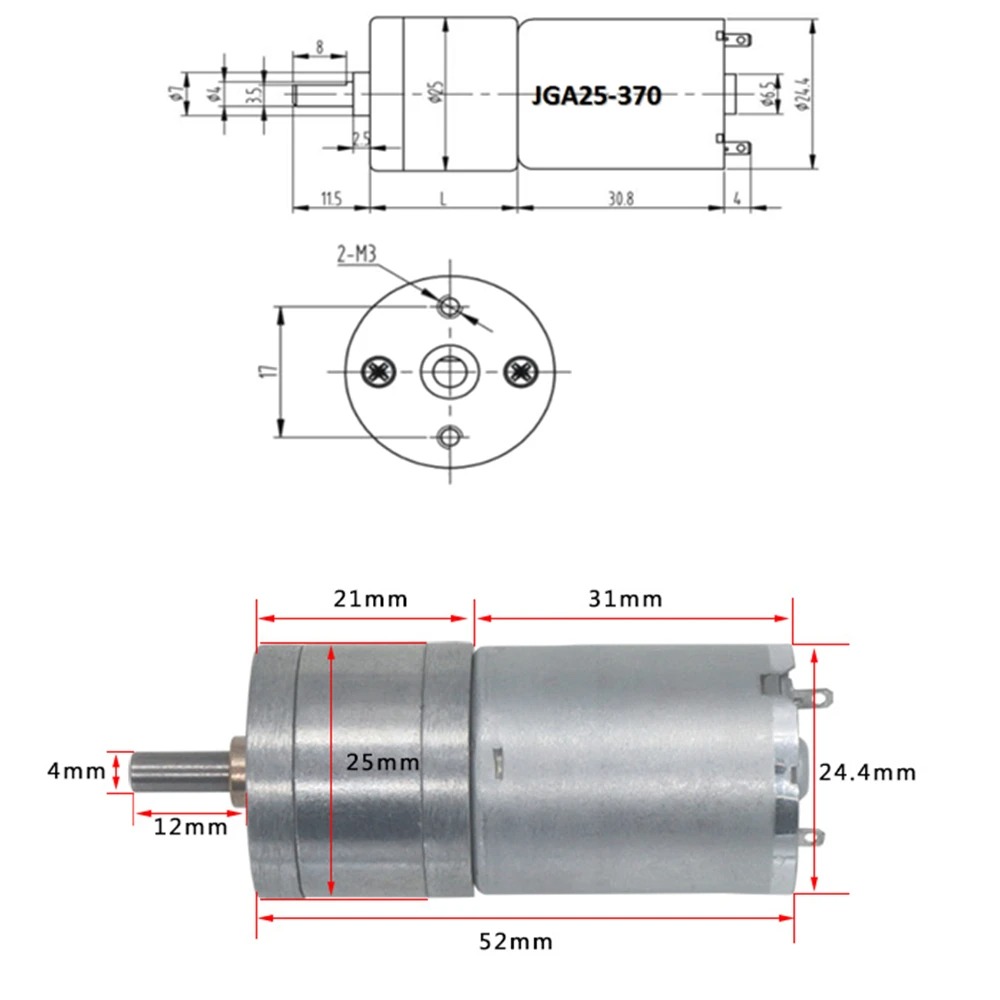

• Dimensions: Motor diameter is 24.4mm to 25mm.
• Shaft: 4mm diameter D-shape shaft for secure mounting of wheels or gears
