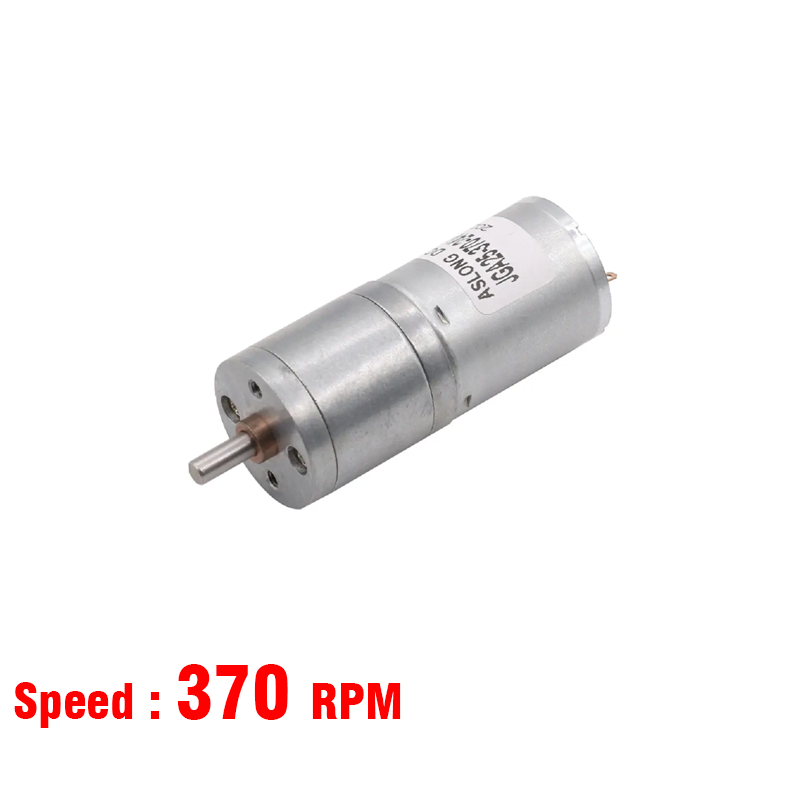

DC Gear Motor JGA25-370 (370RPM - 12V)

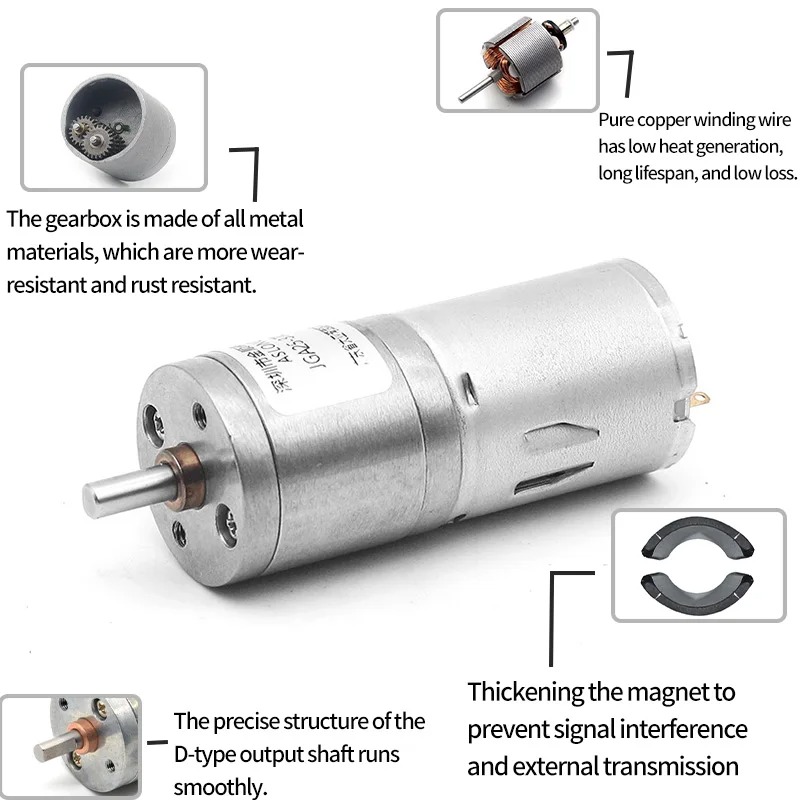

The JGA25-370 (12V - 370RPM) is a high-speed, high-torque brushed DC motor with a durable metal gearbox, ideal for robotics and automation projects requiring precision and speed. This 12V variant provides a robust balance of rotational velocity and mechanical power for applications like smart vehicles and robotic arms.

Key Specifications

• Operating Voltage: Nominal 12V DC (typically functional between 6V and 18V).
• Speed: 370 RPM no-load (similar configurations range from 300 to 400 RPM).
• Torque: Estimated between 5.6 kg·cm and 7.5 kg·cm based on speed-to-torque ratios in this series.
• Current: No-load current of approximately 50mA–70mA; stall current up to 1.2A–1.8A.

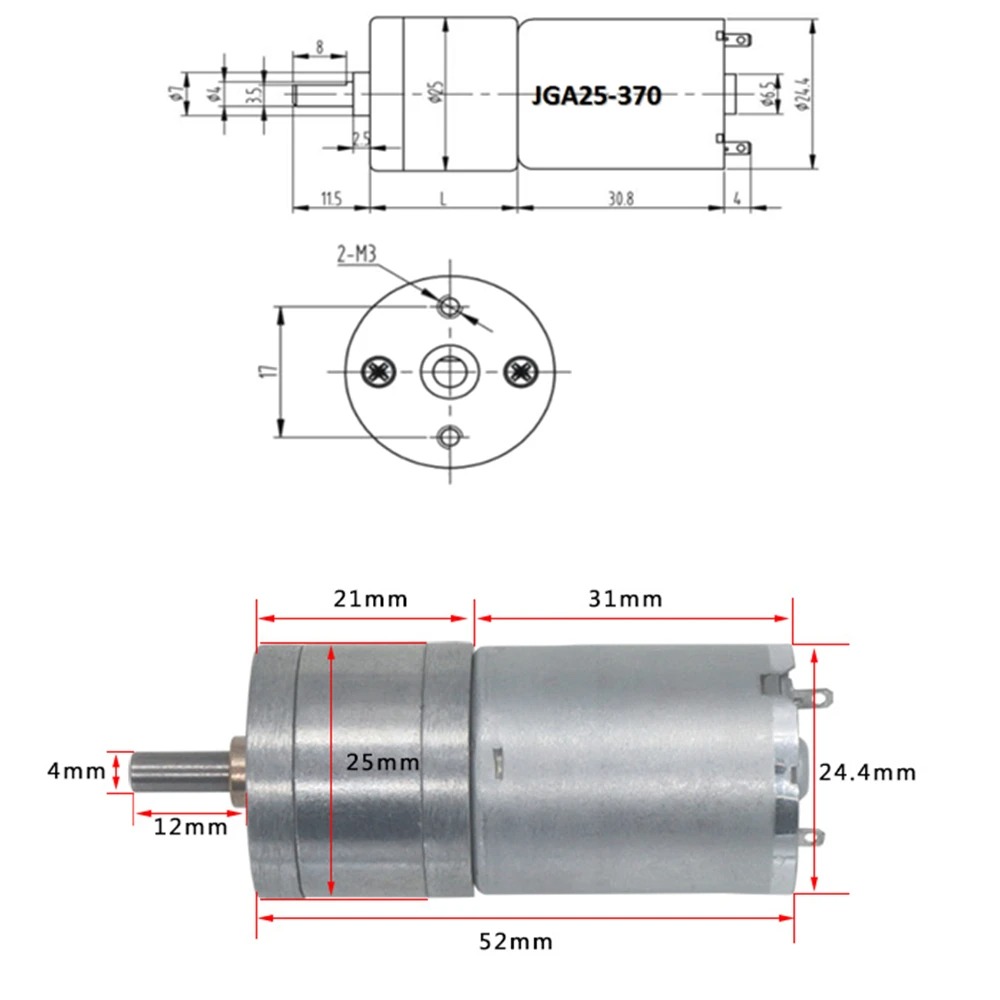

• Dimensions: Standard 25mm diameter motor body with a 4mm D-shaped output shaft.
