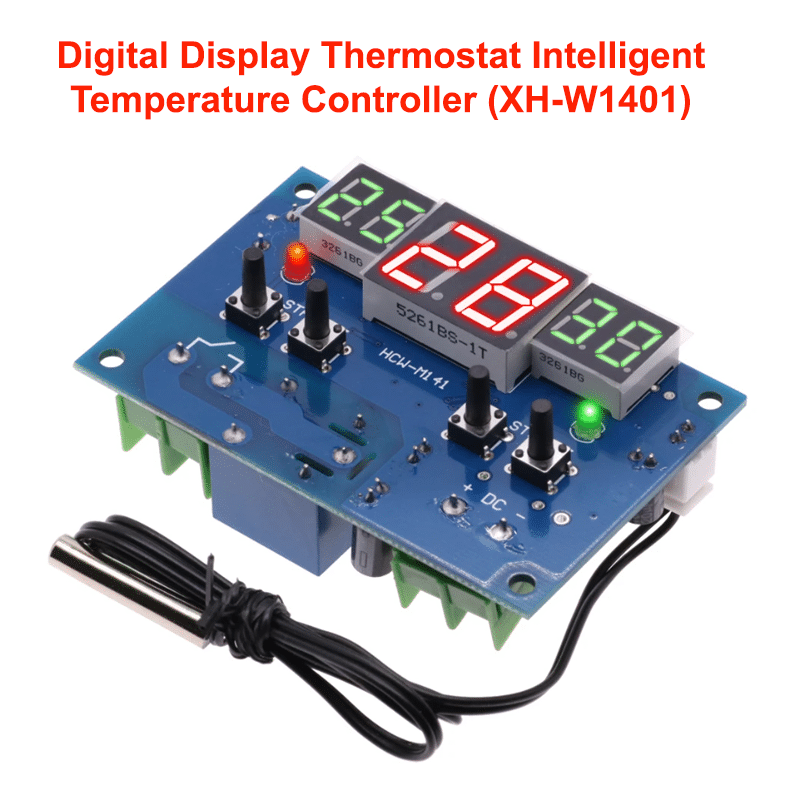

Name: Digital Display Thermostat Intelligent Temperature Controller (XH-W1401)
SKU: woo-29651
Price: 300 EGP
Availability: InStock

Description

Feature:

1. Imported high-speed single-chip microcomputer, precise and intelligent control

2. Three windows (start – real-time – stop) display + output status indicator, free control

3. Automatically judge heating and cooling according to set temperature

4. Setting range is wide -9°C~99°C

5. Used in various space temperature control, water temperature control, incubators, etc.

Description

XHW1401 DC12V digital display thermostat Intelligent temperature controller

Item type: Temperature Controller Model: 1401 Selection style: 12V Temperature measurement range: -9℃~99℃ Temperature measurement accuracy: 1℃ Temperature control accuracy: 1℃ Refresh rate: 0.5s Input voltage: DC-12V Environmental requirement: -10℃~60℃/Humidity 20%-85% Measurement of the input: NTC(3950-10K 1%)Waterproof sensor Output type: Relay output Display mode: Digital readout Size : 78 x 51 mm

Features:

High and low temperature display, three-view window. Power off memory function. Start high temperature-cooling mode: Set starting temperature value＞stop temperature value, relay close and cooling equipment start working when testing temperature≥starting temperature. Relay disconnect and cooling equipment stop work when detecting temperature≤Stopping temperature. For example:Set starting temperature at 30℃，stopping temperature at 25℃，when tested temperature ≥30℃, relay close and start indicator lamp (red) bright. When tested temperature ≤25℃, relay disconnecting and stop indicator lamp (green) bright. Start low temperature,heating mode: Set starting temperature ＜stop temperature, when detecting temperature ≤starting temperature，relay close and heating equipment start working. When detecting temperature≥stopping temperature, relay disconnect and heating equipment stop working. For example: Set starting temperature at 25℃, stop temperature at 30℃, when detecting temperature ≤25℃, relay close and start indicator lamp (red) bright. When detecting temperature ≥30℃, relay disconnect and stop indicator lamp (green) bright.

Note:

Start indicator: the START (red) indicator is on, indicating that the relay is closed and the device is working

Stop indicator: the STOP (green) indicator is on, indicating that the relay is off and the equipment has stopped working

Digital tube: The middle red digital tube shows the current detected temperature, the left green digital tube is the setting start temperature, and the right green digital tube is the set stop temperature
