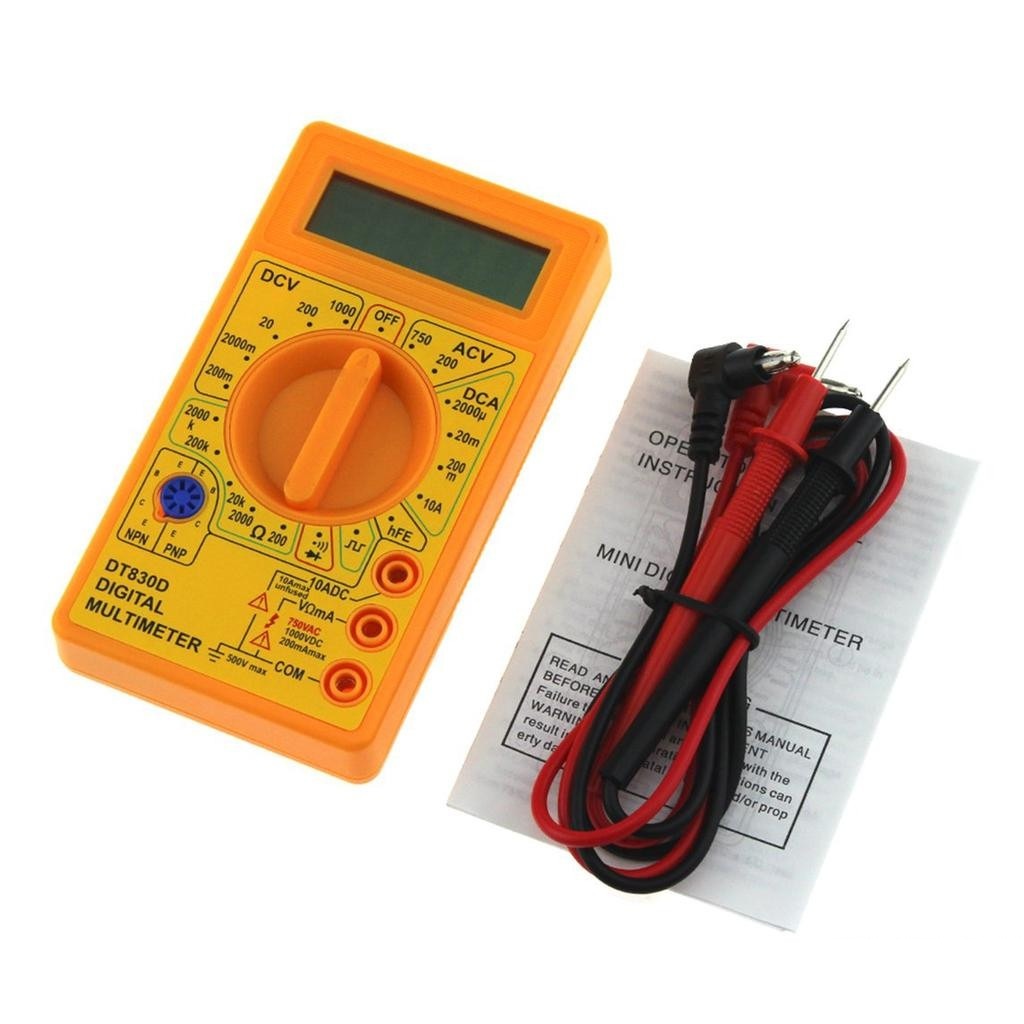

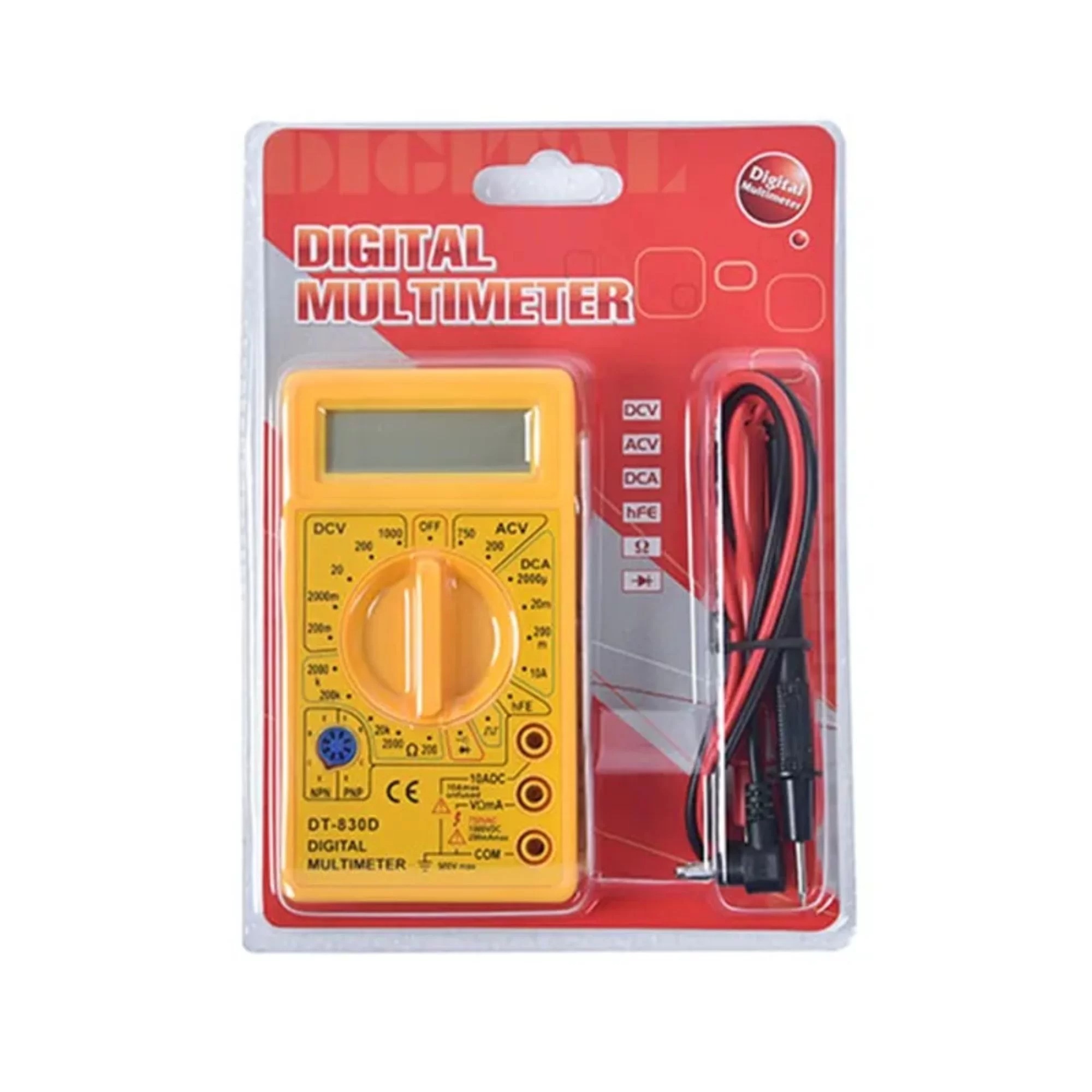

Digital Voltmeter / Multimeter DT-830D

Description

DT830D Mini Digital Multimeter voltmeter Voltage Ampere Ohm Tester Buzzer Overload protection Safety Probe DC AC multi Test

Feature:

Digital LCD display, maximum display 1999

Low battery indication

Max display: 1999

Overload Protection (0.5A/250V fuse, 10A no fuse)

Diode and transistor testing, continuity and buzzer measurement

With test probe leads, wide range of application

Come with buzzer, pocket and easy to carry, cost efficient

Specification:

Product Name : Digital Multimeter

DC Voltage Measuring Range : 200mV-1000V, Accuracy Level : ±(1.0%+2dgt)

AC Voltage Measuring Range : 200V-750V, Accuracy Level : ±(2.0%+10dgt)

DC Current Measuring Range : 200μA-200mA, Accuracy Level : ±(1.5%+2dgt)

Resistance Measuring Range : 200Ω-2000KΩ, Accuracy Level : ±(1.2%+2dgt)

Operating Instructions:

To avoid electrical shock hazard and/or damage of the instrument.Do not measure voltages that might exceed 500V above earth ground.

Before the use of instrument,inspect test leads,connectors and probes for cracks,or crazes in the insulation

Diode and Triode : YES

Power Supply : 9V.ONE Battery

Max. Display : 1999

Dimension : 122*67*21mm

Color : Yellow

Package Included

1 set DT830D
