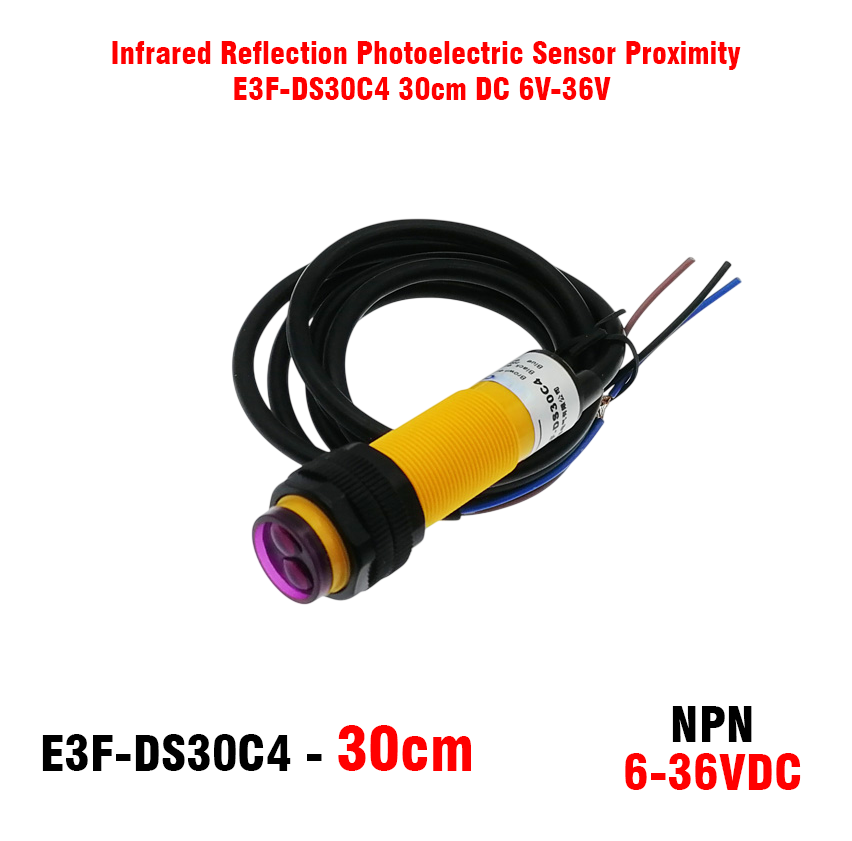

E3F-DS30C4 (30cm) Infrared Reflection Photoelectric Proximity Sensor - DC 6V-36V

Distance sensor E3F-DS30C4 NPN NO 0-30cm 6-36V

• type: E3F-DS30C4
• supply voltage:  6-36V
• current:  300mA
• adjustable measuring range:  0-30 cm
• range adjustment: multi-turn knob
• transistor: NPN
• channel:  NO
• response time:  <2 ms
• reverse polarity protection
• working temperature:  -25 ° C to +55 ° C
• diameter:  18 mm
• sensor length:  70 mm
• Cable Length : 110 cm
• type:  optical
• sensor housing:  M18
• number of pins:  3
• dimensions:  68 x 18mm
• signaling:  red LED
• adjustment system:  rotary potentiometer
• NO  ( Normal Open ) – (low state in case of – object detection, but not detected object – high state)
• output configuration: NPN / NO
• condition:  brand new

Connecting the wires:

• blue  – power  – (GND – ground)
• brown  – power supply  + (6-36V DC)
• black – output normally open NO (OUT)
•
