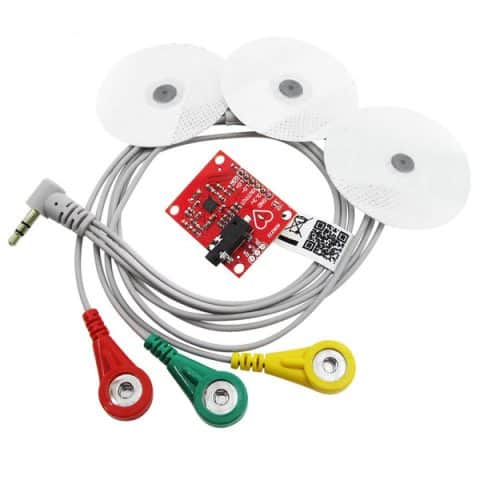

ECG Module AD8232 – Heart Rate (Pulse Rate) Sensor

Ecg module AD8232 measurement pulse heart (ecg monitoring sensor) module kit.

Product Description:

The AD8232 is an integrated front-end for heart rate monitoring of signal conditioning of cardiac bio-electric signals.
This is a low-power, single-lead heart rate monitor analog front-end for all types of vital signs monitoring applications.

Product Parameters:

• Supply voltage: DC 3.3V
• Output Type: Analog Output
• Output Interface: 2.54 pin or headphone jack
• Product Size: 36mm * 31mm * 18mm
• Operating temperature: -40 degrees Celsius to +85 degrees Celsius

Application:

• Fitness and sports heart rate monitoring
• Portable ECG
• Remote health monitor
• Game peripheral equipment
• Bio-electricity signal collection
