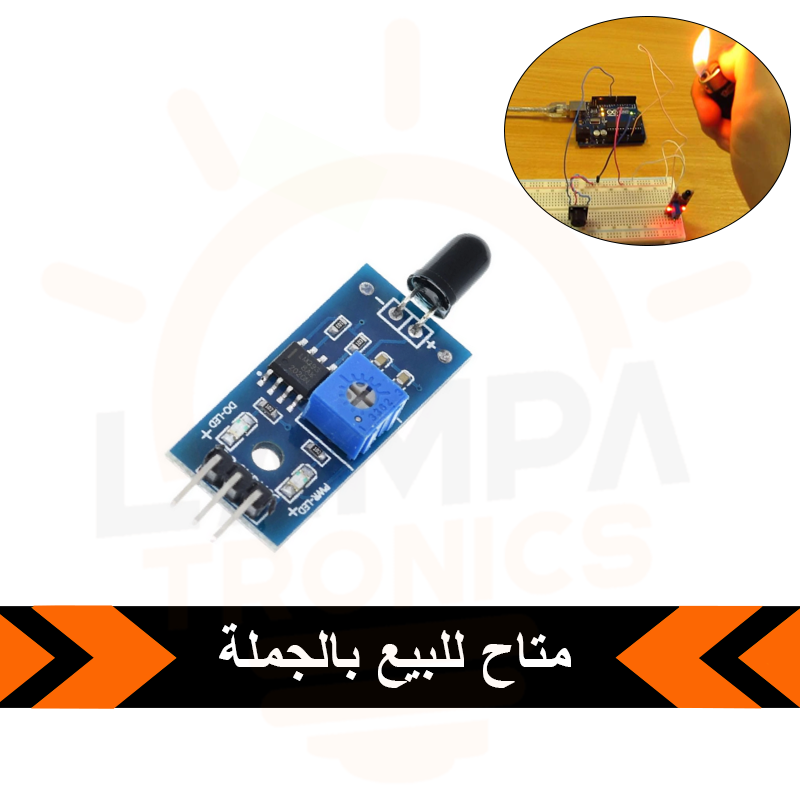

Flame Sensor Module 3Pin

Introduction

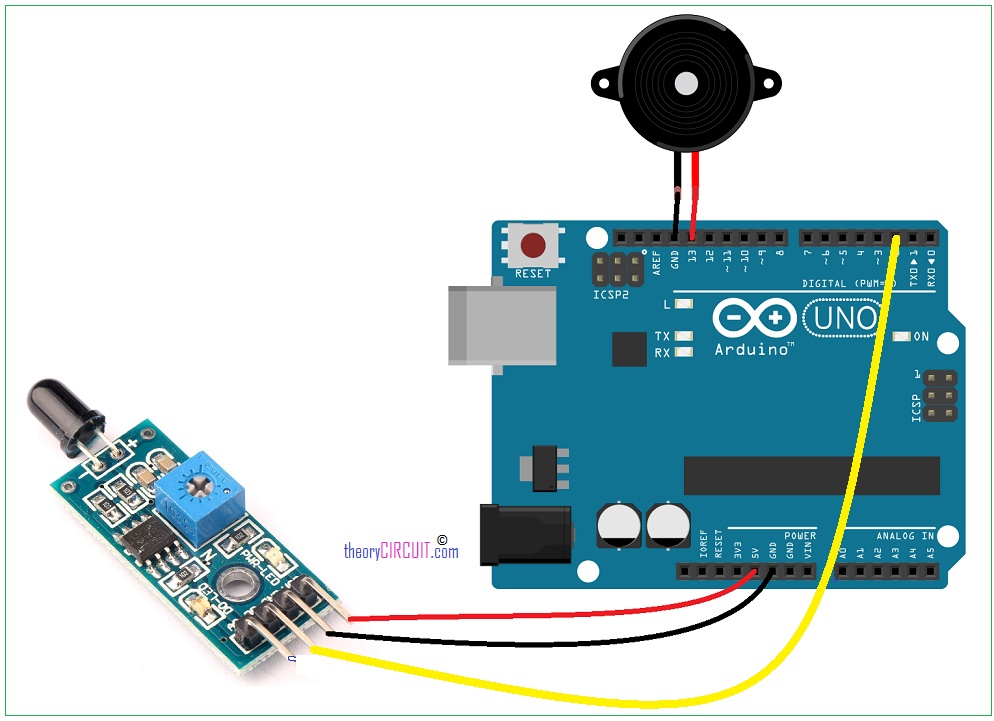

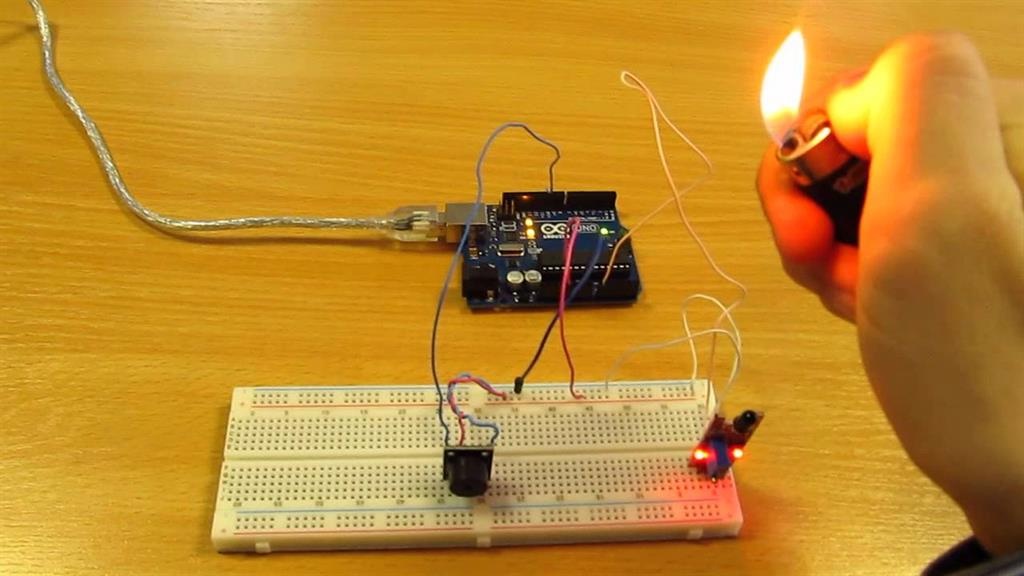

This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of of a wavelength 760nm-1100 nm. It can be used as a flame alarm or in fire fighting robots.

Features

• Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
• Detection range: up to 100 cm.
• Adjustable detection range.
• Detection angle about 60 degrees, it is sensitive to the flame spectrum.
• Comparator chip LM393 makes module readings stable.
• Operating voltage 3.3V-5V.
• Digital and Analog Output.
• Power indicator and digital switch output indicator.

Interface Description (4-wire)

            1 VCC -- 3.3V-5V voltage

2 GND -- GND

3 DO -- board digital output interface (0 or 1)

4 AO -- board analog output interface

​
