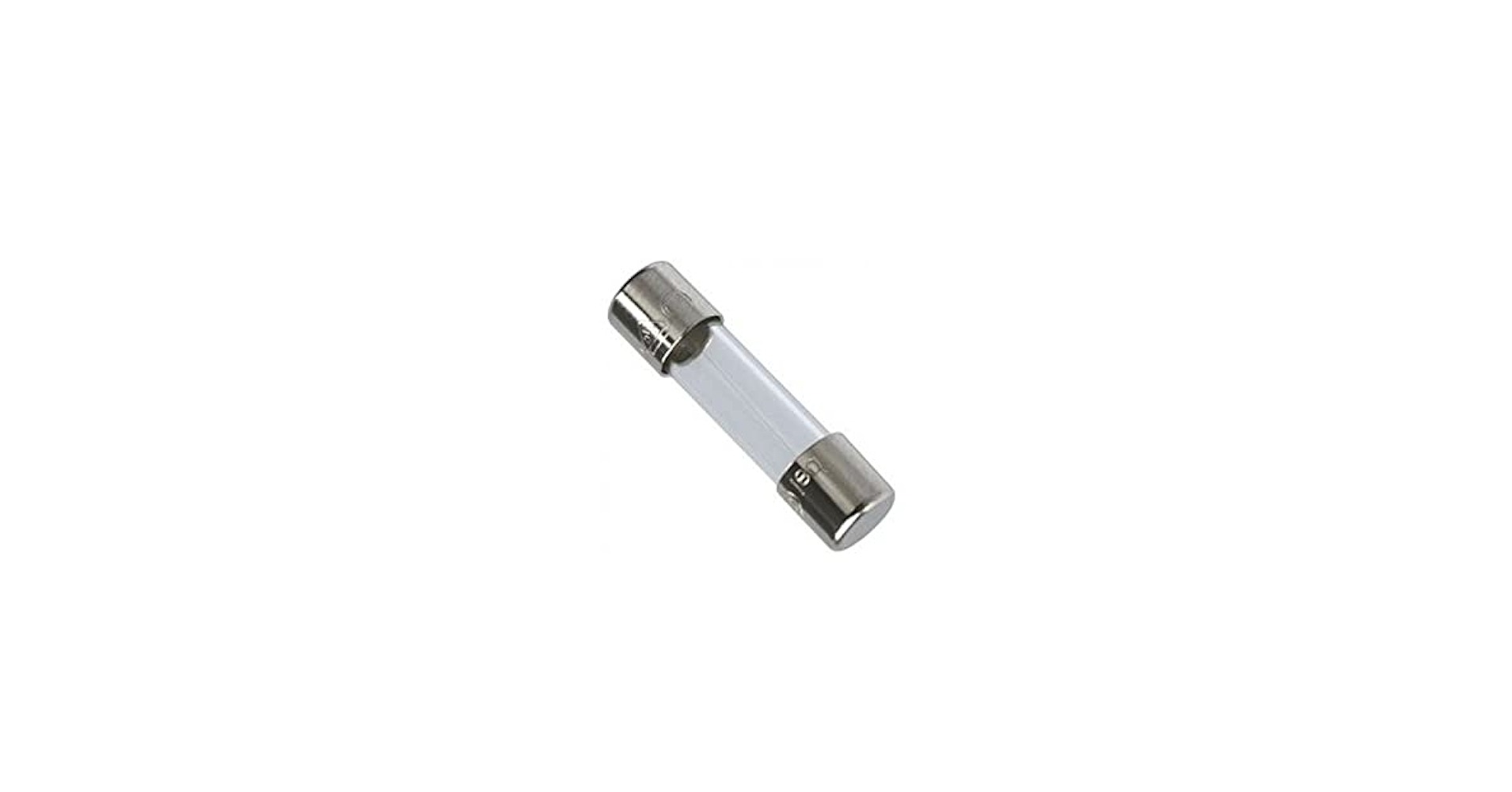

Glass Fuse 8A - 250V (Size T5x20mm)

Glass Fuse 8A - 250V (Size T5x20mm)

A Glass Fuse 8A - 250V (T5x20mm) is a safety component used to protect electrical circuits from overcurrent conditions. When the current flowing through the fuse exceeds the rated value (8A in this case), the fuse element melts, disconnecting the circuit and preventing damage to sensitive components. This particular fuse is commonly used in low to medium voltage circuits and is housed in a glass casing for easy visual inspection.

Key Features:

1. Current Rating:

• 8A (Amps) is the rated current for this fuse. It is designed to allow normal current flow up to 8 amps. If the current exceeds this value, the fuse will blow and disconnect the circuit.

1. Voltage Rating:

• The 250V rating indicates the maximum voltage the fuse can handle without breaking down or allowing electrical arcing. This fuse can safely operate in circuits with voltages up to 250 volts AC or DC.

1. Size and Dimensions:

• The T5x20mm size refers to the dimensions of the fuse. It has a 5mm diameter and is 20mm long, making it suitable for many standard electronic devices and appliances. The glass tube allows for easy visual inspection of the fuse element.

1. Glass Tube Construction:

• The fuse is housed in a glass tube for visual inspection. This allows users to easily check if the fuse has blown and needs replacing. Glass fuses also offer a compact and transparent housing for effective protection.

1. Type:

• T5x20mm is a standard fuse size widely used in household and industrial appliances. The "T" designates a cylindrical shape (often referred to as "tube fuses"), which is the most common form used for through-hole mounting.

1. Blow Time:

• Glass fuses like the 8A 250V fuse typically have a fast blow characteristic, meaning they will blow quickly when exposed to a significant overcurrent condition. This provides protection against sudden current surges.

1. Material:

• The fuse element is typically made from a metallic wire or alloy that melts when excessive current flows through it, breaking the circuit.

1. Certification and Safety:

• The fuse should meet safety standards like UL (Underwriters Laboratories) or CE (Conformité Européenne), indicating it has been tested for safety and reliability in electrical systems.

Specifications:

Specification Value Current Rating 8A Voltage Rating 250V Size T5x20mm Fuse Type Glass (Clear for visual inspection) Blow Type Fast Blow Temperature Range -55°C to 125°C Body Material Glass Typical Application Household appliances, electronics, power supplies, industrial equipment Certification UL, CE (typically) How the Glass Fuse Works:

A glass fuse works by utilizing a metal wire or filament inside the fuse housing. When the current exceeds the fuse's rated current (in this case, 8A), the wire inside the fuse heats up due to the excess current, eventually melting and breaking the circuit. The glass casing is transparent, allowing you to visually inspect whether the fuse has blown or not.

• Normal Operation: The current flows normally through the fuse without issue, as long as it remains under 8A.
• Overcurrent Situation: If the current exceeds 8A, the metal filament inside the fuse heats up and melts, breaking the circuit and disconnecting the power.
• Visual Inspection: Because the fuse is made of glass, you can see the broken filament inside the fuse tube and immediately know if the fuse has blown and needs replacement.
