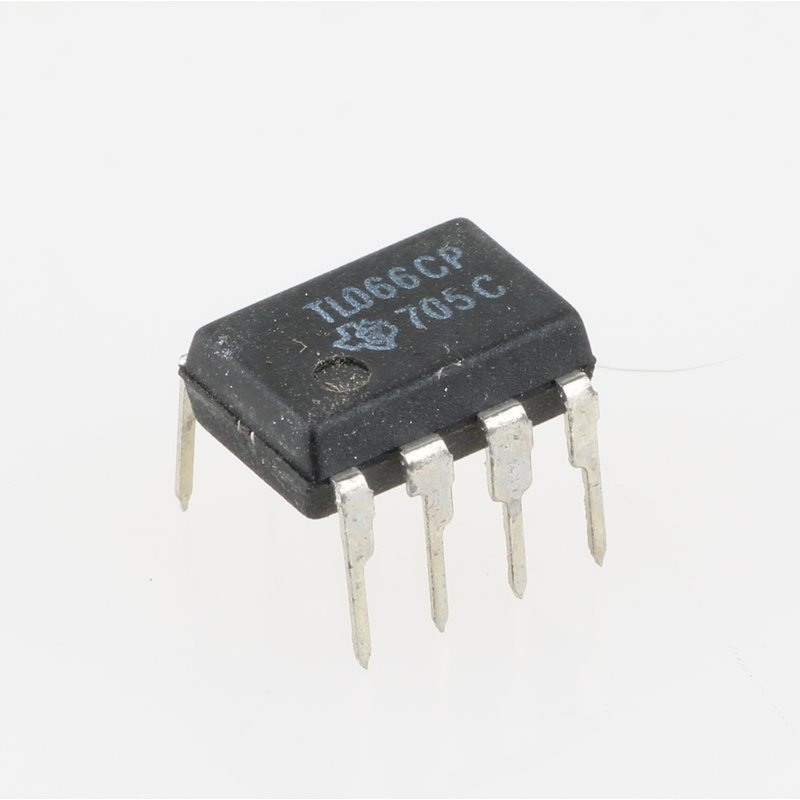

IC TL066CP (Adjustable Low-Power JFET-Input Operational Amplifier) DIP-8

TL066CP is an adjustable low-power JFET-input operational amplifier manufactured by Texas Instruments and others, primarily used in applications requiring high input impedance and very low power consumption. The "CP" in the part number indicates a commercial temperature range (0°C to 70°C) and a plastic DIP-8 package.

Key Features and Specifications

According to the Texas Instruments datasheet, the TL066CP offers a unique power-control feature, allowing the supply current to be adjusted via an external element, enabling it to operate with as little as 25 µW of power per amplifier.

• Amplifier Type: JFET-input operational amplifier.
• Power Consumption: Very low, adjustable supply current from approximately 5 µA to 200 µA.
• Input Impedance: High JFET input stage with high input impedance, typically 10¹² Ω.
• Slew Rate: A high slew rate, typically 3.5 V/µs.
• Supply Voltage: Wide operating supply range from ±1.2 V to ±18 V.
• Temperature Range: Characterized for commercial operation from 0°C to 70°C.
• Package: 8-pin plastic dual in-line package (PDIP).

Applications

The TL066CP's combination of low power consumption and high input impedance makes it ideal for interfacing with high-impedance sensors and for use in battery-powered applications.

• Active filters
• Sample-and-hold circuits
• Programmable gain amplifiers
• High-speed integrators
• Battery management systems

Datasheet:

https://www.datasheets360.com/pdf/5838849807067624676
