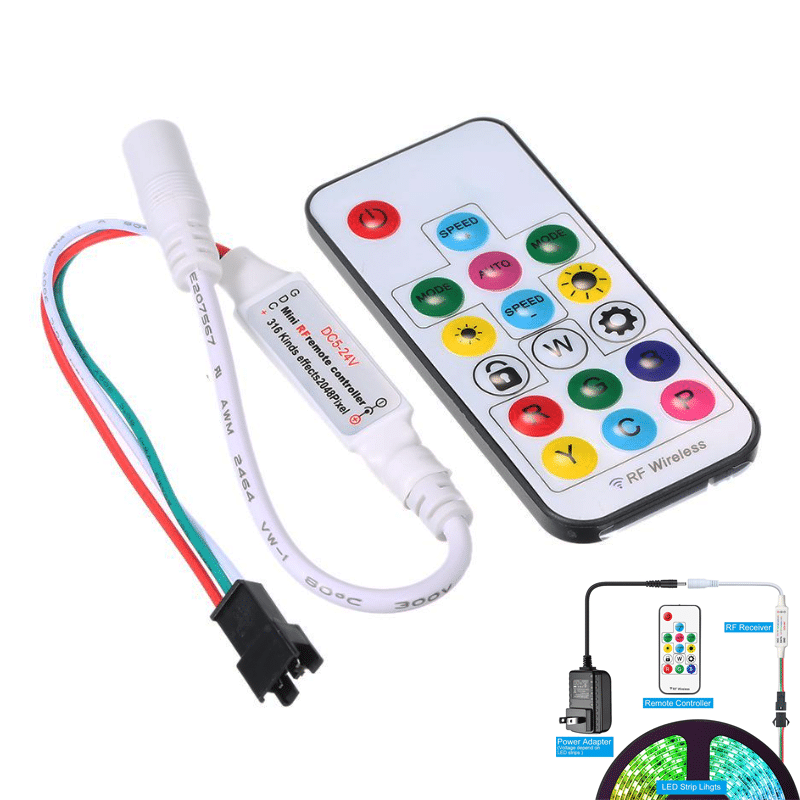

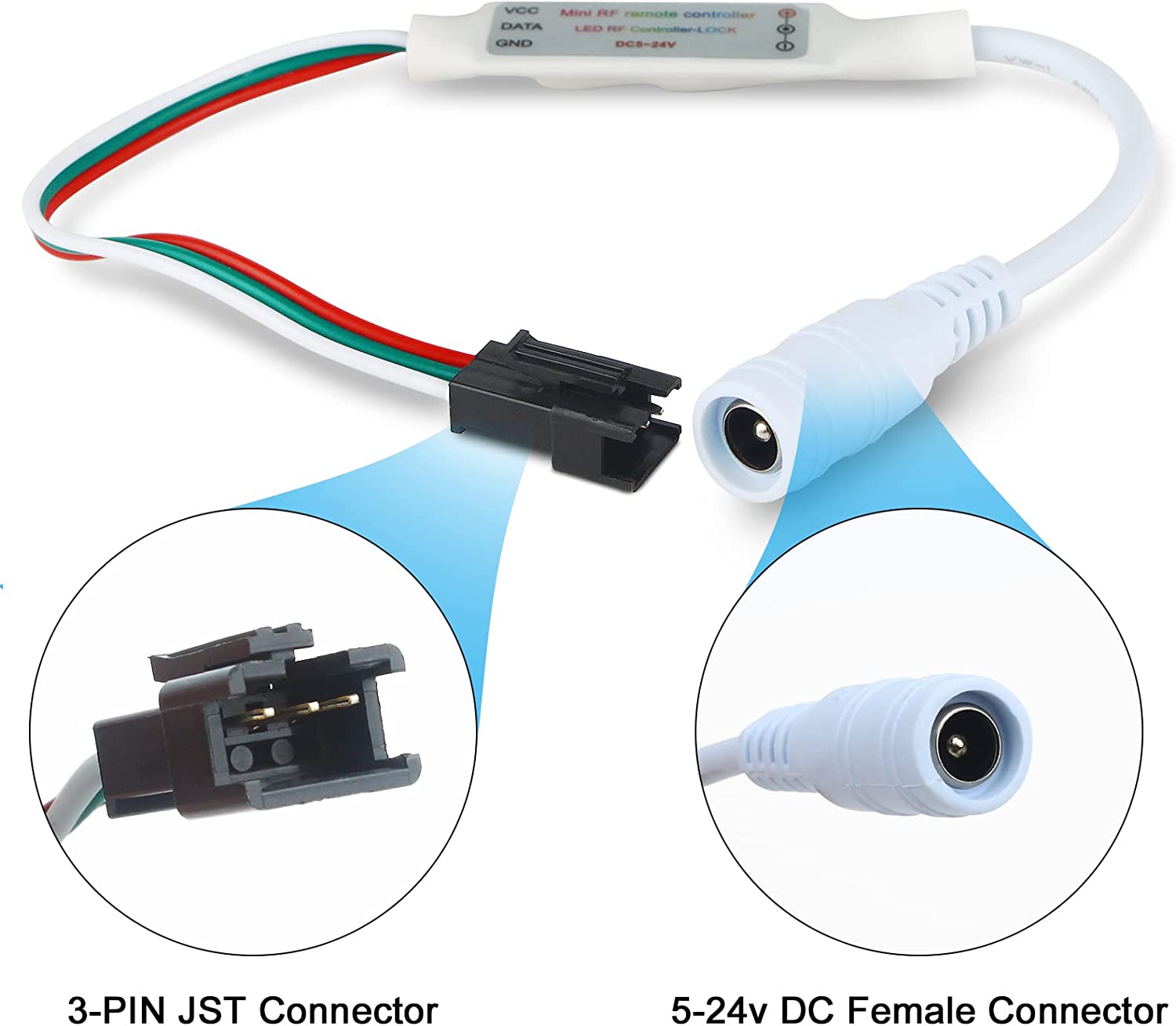

LED Dream-Color Controller 14 Key RF Remote For WS2811 WS2812 WS2812B LED Strip ( DC5V-24V )

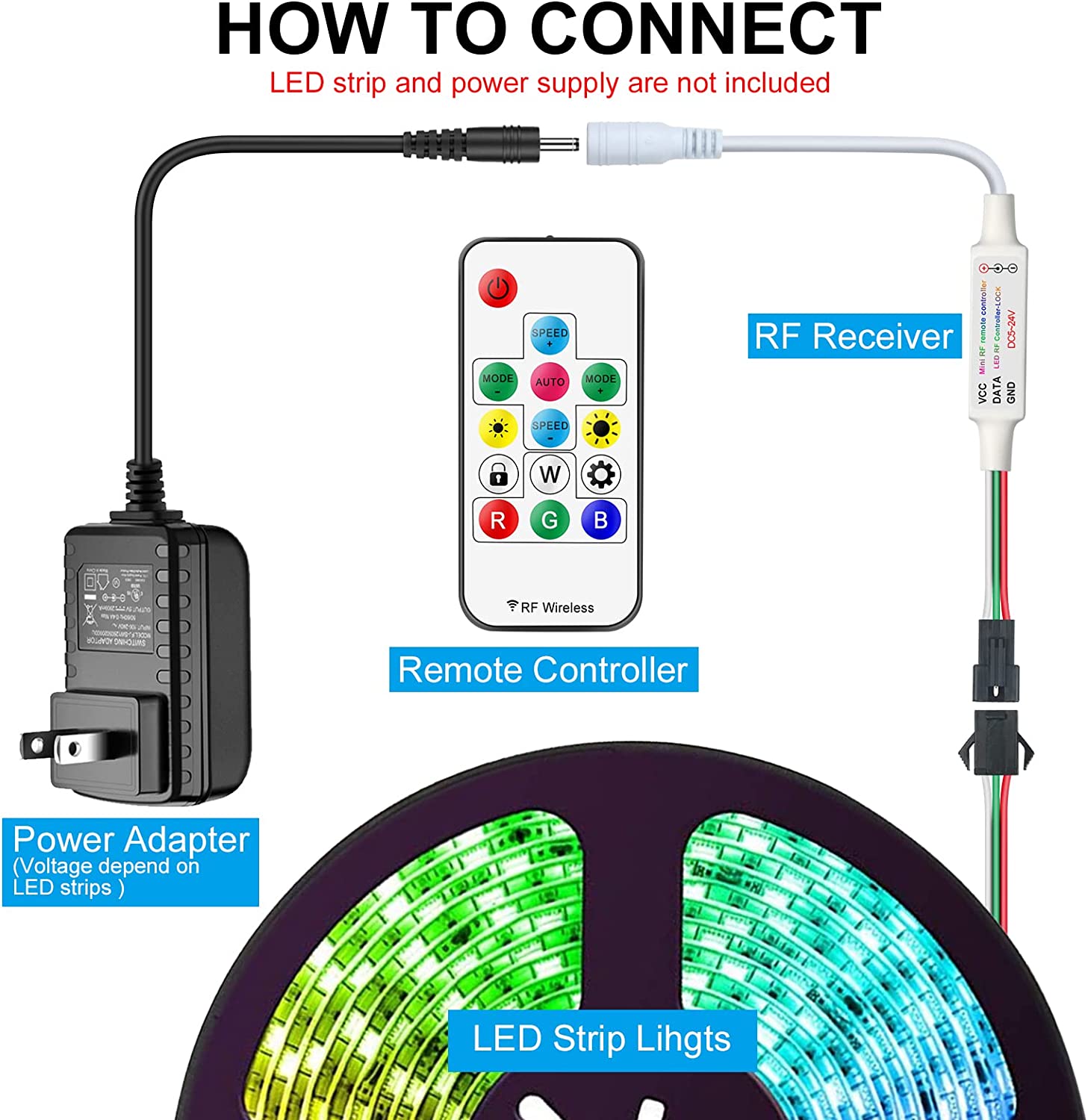

RGBZONE RF Wireless Remote LED Controller:

• Supply voltage: 5V-24V (wide voltage)
• Output power: 5V<30W, 12V<72W, 24V<144W
• Maximum load current < 6A
• Output : 3 way
• Static power consumption: <1W
• Maximum control points: 2048 points
• Controlled Method: RF remote control
• Remote control distance: 10-30M
• Operating temperature: -20-60℃

The controller has a power failure memory function, memory function records color or animation after turning the power off.

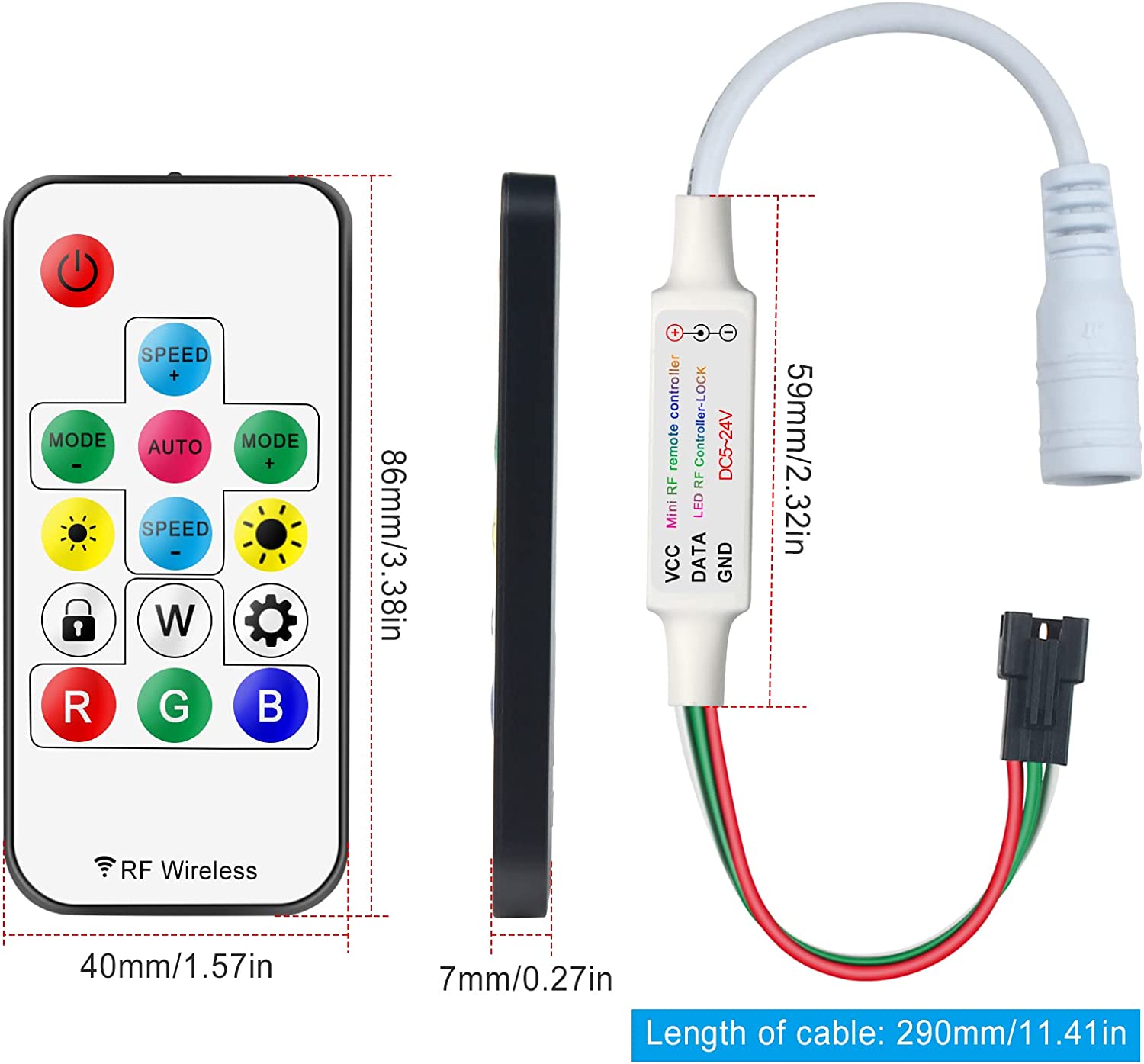

Instruction for using the 14 keys RF remote control:

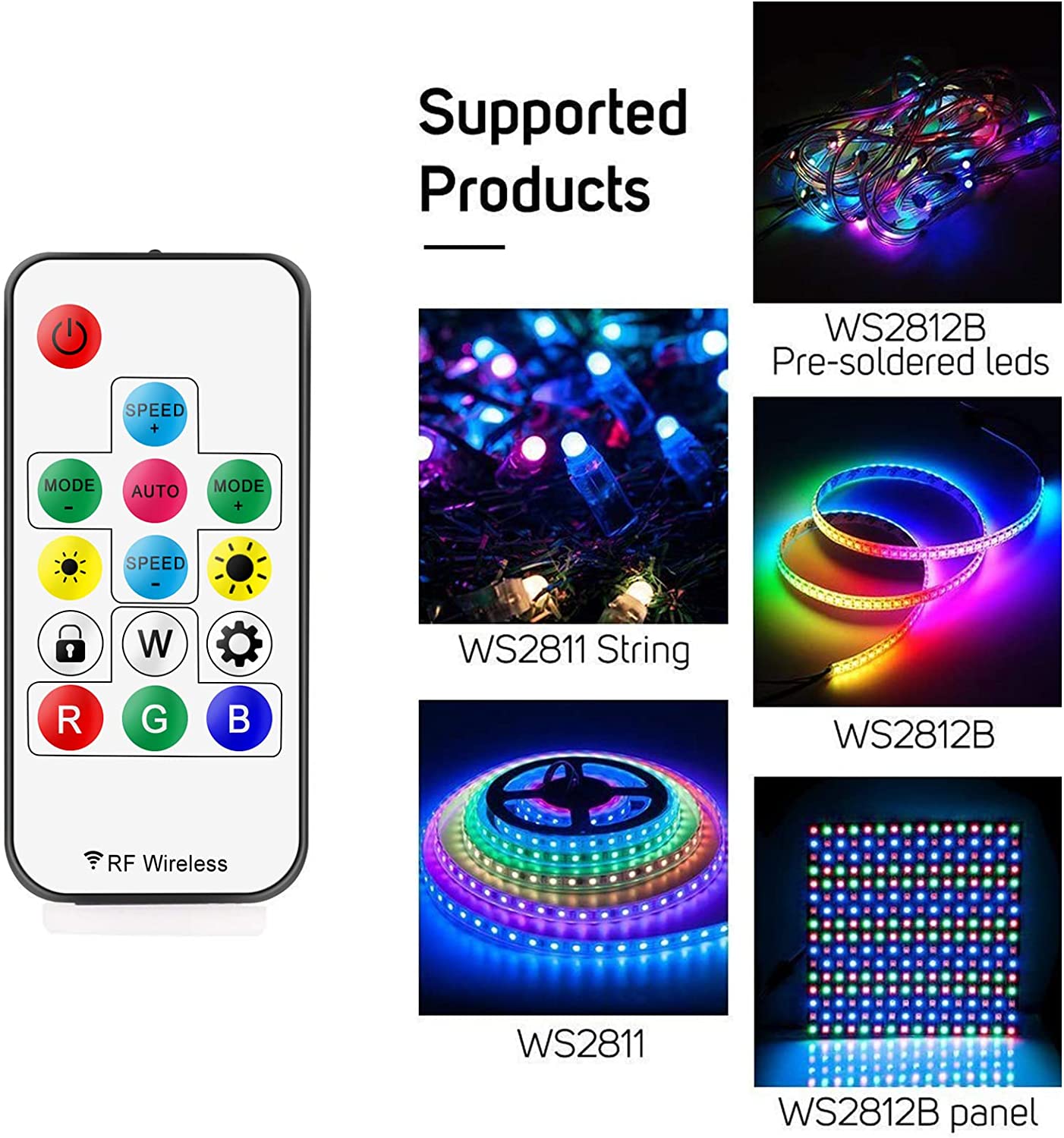

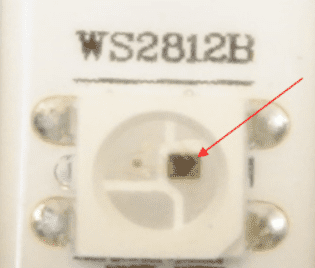

• Use for WS2811/WS2812B LED strip lights.
• 300 kinds of variations, you can program any combination of 16 and automatically play.
• 16 colors light selection Brightness adjustable 4 light pattern: Flash / Strobe /Fade-change / RGB Smooth-change.

If the controller displays the wrong colors, for example red button shows green, please don’t worry, it doesn’t mean the controller is defective. Resetting the R/G/B order again will resolve the issue.

Method of adjusting the order of R/G/B:

1. Press the SETTING button for 5 seconds.
2. Press the R button until LEDs turn red; press the G button until LEDs turn Green, press the B button until LEDs turn Blue.

How can I asjust it to control 2048 pixels?

***Maximum number of control pixels : Total 2048pixels. recommand use 300 pixel(Approx. 5 meters of light strip length.)

***The product itself can carry power 5V<30W, 12V<72W, 24V<144W, such as more than this power, please give the phantom light with a separate power supply, or with the use of amplifiers, otherwise it will lead to controller overload damage.

2048 pixel adjustment method：

1. press and hold for 5 seconds to enter the setup menu and press MODE + and MODE – to adjust the number of LED pixel points.
2. Only adjust 32 points each time.
3. Press the B button to adjust the RGB sequence until the color sequence of the first three lights is red, green and blue.

(Tips: If you want to adjust the pixel points from 300 to 2048, you need to press ‘MODE+’ key 54 times.)

Suitable scenarios：

Precautions in the use of controller products：

1.The remote control can’t control the controller properly：

Please troubleshoot the following points：

a). Whether the plastic isolation piece of the remote control is not unplugged (plastic isolation piece isolates the battery power supply)

b). Whether the remote control within 10-30M.

2. The controller is hot (burned out) & the light bar is burned out.

Please troubleshoot the following points.

a). Please ensure: Input voltage = output voltage (for example, DC5V WS2812B LED strip, must use DC5V power supply; DC12V WS2812B LED strip, must use DC12V power supply, for example, DC24V WS2812B LED strip, must use DC24V power supply) )

b). The power that can be carried by this product itself is 5V<30W, 12V<72W, 24V<144W, if it exceeds this power, please equip the light strip with a separate power supply or use it with an amplifier.

3. The light bar is slightly bright or only red light up.

Reason: incorrect voltage use, please keep in mind: Input voltage=output voltage (the use of voltage depends on the light bar you use)

4. If the effect is stuck or the end of the LED strip is progressively darker.

Reason: Please add voltage to the LED strip in time. This is a normal physical phenomenon, and all the LED strips cannot avoid this problem.

***I hope the above points can provide you with help in the use of the product.
