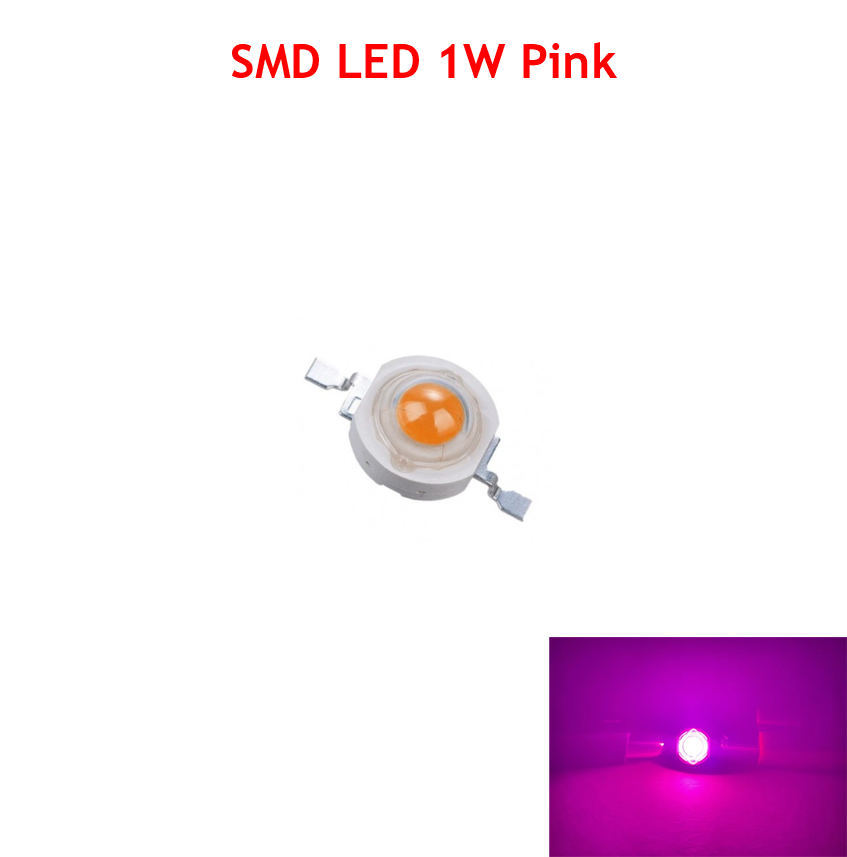

Led SMD 1W Pink - 2Pin

The Pink 1W 2-Pin SMD LED is a high-power diode used for specialty lighting, such as display indicators, automotive interior accenting, and plant growth supplementation. Unlike standard blue or white LEDs, the pink variant is often created using a blue LED chip coated with a specific phosphor to shift the light toward the pink/magenta spectrum.

Key Specifications

• Forward Voltage (Vf): Operates between 3.0V and 3.4V DC.
• Forward Current (If): Typically rated for 350mA for full 1W power.
• Luminous Flux: Produces between 100 and 110 lumens.
• Wavelength/Color: Often listed with a dominant wavelength of 440–450nm (referring to the base blue chip) or categorized by color temperature for phosphor-converted types.
• Viewing Angle: Standard broad dispersion of 120° to 140°.
