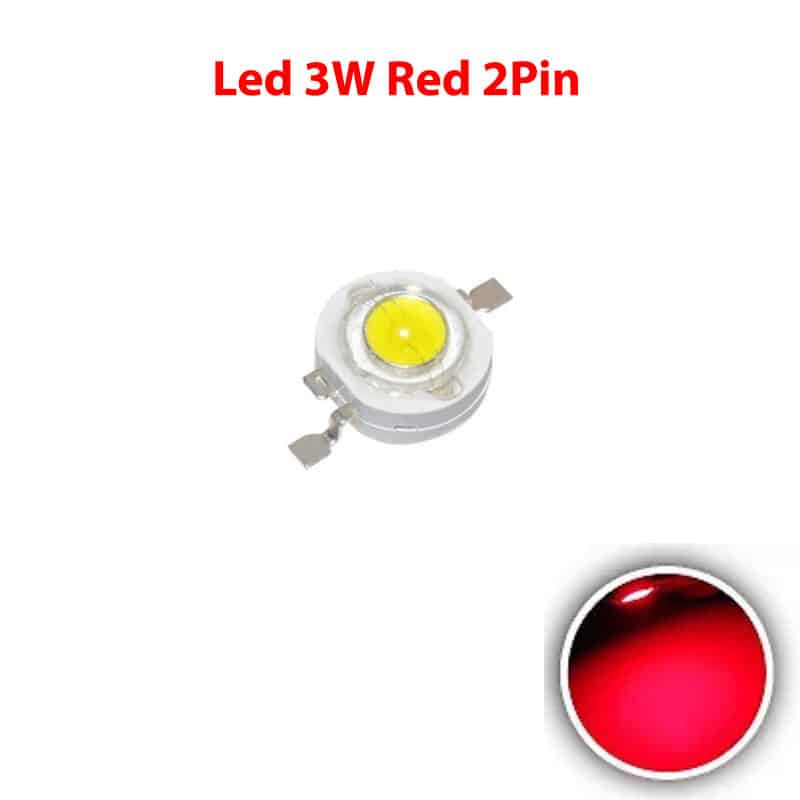

Led SMD 3W Red - 2Pin

The Red 3W 2-Pin SMD LED is a high-power light-emitting diode typically used in automotive lighting, high-intensity signals, and specialized grow lights. Due to its higher wattage, it produces significantly more heat than the 1W variants and requires a dedicated aluminum heatsink for safe operation.

Key Specifications

• Forward Voltage (Vf): Typically ranges between 2.2V and 2.6V DC. Note that some high-voltage "deep red" variants may reach up to 3.4V depending on the internal chip configuration.
• Forward Current (If): Rated for 700mA to achieve full 3W output.
• Luminous Flux: Produces between 50 and 80 lumens for standard red, while "deep red" specialized models can reach 260-280 lumens.
• Wavelength: Standard red is 620nm–630nm, while Deep Red (often used for plants) is 660nm–665nm.
• Viewing Angle: Wide beam angle of 120° to 140°.
