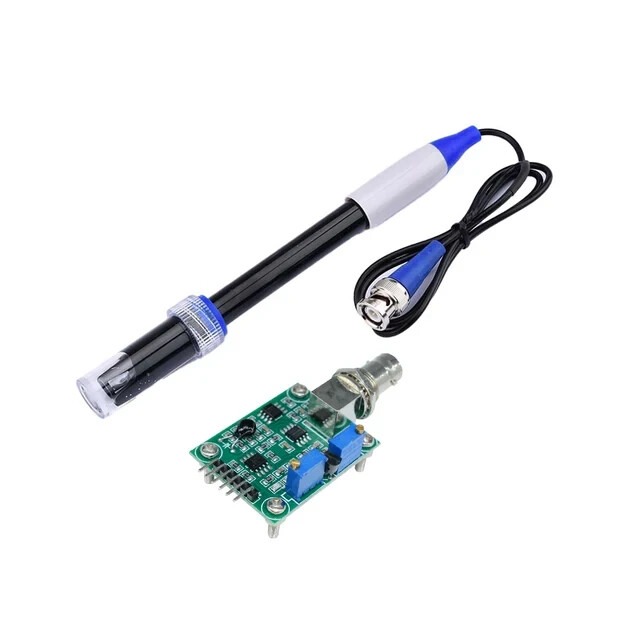

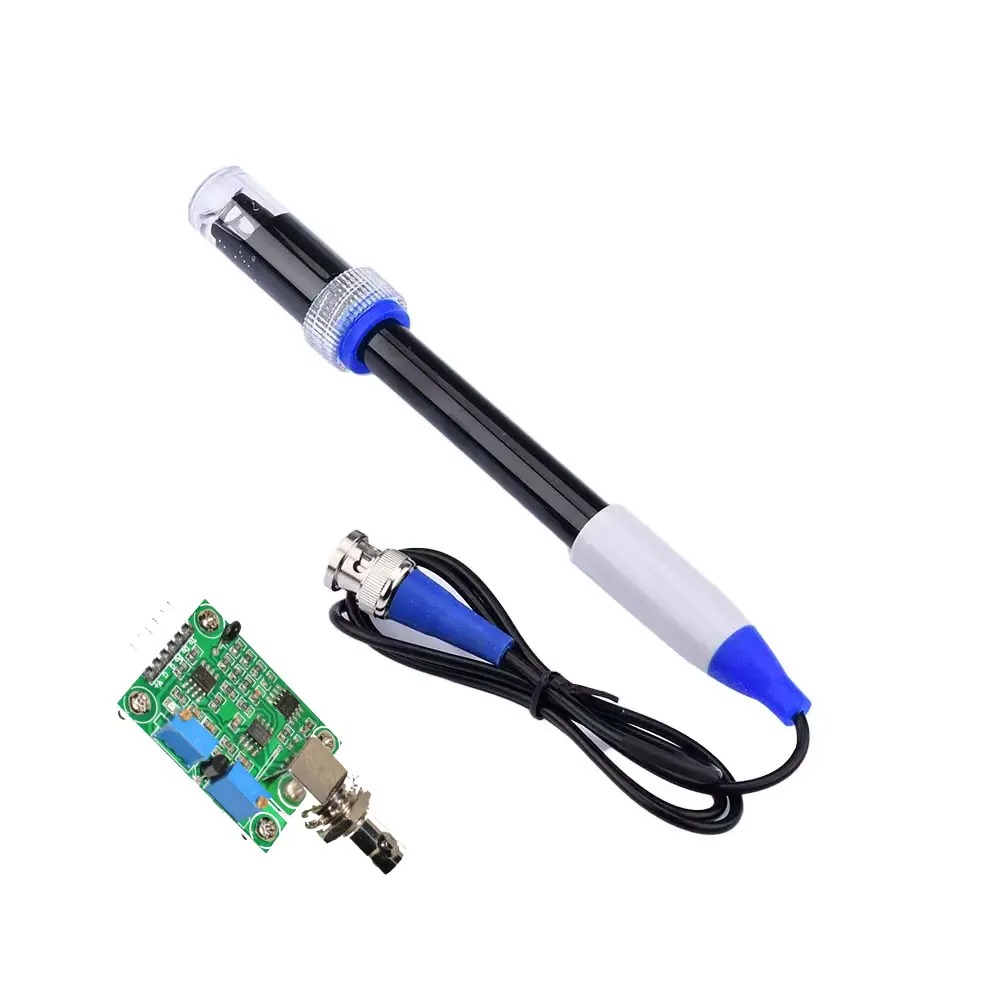

Liquid PH Sensor + BNC PH Electrode Probe Module (PH0-14)

Liquid PH Value Detection Sensor E-201 Ph0-14 With PH Electrode Probe BNC Monitoring Control Board

This is a Liquid pH Value Detection Sensor for Arduino. This is used in water quality testing and Aquaculture

The pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.

The PH electrode has a single cylinder that allows direct connection to the input terminal of a pH meter, controller, or any pH device which has a BNC input terminal. The pH electrode probe is accurate and reliable that can give almost instantaneous readings.

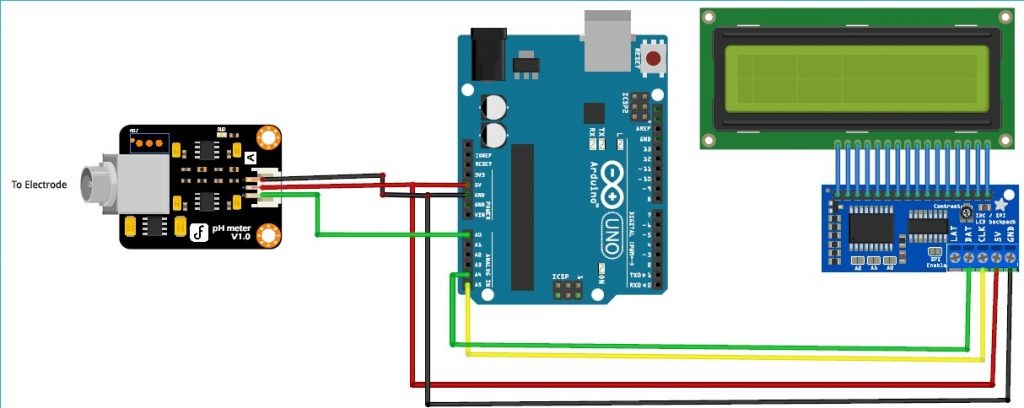

Connection Diagram of Liquid pH Value Detection Sensor for Arduino:

This is Electrode Probe for Liquid pH Value Detection Sensor Module. Need to measure water quality and other parameters but haven’t got any low-cost pH meter? Find it difficult to use with Arduino?

The electrode is made of a pH glass electrode and a reference electrode combined composite electrode, which is pH meter measuring sensor for measuring the concentration of an aqueous solution of H (pH value), it is widely used in various fields to be detected in the pH.

The PH electrode has a single cylinder that allows direct connection to the input terminal of a PH meter, controller, or any PH device which has a BNC input terminal. The PH electrode probe is accurate and reliable that can give almost instantaneous readings.

Features :

1. BNC Connector is suitable for most PH meter and controller.
2. Suitable for a wide range of application: Aquariums, Hydroponics, Laboratory, etc.

Specification of Electrode Probe :

pH Range0-14 pHOperating Temperature (°C)0 to 80Zero Point7±0.5 pHAlkali Error0.2 pHTheoretical Percentage Slope≧98.5%Internal Resistance≦250MΩResponse Time≦2minTerminal BlocksBNC plugTotal Probe Length (m)Approx 1mWeight (gm)56Shipment Weight0.07 kgShipment Dimensions24 × 4 × 4 cm

Specification of Liquid pH Value Detection Sensor:

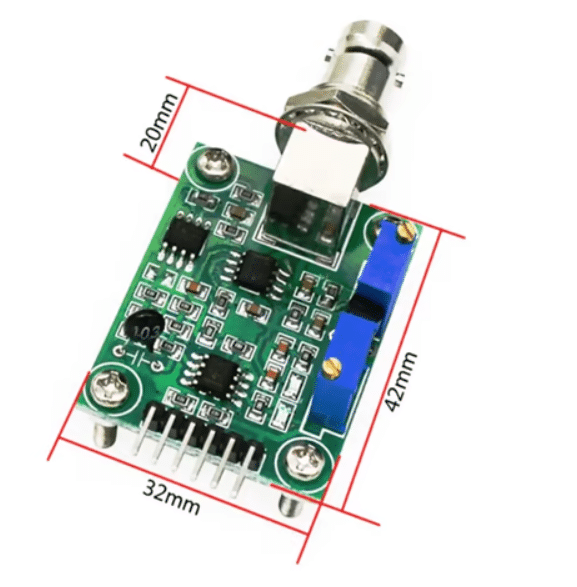

Heating Voltage (V)5±0.2Working Current (mA)5 to 10Detection Concentration RangePH0-14Detection Range of Temperature (°C)0 to 60Response Time (s)≤5Stability Time (s)≤60Power Consumption (W)≤0.5Operating Temperature (°C)-10 to 50Working Humidity (%RH)95PCB Size ( L x W ) mm42 x 32Height (mm)16Weight (gm)20Shipment Weight0.022 kgShipment Dimensions8 × 4 × 2.5 cm

Package Includes :

1 x Electrode Probe for Liquid pH Value Detection Sensor Module.

1 x Liquid pH Value Detection Sensor For Arduino

1 x set of Mounting Accessories
